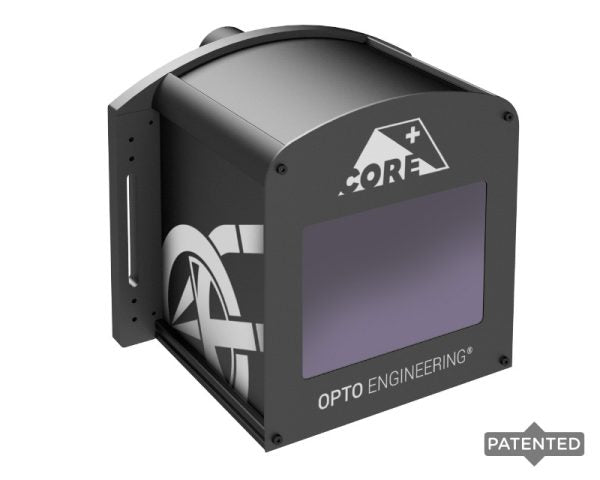

Opto Engineering TCCP23144 2/3″ f/8 217.4 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TCCP23144

Price:
Sale price$11,070.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering TCCP23144

TC CORE PLUS series are large FOV telecentric lenses for area scan cameras, specifically designed for the latest generation 1/1.8” and 2/3” CMOS sensors. Their optomechanical design is ideal for measuring large objects in a reduced space. TC CORE PLUS series are up to 40% shorter than other telecentric lenses available. Their patent-pending optical design, inspired by catadioptric telescopes, allows for large FOV imaging while keeping the overall footprint compact.

The length and working distance of a telecentric lens strongly impacts the size of a vision system. This is especially critical when a large FOV telecentric lens is used with a telecentric illuminator, as the overall system dimensions are doubled. For this reason, the working distance of TC CORE PLUS lenses has been optimized to make a measurement system as compact as possible. TC CORE PLUS lenses feature a built-in mounting flange for easy mounting without additional clamps, making their integration easy and cost-effective.

TCCP23144 Technical Specifications:

Product Line / Series TC CORE PLUS
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.059×
Image Circle Diameter Not Specified
Image Size Dimensions 8.93 x 7.45 mm
Imager Format 2/3″
Distortion Typical (%) < 0.8
Distortion Maximum (%) < 0.8
Residual Distortion (%) < 0.01
Phase Adjustment Yes
Telecentricity Typical < 0.06°
Telecentricity Maximum 0.1°
Working Distance 217.4 mm
Depth Of Field 120.6 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 86.6 μm
Mount C-Mount
Dimensions Approximate 321 x 303 x 332 mm
Weight 7206 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ 1/2.5″ 97.27 x 73.04 mm
FoV @ 1/2″ 109.22 x 81.91 mm
FoV @ 1/1.8″ 121.67 x 90.96 mm
FoV @ 2/3″ 145.05 x 120.99 mm
