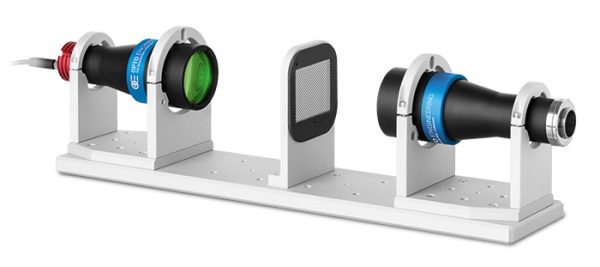

Opto Engineering TCBENCH064 2/3″ f/8 181.8 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TCBENCH064

Price:
Sale price$8,697.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 1/23/26. Pricing is subject to change and may fluctuate.

Opto Engineering TCBENCH064

TCBENCH series are complete optical systems designed for the hassle-free development of demanding measurement applications. The benches are ready for use, pre-assembled, and pre-aligned to ensure the best accuracy a telecentric measurement system can deliver. The collimated light source is set to optimize illumination homogeneity and relevant optical parameters such as distortion, telecentricity, and resolution. For this reason, these benches feature unmatched image resolution and depth of field.

Opto Engineering® measures the optical performance of each TCBENCH and provides an individual test report. TCBENCH series also benefits from a particular price policy, combining high-end performance with cost-effectiveness.

TCBENCH064 Technical Specifications:

Product Line / Series TCBENCH
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.138×
Image Circle Diameter 11 mm
Image Size Dimensions Not Specified
Imager Format 2/3″
Distortion Typical (%) < 0.03
Distortion Maximum (%) < 0.07
Phase Adjustment No
Telecentricity Typical < 0.05°
Telecentricity Maximum 0.08°
Working Distance 181.8 mm
Depth Of Field 21.7 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 37 μm
Mount C-Mount
Dimensions Approximate 845 x 143 x 161 mm
Front Diameter Not Specified
Weight 8700 Grams
Filter Thread No Filter Threads
Wavelength 520 nm
Light Color Green
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Supply Voltage 12 - 24 Volts
Power Consumption Maximum 2.5 Watts
LED Current 350 mA
LED Voltage 3.3 Volts
LED Voltage Maximum 4 Volts
Pulse Current Maximum 2000 mA
Operating Relative Humidity (%) 20-85 Non Condensing
Installation Location Indoor Use Only
Temperature Sensor No
Risk Group According To CEI EN 62471:2010 Exempt
FoV @ 1/2.5″ 41.30 x 31.01 mm
FoV @ 1/2″ 46.38 x 34.78 mm
FoV @ 1/1.8″ 1.67 x 38.62 mm
FoV @ 2/3″ 61.59 x 51.38 mm
