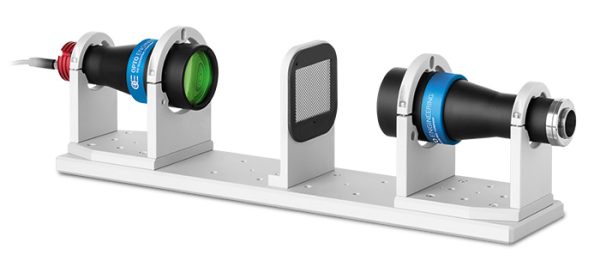

Opto Engineering TCBENCH048
TCBENCH series are complete optical systems designed for the hassle-free development of demanding measurement applications. The benches are ready for use, pre-assembled, and pre-aligned to ensure the best accuracy a telecentric measurement system can deliver. The collimated light source is set to optimize illumination homogeneity and relevant optical parameters such as distortion, telecentricity, and resolution. For this reason, these benches feature unmatched image resolution and depth of field.
Opto Engineering® measures the optical performance of each TCBENCH and provides an individual test report. TCBENCH series also benefits from a particular price policy, combining high-end performance with cost-effectiveness.
TCBENCH048 Technical Specifications:
| Product Line / Series | TCBENCH |
| Brand | Opto Engineering |
| Lens Type | Telecentric |
| IP Rating | Not Specified |
| Magnification | 0.184× |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | Not Specified |
| Imager Format | 2/3″ |
| Distortion Typical (%) | < 0.05 |
| Distortion Maximum (%) | < 0.1 |
| Phase Adjustment | No |
| Telecentricity Typical | < 0.08° |
| Telecentricity Maximum | 0.10° |
| Working Distance | 132.9 mm |
| Depth Of Field | 12.2 mm |
| Working ƒ/N | ƒ/8 |
| Resolution (Pixel Size) | 28 μm |
| Mount | C-Mount |
| Dimensions Approximate | 653 x 117 x 148 mm |
| Front Diameter | Not Specified |
| Weight | 5620 Grams |
| Filter Thread | No Filter Threads |
| Wavelength | 520 nm |
| Light Color | Green |
| Operating Temperature Range | 0 to 40°C |
| Storage Temperature Range | 0 to 50°C |
| Supply Voltage | 12 - 24 Volts |
| Power Consumption Maximum | 2.5 Watts |
| LED Current | 350 mA |
| LED Voltage | 3.3 Volts |
| LED Voltage Maximum | 4 Volts |
| Pulse Current Maximum | 2000 mA |
| Operating Relative Humidity (%) | 20-85 Non Condensing |
| Installation Location | Indoor Use Only |
| Temperature Sensor | No |
| Risk Group According To CEI EN 62471:2010 | Exempt |
| FoV @ 1/2.5″ | 30.98 x 23.26 mm |
| FoV @ 1/2″ | 34.78 x 26.09 mm |
| FoV @ 1/1.8″ | 38.75 x 28.97 mm |
| FoV @ 2/3″ | 46.20 x 38.53 mm |
