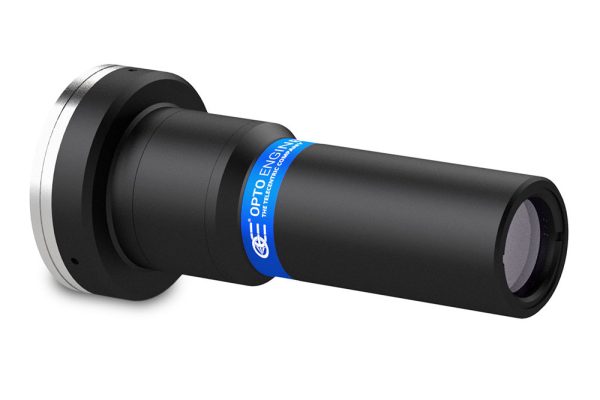

Opto Engineering TC4MHRP016-F 4/3″ f/16 43.1 mm F-Mount Telecentric Lens

Opto EngineeringSKU: TC4MHRP016-F

Price:
Sale price$2,130.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering TC4MHRP016-F

TC4MHR series features high-resolution telecentric lenses designed for sensors up to 4/3′′ and is the perfect choice for advanced metrology applications. Our TC4MHR series ensures unmatched resolution, low distortion, and homogeneous image quality while offering the best performance-to-price ratio.

TC4MHR lenses feature a compact and robust design allowing easy industrial integration. Additionally, the set screws in the eyepiece part will enable you to adjust the camera phase easily.

TC4MHRP016-F Technical Specifications:

Product Line / Series TC4MHR
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 1.054×
Image Circle Diameter 22 mm
Image Size Dimensions Not Specified
Imager Format 4/3″
Distortion Typical (%) < 0.05
Distortion Maximum (%) < 0.1
Phase Adjustment Yes
Telecentricity Typical < 0.07°
Telecentricity Maximum 0.10°
Working Distance 43.1 mm
Depth Of Field 0.7 mm
Working ƒ/N ƒ/16
Resolution (Pixel Size) 10 μm
Mount F-Mount
Dimensions Approximate 140.3 x 37. x 37.7 mm
Front Diameter 37.7 mm
Weight 497 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ 1″ 13.46 x 7.13 mm
Fov @ 1.1″ 13.43 x 9.84 mm
FoV @ 4/3″ 17.96 x 10.07 mm
