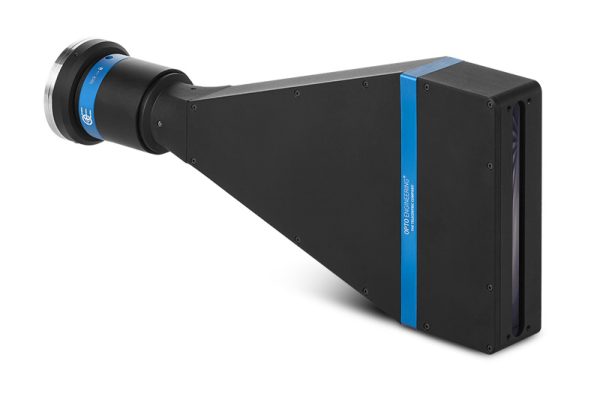

Opto Engineering TC4K120-F 4K f/16 174 mm F-Mount Telecentric Lens

Opto EngineeringSKU: TC4K120-F

Price:
Sale price$5,400.00 USD

Shipping calculated at checkout

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering TC4K120-F

Flat telecentric lenses for 4k line scan sensors. TC4K series telecentric lenses have been designed for measurement applications using line scan cameras with a detection size of up to 28.7 mm (e.g., 4096 pixels with pixel size of seven μm). Dimensional constraints are often a significant issue when designing image scanning systems where the sample or the camera must be moved: TC4K series is the Opto Engineering® solution for applications and machines with tight dimensional constraints. Compatible LTCL4K illuminators with matching flat design and dedicated accessories allow for optical combinations that fit most geometrical measurement configurations.

TC4K series feature standard F or M42 mount to fit common line scan camera interfaces; additional mounts are available upon request. Moreover, the lens-camera interface provides fine detector phase adjustment and a precise focusing mechanism. Detector phase adjustment allows to exact position of the linear FOV at 90° from the object movement direction.

TC4K120-F Technical Specifications:

Product Line / Series TC4K
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.24×
Image Circle Diameter 28.7 mm
Image Size Dimensions Not Specified
Imager Format 4K
Distortion Typical (%) < 0.08
Distortion Maximum (%) < 0.1
Phase Adjustment Yes
Telecentricity Typical < 0.1°
Telecentricity Maximum 0.12°
Working Distance 174 mm
Depth Of Field 29.2 mm
Working ƒ/N ƒ/16
Resolution (Pixel Size) 42 μm
Mount F-Mount
Dimensions Approximate 337.3 x 144 x 64 mm
Front Diameter Not Specified
Weight 1935 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
Line 2k-5µm 59.75 mm
Line 2k-7µm 85.33 mm
Line 4k-5µm 119.46 mm
Line 4k-7µm 42.67 mm
