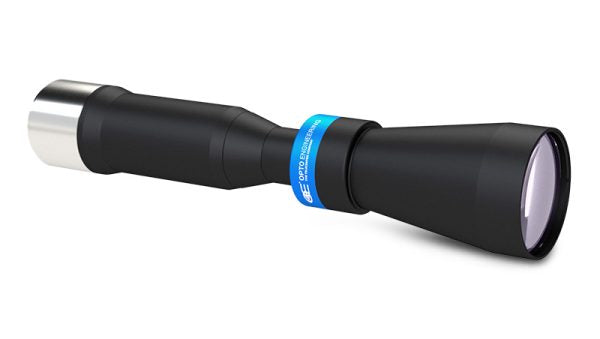

Opto Engineering TC16M056-Q 35mm Full Frame f/16 148.6 mm M58-Mount Telecentric Lens

Opto EngineeringSKU: TC16M056-Q

Price:
Sale price$5,110.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 1/23/26. Pricing is subject to change and may fluctuate.

Opto Engineering TC16M056-Q

Telecentric lenses for sensors up to 43.3 mm and 8k line scan cameras. TC16M series telecentric lenses have been specifically designed to fit 45 mm format (36 x 24 mm) detectors with very high resolution, such as 11, 16, or 29 MP. This combination is the typical choice for accurately measuring large items such as engine parts, glass or metal sheets, PCBs and electronic components, LCDs, and more.

TC16M lenses are also perfectly suitable for 4kpx and 8kpx line scan cameras and can be successfully used to determine the diameter of cylindrical objects: for example, shafts, turned metal parts, and machine tools.

TC16M056-Q Technical Specifications:

Product Line / Series TC16M
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Working ƒ/N ƒ/16
Image Circle Diameter 43.3 mm
Image Size Dimensions Not Specified
Imager Format 35mm Full Frame
Magnification 0.641×
Distortion Typical (%) < 0.04
Distortion Maximum (%) < 0.1
Phase Adjustment No
Telecentricity Typical < 0.04°
Telecentricity Maximum 0.08°
Working Distance 148.6 mm
Depth Of Field 3.2 mm
Resolution (Pixel Size) 16 μm
Mount M58-Mount
Dimensions Approximate 378.5 x 80 x 80 mm
Front Diameter 80 mm
Weight 1238 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ Full Frame 56.16 x 37.44 mm
Line 8k-5µm 63.65 mm
APS-C IMX342 34.88 x 26.16 mm
CHR70M 48.36 x 34.31 mm
CMV50000 56.84 x 43.09 mm
