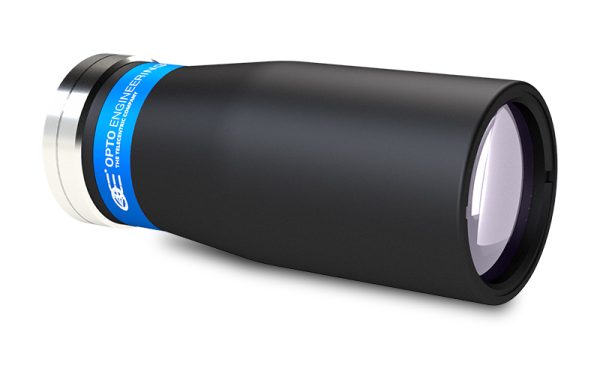

Opto Engineering TC13024
Bi-telecentric lenses for sensors up to 2/3”. TC series bi-telecentric lenses represent the critical component of any measurement system powered by machine vision: these lenses can genuinely take advantage of high-resolution sensors such as 5 MP - 2/3″, acquiring images with exceptional fidelity and precision.
The Opto Engineering® bi-telecentric design makes these optics truly telecentric: no magnification change occurs when an object is moved closer to or away from the lens, making the TC series ideal for measurement applications of mechanical parts ranging from extruded aluminum profiles to tiny clock gears. No other lenses can offer the same optical performances regarding telecentricity and distortion. All TC lenses are rigorously tested and supplied with a detailed test report.
TC13024 Technical Specifications:
Product Line / Series | TC |
Brand | Opto Engineering |
Lens Type | Telecentric |
IP Rating | Not Specified |
Magnification | 0.192× |
Image Circle Diameter | 6 mm |
Image Size Dimensions | Not Specified |
Imager Format | 1/3″ |
Distortion Typical (%) | < 0.04 |
Distortion Maximum (%) | < 0.08 |
Phase Adjustment | No |
Telecentricity Typical | < 0.08° |
Telecentricity Maximum | 0.10° |
Working Distance | 67.2 mm |
Depth Of Field | 11.2 mm |
Working ƒ/N | ƒ/8 |
Resolution (Pixel Size) | 26 μm |
Mount | C-Mount |
Dimensions Approximate | 105.6 x 44 x 44 mm |
Front Diameter | 44 mm |
Weight | 326 Grams |
Filter Thread | No Filter Threads |
Operating Temperature Range | 0 to 40°C |
Storage Temperature Range | 0 to 50°C |
Operating Relative Humidity (%) | Not Specified |
Installation Location | Not Specified |
Temperature Sensor | No |
FoV @ 1/2.5″ | 29.60 mm ø |
FoV @ 1/2″ | 25.00 mm ø |
FoV @ 1/1.8″ | 27.76 mm ø |
FoV @ 2/3″ | 31.2 mm ø |
