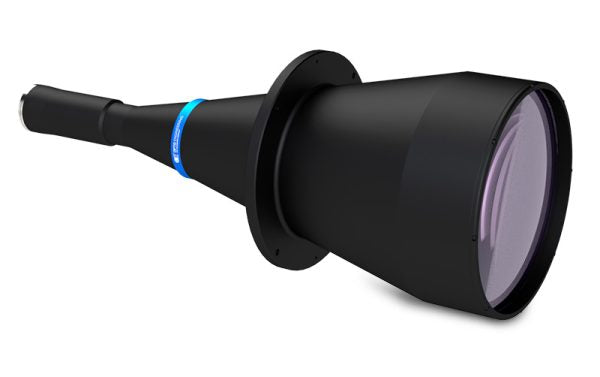

Opto Engineering TC12M192-F APS-H f/8 475.9 mm F-Mount Telecentric Lens

Opto EngineeringSKU: TC12M192-F

Price:
Sale price$11,487.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 1/23/26. Pricing is subject to change and may fluctuate.

Opto Engineering TC12M192-F

Telecentric lenses for sensors up to APS-H and 4k line scan cameras.TC12M series features high-resolution telecentric lens sensors for detectors with up to 33.5 mm an image circle.

They perfectly fit cameras with large sensors, up to APS-H format. TC12M series lenses feature a compact and robust design that makes them ideal for various industrial applications.

TC12M192-F Technical Specifications:

Product Line / Series TC12M
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.144×
Image Circle Diameter 33.5 mm
Image Size Dimensions Not Specified
Imager Format APS-H
Distortion Typical (%) < 0.08
Distortion Maximum (%) < 0.1
Phase Adjustment Yes
Telecentricity Typical < 0.08°
Telecentricity Maximum 0.10°
Working Distance 475.9 mm
Depth Of Field 31.8 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 35 μm
Mount F-Mount
Dimensions Approximate 700.2 x 260 x 260 mm
Front Diameter 260 mm
Weight 10330 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
Line 4k-7µm 199.1 mm
Python 16K 128 x 128 mm
APS-H Python 25K 160 x 160 mm
APS-C IMX342 155.28 x 116.46 mm
