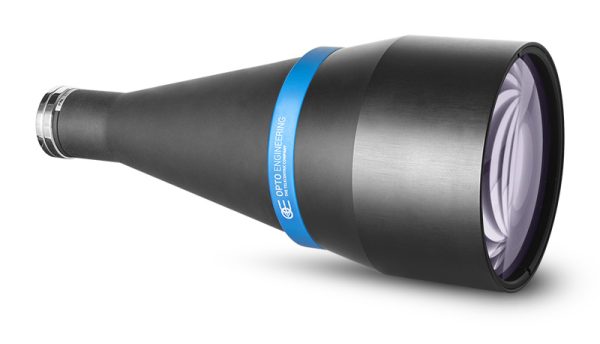

Opto Engineering TC12096 2/3″ f/8 278.6 mm C-Mount Telecentric Lens

Opto EngineeringSKU: TC12096

Price:
Sale price$3,335.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering TC12096

Bi-telecentric lenses for sensors up to 2/3”. TC series bi-telecentric lenses represent the critical component of any measurement system powered by machine vision: these lenses can genuinely take advantage of high-resolution sensors such as 5 MP - 2/3″, acquiring images with exceptional fidelity and precision.

The Opto Engineering® bi-telecentric design makes these optics truly telecentric: no magnification change occurs when an object is moved closer to or away from the lens, making the TC series ideal for measurement applications of mechanical parts ranging from extruded aluminum profiles to tiny clock gears. No other lenses can offer the same optical performances regarding telecentricity and distortion. All TC lenses are rigorously tested and supplied with a detailed test report.

TC12096 Technical Specifications:

Product Line / Series TC
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.068×
Image Circle Diameter 8 mm
Image Size Dimensions Not Specified
Imager Format 2/3″
Distortion Typical (%) < 0.03
Distortion Maximum (%) < 0.08
Phase Adjustment No
Telecentricity Typical < 0.06°
Telecentricity Maximum 0.08°
Working Distance 278.6 mm
Depth Of Field 89.5 mm
Working ƒ/N ƒ/8
Resolution (Pixel Size) 75 μm
Mount C-Mount
Dimensions Approximate 317 x 143 x 143 mm
Front Diameter 143 mm
Weight 2215 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
FoV @ 1/2.5″ 83.82 x 62.94 mm
FoV @ 1/2″ 94.12 x 70.59 mm
FoV @ 1/1.8″ 104.85 x 78.38 mm
FoV @ 2/3″ 104 mm ø
