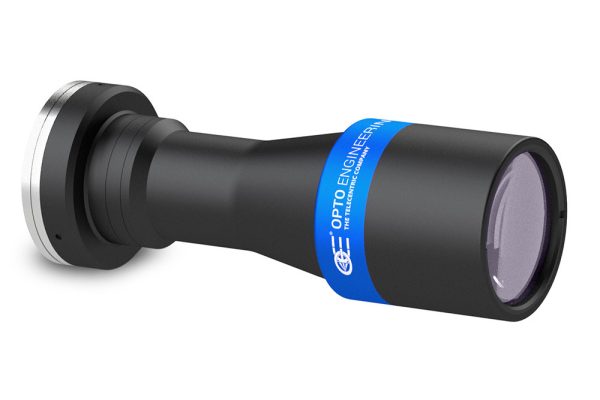

Opto Engineering TC10M036-F APS-C f/11 102.6 mm F-Mount Telecentric Lens

Opto EngineeringSKU: TC10M036-F

Price:
Sale price$4,283.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 1/23/26. Pricing is subject to change and may fluctuate.

Opto Engineering TC10M036-F

Telecentric lenses for sensors up to APS-C and 4k line scan cameras.TC10M series features high-resolution telecentric optics with an image circle of 28 mm that perfectly fits cameras with large sensors up to APS-C format. These lenses also feature a compact and robust design suitable for industrial environments.

Their excellent optical performance and high resolutions make them ideal for applications such as flat panel display checks, high-precision measurement of mechanical parts, and semiconductor and electronics inspection.

TC10M036-F Technical Specifications:

Product Line / Series TC10M
Brand Opto Engineering
Lens Type Telecentric
IP Rating Not Specified
Magnification 0.617×
Image Circle Diameter 28 mm
Image Size Dimensions Not Specified
Imager Format APS-C
Distortion Typical (%) < 0.07
Distortion Maximum (%) < 0.1
Phase Adjustment Yes
Telecentricity Typical < 0.07°
Telecentricity Maximum 0.10°
Working Distance 102.6 mm
Depth Of Field 2.4 mm
Working ƒ/N ƒ/11
Resolution (Pixel Size) 11 μm
Mount F-Mount
Dimensions Approximate 176.3 x 61 x 61 mm
Front Diameter 61 mm
Weight 677 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
Temperature Sensor No
Line 4k-7µm 46.47 mm
APS-C IMX342 36.24 x 27.18 mm
4/3″ IMX367 24.78 x 24.8 mm
4/3″ IMX387 30.58 x 17.24 mm
