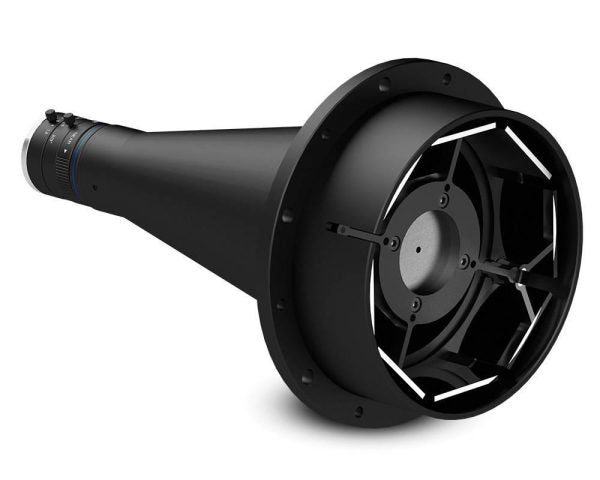

Opto Engineering PCPW012 1/2″ f/6 C-Mount Multi-View Lens

Opto EngineeringSKU: PCPW012

Price:
Sale price$5,687.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 1/23/26. Pricing is subject to change and may fluctuate.

Opto Engineering PCPW012

PCPW optics provide eight different views of an object's side and top surfaces.

The wide angle of view (45°) enables the inspection of the side features of an object (for example, the threads of a screw or a nut) otherwise impossible to acquire with a single camera. Both the external walls of an object and its top can be imaged at the same time, while the internal surfaces of hollow objects can be thoroughly inspected from the outside.

A combined view of the internal and external surfaces is possible and an image displaying both the inner walls and the bottom of a cavity can be obtained. In addition to these unique features, PCPW optics also ensure excellent image resolution and image brightness.

PCPW012 Technical Specifications:

Product Line / Series PCPW
Brand Opto Engineering
Lens Type Multi-View
IP Rating Not Specified
Image Circle Diameter 4.8 mm
Image Size Dimensions Not Specified
Imager Format 1/2″
Distortion Maximum (%) Not Specified
Phase Adjustment Not Applicable
Working Distance @ FoV Minimum 40 mm
Working Distance @ FoV Maximum 20 mm
Working ƒ/N ƒ/6
Mount C-Mount
Dimensions Approximate 231.8 x 117 x 117 mm
Front Diameter 117 mm
Weight 907 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) 20-85 Non Condensing
Installation Location Not Specified
AoV 45 °
FoV Minimum 30
FoV Maximum 50
