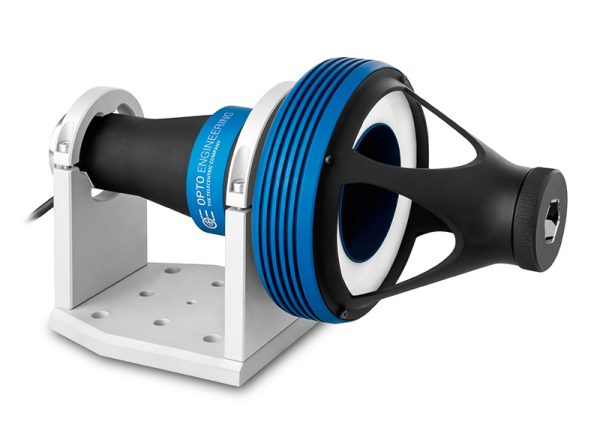

Opto Engineering PCMP023 2/3″ f/8 C-Mount Multi-View Lens

Opto EngineeringSKU: PCMP023

Price:
Sale price$3,915.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering PCMP023

PCPW optics provide eight different views of an object's side and top surfaces.

The wide angle of view (45°) enables the inspection of the side features of an object (for example, the threads of a screw or a nut) otherwise impossible to acquire with a single camera. Both the external walls of an object and its top can be imaged at the same time, while the internal surfaces of hollow objects can be thoroughly inspected from the outside.

A combined view of the internal and external surfaces is possible and an image displaying both the inner walls and the bottom of a cavity can be obtained. In addition to these unique features, PCPW optics also ensure excellent image resolution and image brightness.

PCMP023 Technical Specifications:

Product Line / Series PCMP
Brand Opto Engineering
Lens Type Multi-View
Connector Flying Leads
IP Rating Not Specified
Image Circle Diameter 6.6 mm
Image Size Dimensions Not Specified
Imager Format 2/3″
Distortion Maximum (%) Not Specified
Phase Adjustment Not Applicable
Working Distance @ FoV Minimum 5 mm
Working Distance @ FoV Maximum 1.5 mm
Working ƒ/N ƒ/8
Mount C-Mount
Dimensions Approximate 262 x 119 x 139.5 mm
Front Diameter Not Specified
Weight 1532 Grams
Filter Thread No Filter Threads
Light Color White
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Supply Voltage 24 Volts
Power Consumption Maximum 18 Watts
LED Current 750 mA
Operating Relative Humidity (%) 20-85 Non Condensing
Installation Location Indoor Use Only
Risk Group According To CEI EN 62471:2010 Exempt
AoV 37 °
FoV Minimum 2.5
FoV Maximum 10
