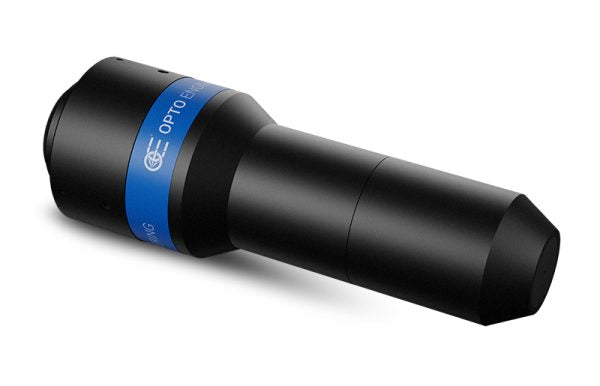

Opto Engineering PCHI023-MF 2/3″ f/8 C-Mount Hole Inspection Lens

Opto EngineeringSKU: PCHI023-MF

Price:
Sale price$3,633.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering PCHI023-MF

PCHI optics have been developed to inspect holes, cavities, and containers quickly. Unlike standard optics or so-called “pinhole lenses,” which can only image flat fields of view, hole inspection optics are specifically designed to image both the bottom of a hole and its vertical walls.

Thanks to the large angle of view (>82°) and innovative optical design, these lenses are compatible with a wide range of object diameters and thicknesses. Hole inspection optics are the perfect solution to inspect various object shapes such as cylinders, cones, holes, bottles, or threaded objects.

New and improved models are now available, providing the ease of use of an upgraded focusing mechanism (PCHI MF) and the flexibility of an immediate focusing thanks to the integration of Optotune liquid lens technology into the lens optical design (PCHI AF).

PCHI023-MF Technical Specifications:

Product Line / Series PCHI
Brand Opto Engineering
Lens Type Hole Inspection
IP Rating Not Specified
Image Circle Diameter 6.6 mm
Image Size Dimensions Not Specified
Imager Format 2/3″
Distortion Maximum (%) Not Specified
Phase Adjustment Not Applicable
Working Distance @ FoV Minimum 10 mm
Working Distance @ FoV Maximum 67 mm
Working ƒ/N ƒ/8
Mount C-Mount
Dimensions Approximate 37.7 x 113.7 x 113.7 mm
Front Diameter Not Specified
Weight 214 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) 20-85 Non Condensing
Installation Location Indoor Use Only
AoV 82 °
FoV Minimum 10
FoV Maximum 120
Focus Control Manual with Gear
