Opto Engineering PCCD023 2/3″ f/20 C-Mount Catadioptric Lens

Opto EngineeringSKU: PCCD023

Price:
Sale price$4,635.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

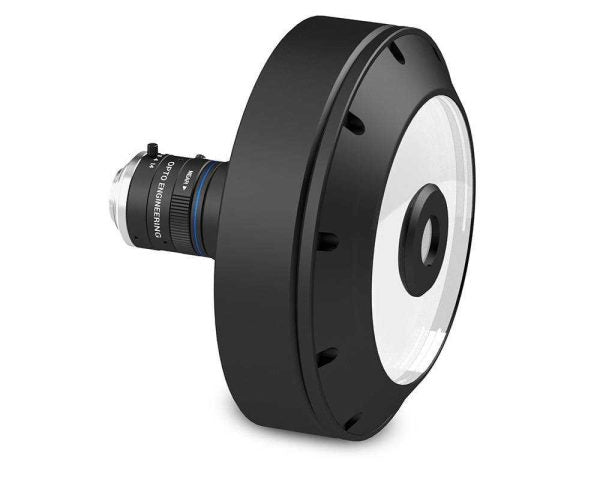

Opto Engineering PCCD023

PCCD series lenses enable the 360° side view of small objects. Their innovative optical design, based on a catadioptric system, makes it possible to image objects with diameters as small as 7 mm. The object's sides are imaged through the catadioptric system, while the top surface is directly imaged onto the center of the detector.

The compactness and high resolution of these lenses make them ideal for inspecting components like pharmaceutical containers, plastic caps, pre-forms, bottlenecks, screws, and other threaded objects. The PCCD series can work with 1/2″, 1/3 ″ and 2/3 ″ detectors. The sides of the object being inspected are observed over a wide angle of view, approaching 45° at its maximum; this feature makes it possible to inspect complex object geometries from a convenient perspective.

PCCD023 Technical Specifications:

Product Line / Series PCCD
Brand Opto Engineering
Lens Type Catadioptric
IP Rating Not Specified
Image Circle Diameter 6.6 mm
Image Size Dimensions Not Specified
Imager Format 2/3″
Distortion Maximum (%) Not Specified
Phase Adjustment Not Applicable
Working Distance @ FoV Minimum 53 mm
Working Distance @ FoV Maximum 28 mm
Working Distance with PCCDLFAT 5 mm
Working ƒ/N ƒ/20
Mount C-Mount
Dimensions Approximate 108.5 x 143 x 143 mm
Front Diameter 5 mm
Weight 994 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) Not Specified
Installation Location Not Specified
AoV 35 °
FoV @ 1/3″ 7.5 mm Ø x 5 mm
FoV @ 1/3″ 7.5 mm Ø x 5 mm
FoV @ 1/3″ 7.5 mm Ø x 5 mm
