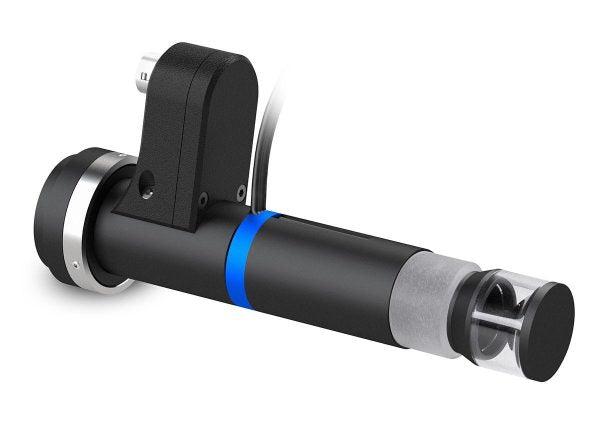

Opto Engineering PCBP023-AF
PCBP probes inspect hollow objects such as engine parts, containers, and tubes whose hidden features can only be controlled by introducing a probe into the cavity. The catadioptric (refracting + reflecting) optical design ensures much higher resolution than fiber-based probes and enables the entire cavity's complete 360° inner view.
Boroscopic probes are intended to be handled by a robot arm or S.C.A.R.A. to scan even the deepest cavities. Built-in illumination keeps the device very compact and makes it suitable for simple 3D applications employing panoramic triangulation techniques.
The PCBP series also features new models with integrated Optotune liquid lenses for immediate focus at different working distances (PCBP-AF). The integration of the liquid lens technology into the optical design of the boroscopic probes ensures optimal performances and maximum flexibility.
PCBP023-AF Technical Specifications:
Product Line / Series | PCBP |
Brand | Opto Engineering |
Lens Type | Boroscopic Probe |
Connector | HR10A-7R-6PB |
IP Rating | Not Specified |
Image Circle Diameter | 7 mm |
Image Size Dimensions | Not Specified |
Imager Format | 2/3″ |
Distortion Maximum (%) | Not Specified |
Phase Adjustment | Yes |
Working ƒ/N | ƒ/18 |
Mount | C-Mount |
Dimensions Approximate | 114 x 21 x 21 mm |
Front Diameter | Not Specified |
Probe Length | 80.1 mm |
Weight | 86 Grams |
Filter Thread | No Filter Threads |
Light Color | White |
Operating Temperature Range | 0 to 40°C |
Storage Temperature Range | 0 to 50°C |
Supply Voltage | 24 Volts |
Power Consumption Maximum | 4 Watts |
LED Current | 40 mA |
Operating Relative Humidity (%) | 20-85 Non Condensing |
Installation Location | Indoor Use Only |
Temperature Sensor | Yes |
Risk Group According To CEI EN 62471:2010 | Risk Group 1 |
Liquid Lens Model | EL-3-10 |
Response Time | 1 Millisecond |
Setting Time | 4 Milliseconds |
Focal Power Mode | Yes |
Current Range | -120 to +120 mA |
Lifecycles (10%-90% Sinusoidal) | >1,000,000,000 |
AoV | 60 ° |
FoV Minimum | 25 |
FoV Maximum | ∞ |
Focus Control | Liquid Lens |
