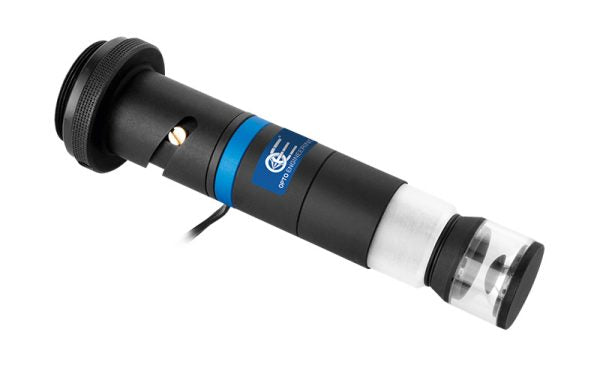

Opto Engineering PCBP023 2/3″ f/18 C-Mount Boroscopic Probe Lens

Opto EngineeringSKU: PCBP023

Price:
Sale price$4,235.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Opto Engineering PCBP023

PCBP probes inspect hollow objects such as engine parts, containers, and tubes whose hidden features can only be controlled by introducing a probe into the cavity. The catadioptric (refracting + reflecting) optical design ensures much higher resolution than fiber-based probes and enables the entire cavity's complete 360° inner view.

Boroscopic probes are intended to be handled by a robot arm or S.C.A.R.A. to scan even the deepest cavities. Built-in illumination keeps the device very compact and makes it suitable for simple 3D applications employing panoramic triangulation techniques.

The PCBP series also features new models with integrated Optotune liquid lenses for immediate focus at different working distances (PCBP-AF). The integration of the liquid lens technology into the optical design of the boroscopic probes ensures optimal performances and maximum flexibility.

PCBP023 Technical Specifications:

Product Line / Series PCBP
Brand Opto Engineering
Lens Type Boroscopic Probe
IP Rating Not Specified
Image Circle Diameter 7 mm
Image Size Dimensions Not Specified
Imager Format 2/3″
Distortion Maximum (%) Not Specified
Phase Adjustment No
Working ƒ/N ƒ/18
Mount C-Mount
Dimensions Approximate 112.9 x 21 x 21 mm
Front Diameter Not Specified
Probe Length 99.9 mm
Weight 76 Grams
Filter Thread No Filter Threads
Light Color White
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Supply Voltage 24 Volts
Power Consumption Maximum 4 Watts
LED Current 40 mA
Operating Relative Humidity (%) 20-85 Non Condensing
Installation Location Indoor Use Only
Risk Group According To CEI EN 62471:2010 Risk Group 1
AoV 60 °
FoV Minimum 25
FoV Maximum
Focus Control Manual
