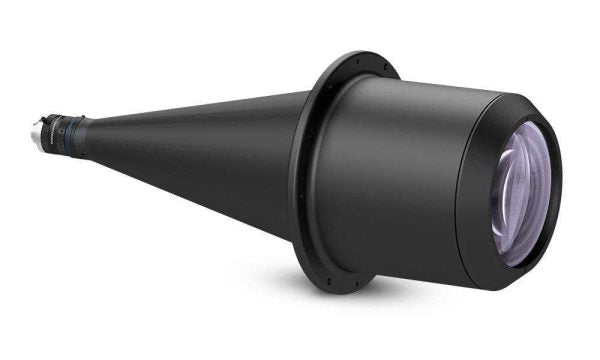

Opto Engineering PC13030HP 1/3″ f/16 C-Mount Pericentric Lens

Opto EngineeringSKU: PC13030HP

Price:
Sale price$7,871.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 1/23/26. Pricing is subject to change and may fluctuate.

Opto Engineering PC13030HP

PC pericentric lenses are unique optics designed to perform complete inspection of objects up to 60 mm in diameter quickly and reliably. The innovative design allows one camera to see the top and lateral surfaces of an object in perfect focus all in one image. This will enable you to greatly simplify the layout of the vision system, with no need for multiple cameras, lenses, or mirrors.

The term pericentric comes from the specific path of the light rays: the lateral surface of the object appears to be wrapped around the top face, making the PC series ideal for cylindrical objects, which are very common in the beverage and pharmaceutical industry. Typical applications include bottleneck thread inspection and data matrix reading - the code will always be imaged appropriately regardless of position.

PC13030HP Technical Specifications:

Product Line / Series PC
Brand Opto Engineering
Lens Type Pericentric
IP Rating Not Specified
Image Circle Diameter 3.6 mm
Image Size Dimensions Not Specified
Imager Format 1/3″
Distortion Maximum (%) Not Specified
Phase Adjustment Not Applicable
Working Distance @ FoV Minimum 80 mm
Working Distance @ FoV Maximum 20 mm
Working ƒ/N ƒ/16
Mount C-Mount
Dimensions Approximate 455.2 x 157 x 157 mm
Front Diameter Not Specified
Weight 6673 Grams
Filter Thread No Filter Threads
Operating Temperature Range 0 to 40°C
Storage Temperature Range 0 to 50°C
Operating Relative Humidity (%) < 85 Non Condensing
Installation Location Not Specified
AoV 24 °
FoV @ 1/3″ 20 mm Ø x 60 mm
FoV @ 1/3″ 20 mm Ø x 60 mm
FoV @ 1/3″ 20 mm Ø x 60 mm
