Description

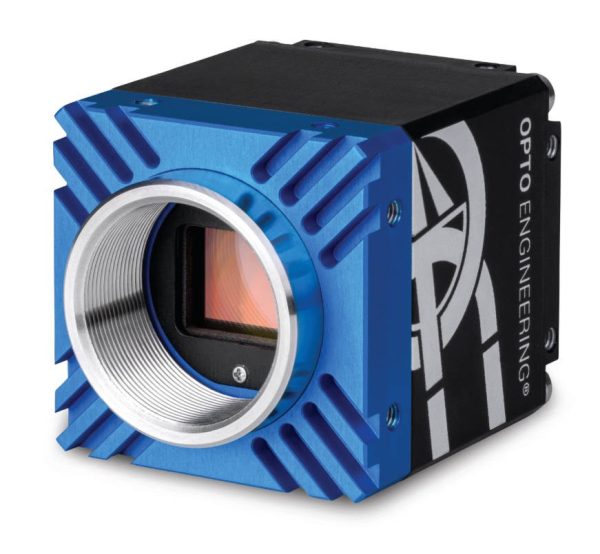

ITA162-GC-20C ITA162-GC-20C
ITALA G is a series of GigE vision industrial cameras designed and manufactured in Italy by Opto Engineering¨. Combining a robust and reliable design with excellent value for money, these cameras are suitable for any imaging application.
The ITALA G series integrates high-quality Sony Pregius and Pregius S CMOS sensors ranging from the most commonly used II generation with 3.45 µm pixels to the most recent IV generation with 2.74 µm pixels.
ITA162-GC-20C ITA162-GC-20C Technical Specifications:
Series | ITALA G |
Megapixel | 16.2 |
Resolution | 5328 x 3040 |
Sensor Format | 1.1" |
Pixel Size | 2.74 |
Sensor Model | IMX542 |
Sensor Type | CMOS |
Shutter | Global |
Chroma | Color |
Frame Rate | 2.4 |
Data Interface | 1 GigE |
Power Supply | 12-24, PoE (IEEE 802.3af class 2) |
Mount | C-Mount |
Active Area (mm) | 16.8 |
Filter | IR Cut |
Burst Frame Rate | 13.6 fps |
Exposure Time | 2.46 _s - 10 s |
ADC Resolution | 10/12 bit |
Dynamic Range | 70.0 dB |
Gain Range | 0-48 dB |
SNR | 40.2 dB |
Image Buffer | 384 mb |
Image Processing | Binning, decimation, ROI, gamma, black level, LUT, defective pixel correction, white balance, color corection matrix |
Pixel Formats | Monochrome 8/10/12, RGB8, Bayer GR 8/10p/10Packed/12p/12Packed, YUV 422Packed |
Chunk Data | yes |
User Sets | 3 |
Timers/Counters | 2/4 |
Synchronization | Free run, software trigger, hardware trigger, PTP (IEEE 1588) |

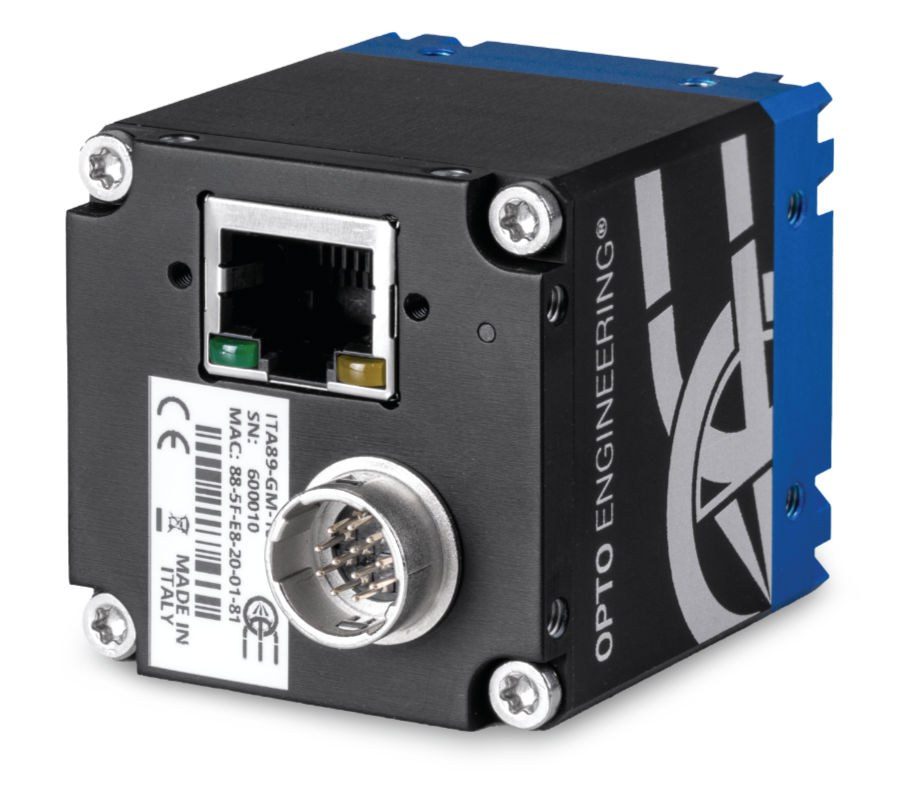

Data Connector | RJ45 |
Data Interface | 1 GigE |
I/O Connector | 12-pin Hirose |
I/O Interface | 2x opto-isolated input, 4x opto-isolated output |
Serial Interface | RS232, RS485 |
Liquid Lens Controller | no |
Encoder Interface | yes, incremental |
Power Supply | 12-24, PoE (IEEE 802.3af class 2) (V) |
Max Power Consumption | 4.0 (W) |
Standards | GigE Vision 2.2, GenICam, GenTL |
Client Coftware | ITALA View or other GigE Vision 2.x software |
Operating Systems | 64-bit Windows 10/11 |
Shock and Vibrations | N/A |
Warranty | 5 (Years) |
Dimensions | 40.5 x 40.5 x 51.2 (mm) |
Clamping System | 16x M3 threaded holes (on all sides) |
Mass | 142 (g) |
Operating Temperature | -25 - +65 (¡C ) |
Storage Temperature | -10 - +60 (¡C ) |
Operating Relative Humidity | 20-80, non condensing |
IP Rating | IP30 |
