ODSW75-530 | ODSW75 High Output Spot Light, 46mm x 69mm, 530nm Green, 14 Degree Lens

Smart Vision LightsSKU: SVL ODSW75-530
Lead Time: 3 Business Days

Price:
Sale price$1,033.00 USD

Shipping calculated at checkout

Downloads

Accessories

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

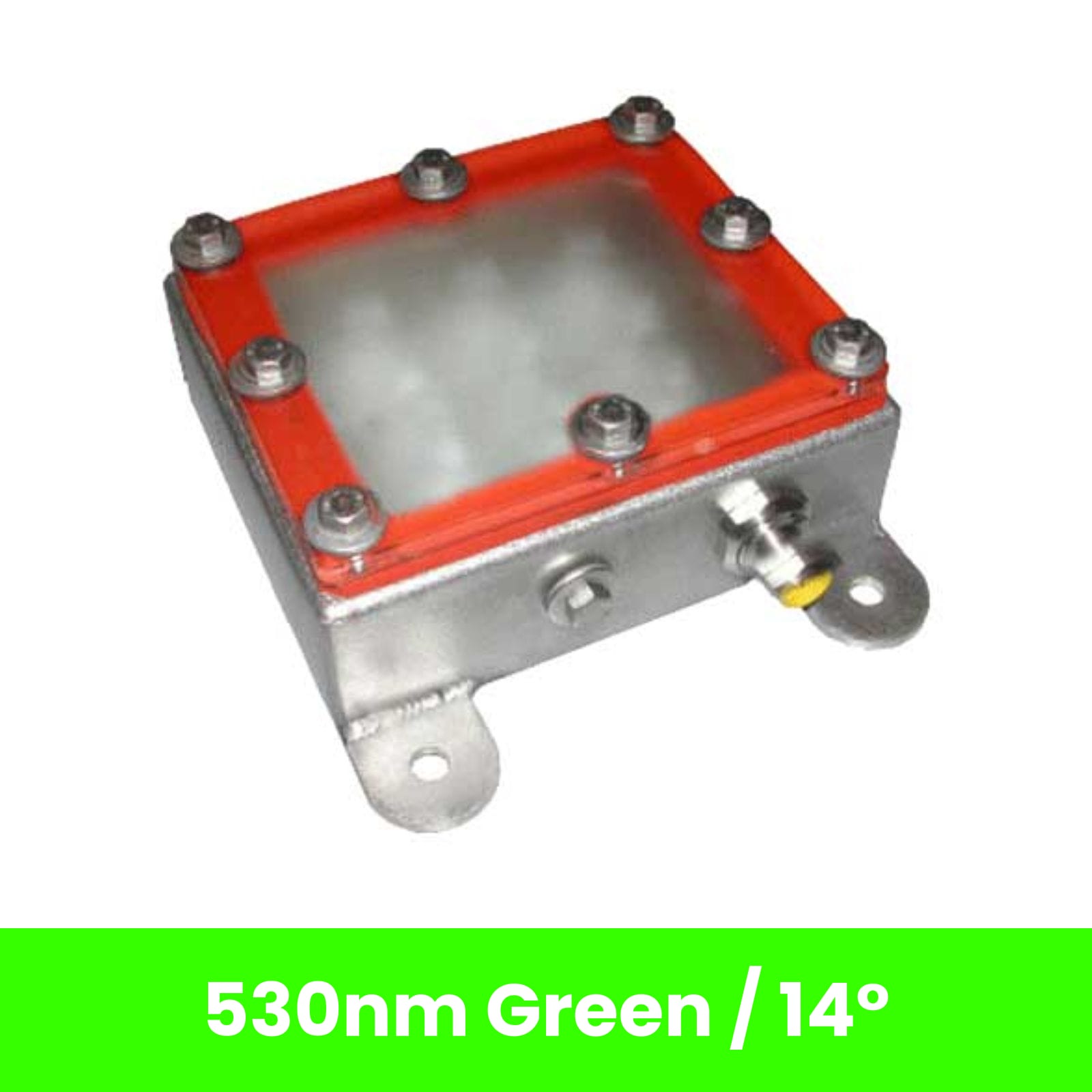

The ODSW75-530 machine vision light from Smart Vision Lights is a brick light in SVL's SW75 washdown spot light series. It has a stainless steel enclosure and is IP68 rated to withstand water and harsh chemicals used in the food industry and other applications requiring washdown. Intensity can be adjusted using an analog signal or the built-in potentiometer. The ODSW75-530 light is 76mm x 86mm and is in the 530nm Green color with a lens angle of 14 Degree. The ODSW75 series is available in White, 365 UV, 395 UV, 470nm Blue, 505nm Cyan, 530nm Green, 625nm Red, 850nm IR, and 940nm IR color variants and 10°, 25°, and 10° x 50° lens angles. Further customizations can be performed upon request from Machine Vision Direct.

The light features a 5 Pin M12 Male Connector on the end of the light. We recommend our 5PM12 series of cables (5PM12-5, 5PM12-10, or 5PM12-15). Standard M12 cables may not be able to handle the current that these lights require

Technical Specifications
