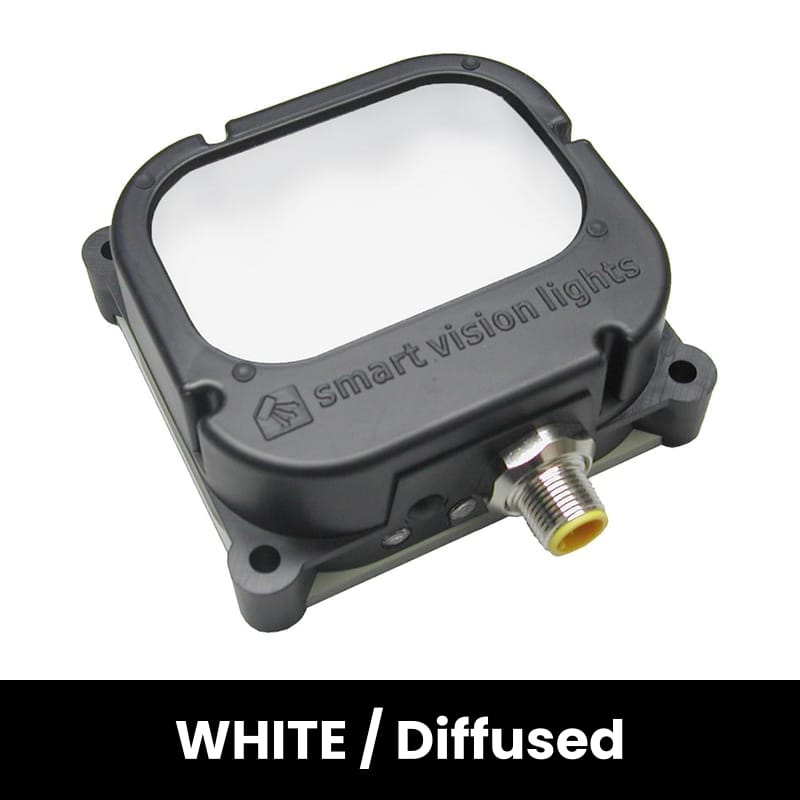

ODSB75-WHI | ODSB75 High Output Spot Light, 46mm x 69mm, WHITE, Diffused

Smart Vision LightsSKU: SVL ODSB75-WHI
Lead Time: 3 Business Days

Price:
Sale price$536.00 USD

Shipping calculated at checkout

Downloads

Accessories

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

The ODSB75-WHI machine vision light from Smart Vision Lights is a brick light in SVL's ODS75 spot light series. The ODSB75 differes from the ODS75 in the fact that the light has a diffiuser built in, and can act as a diffused spot light or a backlight. It features SVL's OverDrive driver for overcurrent strobe operation. It features convenient mounting holes and an aluminum backplate for improved heat dissipation, allowing for higher current operation. Intensity can be adjusted using an analog signal or the built-in potentiometer. The ODSB75-WHI light is 46mm x 69mm and is in the WHITE color with a lens angle of Diffused, and is Not Polarized. The ODSB75 series is available in White, 365 UV, 395 UV, 470nm Blue, 505nm Cyan, 530nm Green, 625nm Red, 850nm IR, and 940nm IR color variants and 10°, 25°, and 10° x 50° lens angles. Further customizations can be performed upon request from Machine Vision Direct.

The light features a 5 Pin M12 Male Connector on the end of the light. We recomend our 5PM12 series of cables (5PM12-5, 5PM12-10, or 5PM12-15). Standard M12 cables may not be able to handle the current that these lights require

Technical Specifications
