Description
THE ODLX150 series is discontinued. We suggest the LSR150 as the most suitable replacement, although it is not a drop in replacement!

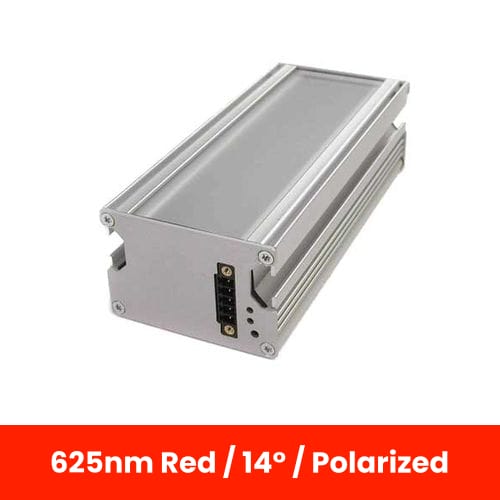

The ODLX150-625-LPI Bar light from Smart Vision Lights is part of SVL's LX series, which is a legacy light that was one of the first Machine Vision Bar Lights with an integrated driver on the market. This light can be direct connected to create longer lengths, and is the shorter version of the ODLX300 light. This IP50 machine vision light incorporates SVL's OverDrive Driver which allows for operation in OverCurrent strobe modes. (For Constant-On Operation, look at the LX150). This model is 150mm long and is in the 625nm Red color. The ODLX150-625-LPI features a lens beam angle of 14 Degree and is Polarized. For new applications, it is recommended to use the LSR (LSR150) series over the LX and ODLX series.
This light can be dimmed to an intensity from 10-100% using the on board potentiometer, and features PNP and NPN Strobe Inputs. Further customizations can be performed upon request from Machine Vision Direct.
The LX series uses a 4 Pin Terminal Connector (Included with light) to provide power. If you would like to convert the connection to an M12 5 Pole A Coded Male connection (which is the standard for all new Smart Vision Lights), the 5PM12-LXP conversion cable can be used. The light can be direct connected into additional units to create longer lengths.
To physically direct connect multiple lights in series, a set of the LXJ-2DTN (2 pieces) is required to hold the lights together.
The ODLX150-625-LPI can be mounted using the TSLOT channels on the left and right sides of the light.
