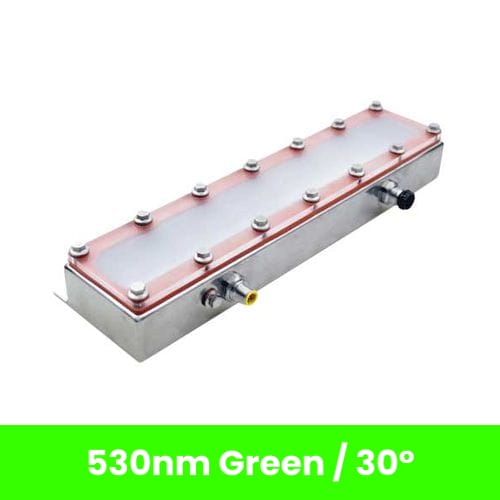

ODLW300-530-W | ODLW300 Light, 300mm, 530nm Green, 30 Degree Lens, Not Polarized

Smart Vision LightsSKU: SVL ODLW300-530-W
Lead Time: 3 Business Days

Price:
Sale price$1,279.00 USD

Shipping calculated at checkout

Downloads

Accessories

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

The ODLW300-530-W Bar light from Smart Vision Lights is their classic linear light in 300mm (12"") Length. This variant is IP68 rated and waterproof for use in food industry or other applications requiring washdown with water or harsh chemicals. This machine vision light series incorporates SVL's OverDrive driver which allows for operation in Overcurrent Strobe Mode, but cannot operate in Constant-On mode. For Constant-On mode, we recommend the LW300 (Smart-Drive Driver). This model is 300mm long and is in the 530nm Green color. It features a lens beam angle of 30 Degree. The ODLW300-530-W is Not Diffused and Not Polarized. The ODLW300 series is available in White, 365nm UV, 395nm UV, 470nm Blue, 530nm Green, 635nm Red, 850nm IR, and 940nm IR as standard variants. Further customizations can be performed upon request from Machine Vision Direct.

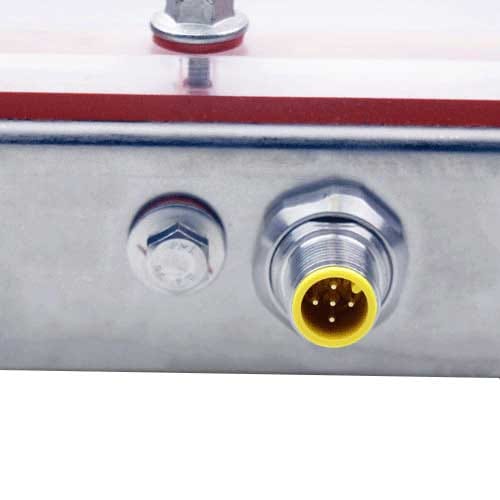

The light features a 5 Pin M12 Male Connector that exits from the side of the light. We recomend our W5PM12 series of cables for washdown applications, such as the W5PM12-15 cable. For daisy chaining lights, we recommend the W5PM12-J300 or W5PM12-J2000 cable.

For new applications, machine vision direct recommends the use of the LZEW300 washdown series of lights. The LZEW300 features the SVL Multi-Drive driver, which is the latest and greatest full featured driver that Smart Vision Lights offers. The LZEW300 is available in 4 variants.

For applications where the lights will not be daisy chained, we recommend the LZEW300-NS-SC (Non-stick coated Aluminum, Single Connector), and the LZEW300-SS-SC (Stainless Steel, Single Connector).

For applications where the lights will be daisy chained, we recommend the LZEW300-NS-DC (Non-stick coated Aluminum, Daisy Chainable Dual Connectors), and the LZEW300-SS-DC (Stainless Steel, Daisy Chainable Dual Connectors).

Technical Specifications
