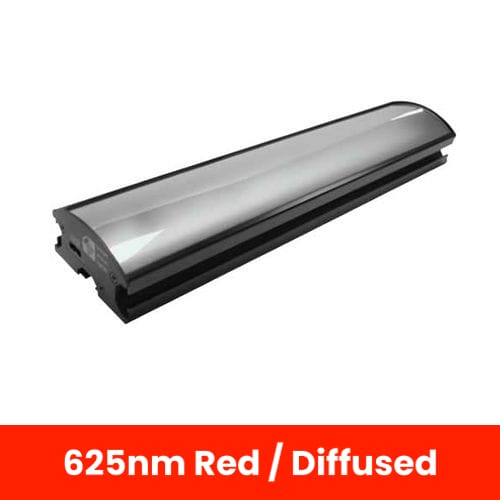

ODLHF300-625 | ODLHF300 Light, 300mm, 625nm Red, Diffused Lens, Not Polarized

Smart Vision LightsSKU: SVL ODLHF300-625
Lead Time: 3 Business Days

Price:
Sale price$546.00 USD

Shipping calculated at checkout

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

The ODLHF300-625 Bar light from Smart Vision Lights is part of SVL's LHF series, which is a designed as an LED replacement for older style fluorescent lights. This IP50 machine vision light incorporates SVL's patented Over-Drive Driver which allows for operation in Overcurrent Strobe mode only. (For constant on operation, look at the LHF300). This model is 300mm long and is in the 625nm Red color. It features a diffused lens to mimic the output of a fluorescent light. The ODLHF300-625 is Not Polarized. The ODLHF300 series is available in White, 470nm Blue, 625nm Red, and 850nm IR as standard variants. Further customizations can be performed upon request from Machine Vision Direct. The LHF series is only available in 300mm lengths, but up to 8 lights can be direct connected in series to provide a total length of up to 2,400mm.

This light cannot be dimmed, but does feature PNP and NPN Strobe Inputs. Further customizations can be performed upon request from Machine Vision Direct.

To physically direct connect multiple lights in series, a set of the LXJ-2DTN (2 pieces) is required to hold the lights together.

The LHF series uses a 4 Pin Terminal Connector (Included with light) to provide power. If you would like to convert the connection to an M12 5 Pole A Coded Male connection (which is the standard for all new Smart Vision Lights), the 5PM12-LHFP conversion cable can be used, or the LHF300-PKIT. The female side can also be converted to an M12 5 Pole A Coded Female connection by using the LHF300-E-PKIT. Converting the female side to M12 allows for Daisy Chaining, as the standard light is only available for Direct-Connecting.

The ODLHF300-625 can be mounted using the LHF300-BKT Swivel Mount Bracket Kit, or the TSLOT channels on the Left, Right, or Bottom sides of the light.

For new applications, it is recommended to use the diffused variants of the LSR series (denoted by the prefix "LSRB") over the LHF series.

Technical Specifications
