ODAL-300x150-850 | ODAL-300x150 High Output Area Spot Light, 300mm x 150mm, 850nm Infrared

Smart Vision LightsSKU: SVL ODAL-300x150-850
Lead Time: 3 Business Days

Price:
Sale price$1,474.00 USD

Shipping calculated at checkout

Downloads

Accessories

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

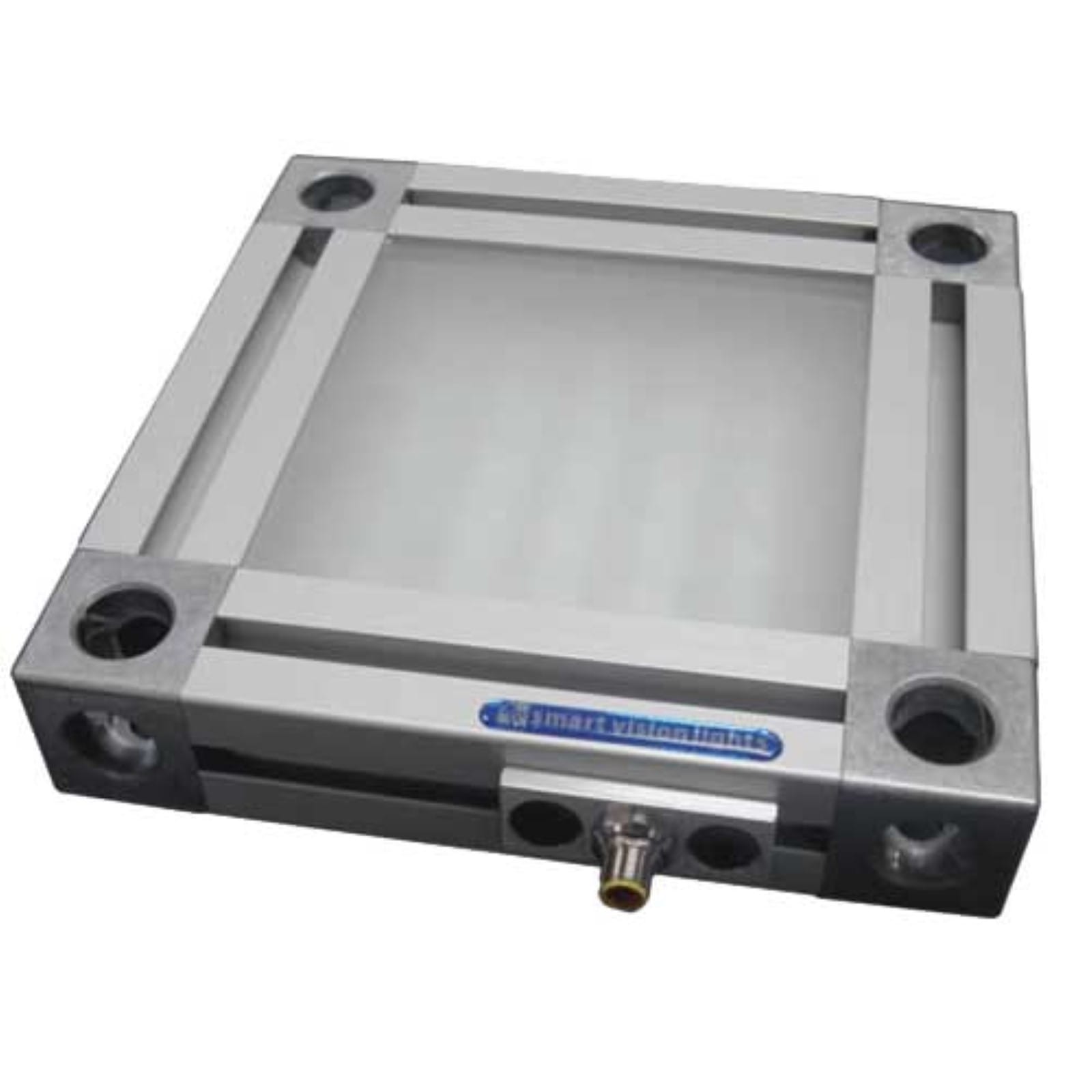

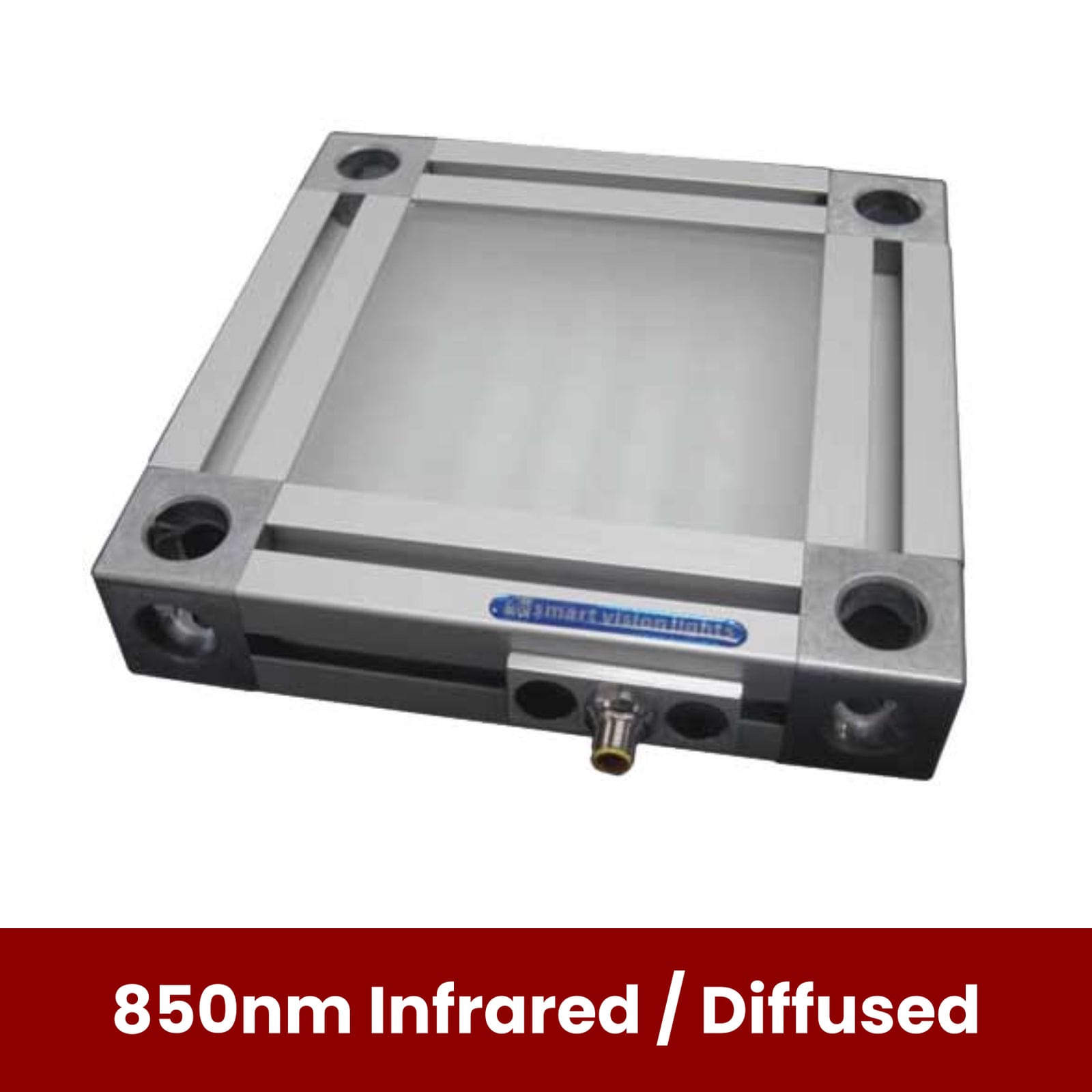

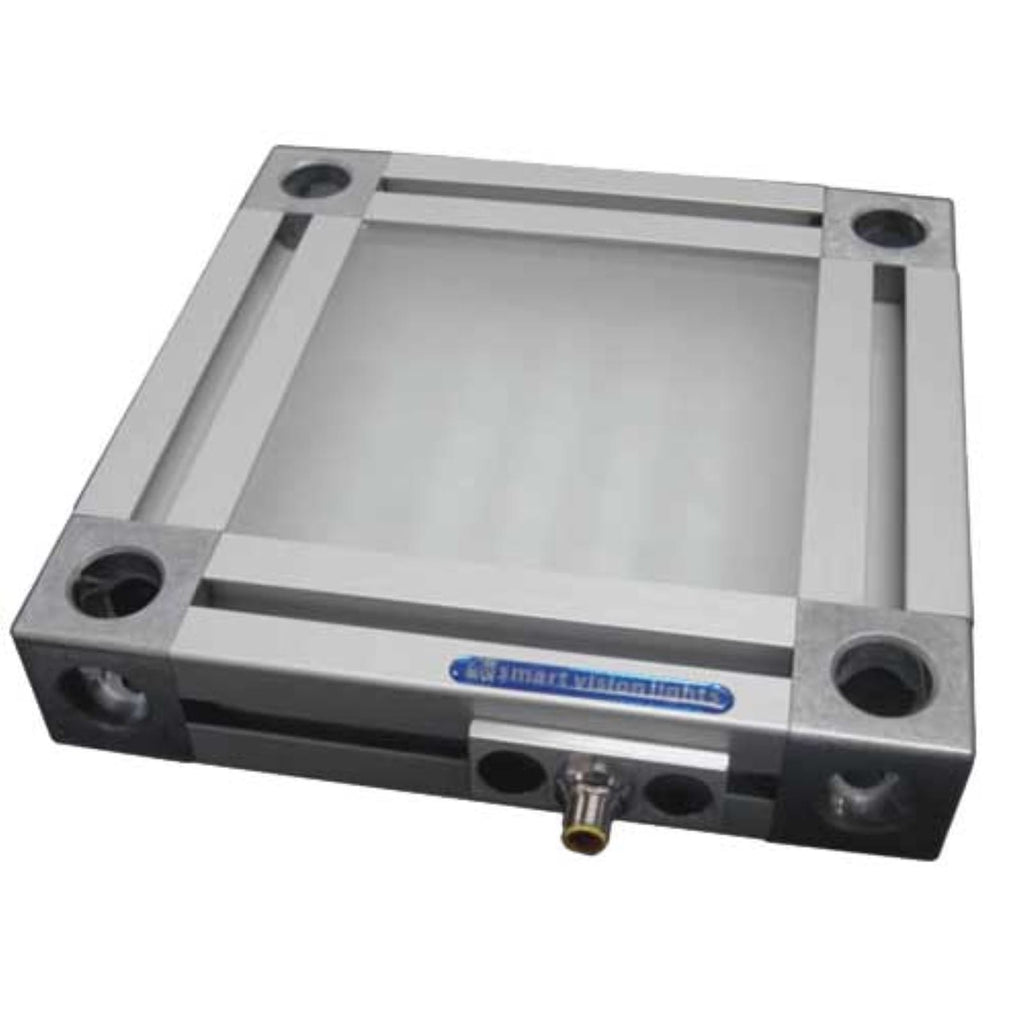

The ODAL-300x150-850 machine vision light from Smart Vision Lights is part of SVL's ODAL series of high intensity area spot lights. It features improved heat dissipation for overcurrent strobe operation. It can easily be mounted using the built-in T slots. The ODAL-300x150-850 light is 300mm x 150mm and is in the 850nm Infrared color. The ODAL series is available in White, 470nm Blue, 505nm Cyan, 530nm Green, 625nm Red, 850nm IR, and 940nm IR as standard variants. Further customizations can be performed upon request from Machine Vision Direct.

The light features a 5 Pin M12 Male Connector on the end of the light. We recommend our 5PM12 series of cables (5PM12-5, 5PM12-10, or 5PM12-15). Standard M12 cables may not be able to handle the current that these lights require

Technical Specifications
