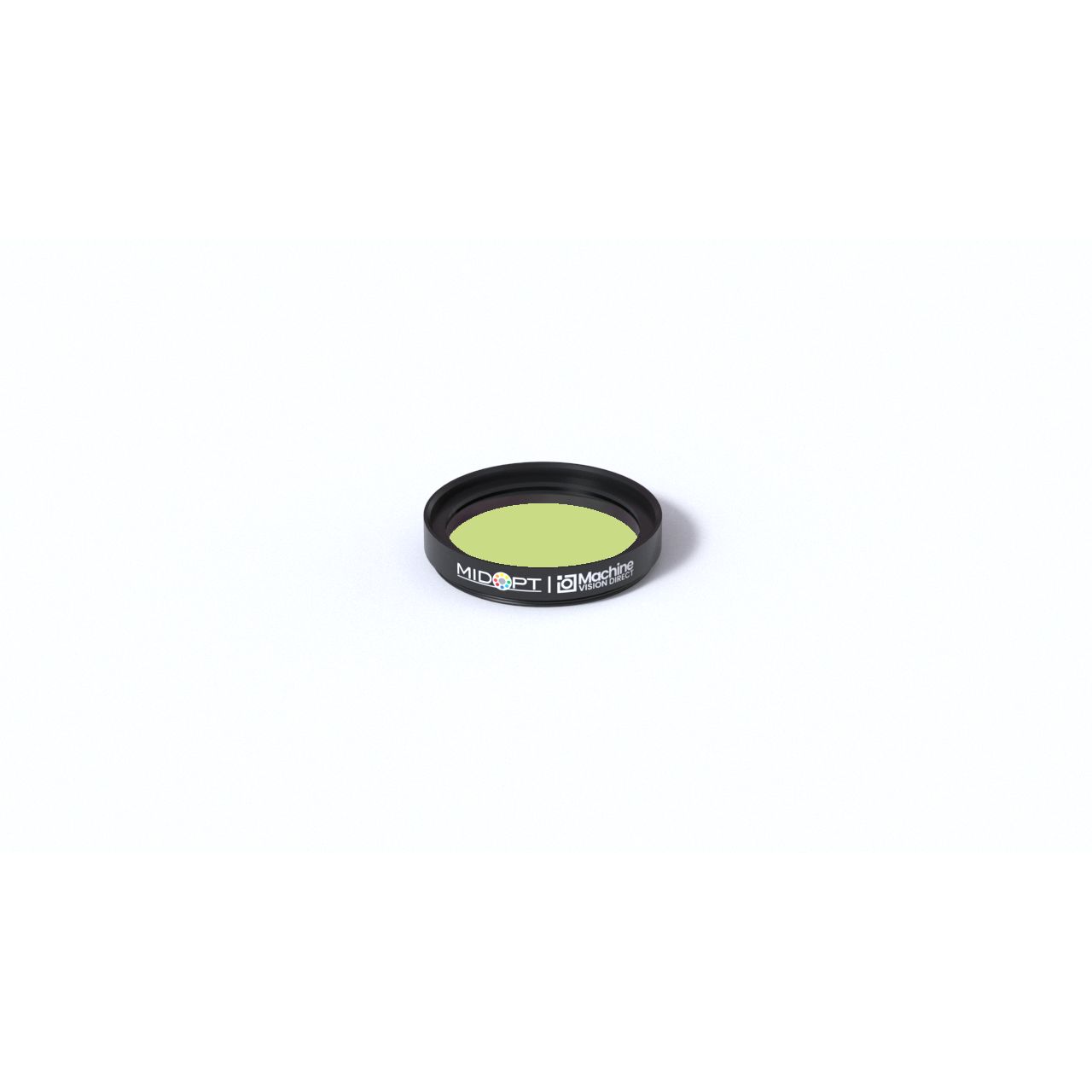

TB550_660_850-34 | TB550/660/850 Triple Bandpass Green+Red+850nm NIR

Midwest Optical SystemsSKU: MID TB550_660_850-34
Lead Time: 15 Business Days

Price:
Sale price$395.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

The MidOpt TB550_660_850-34 is a triple-bandpass filter designed primarily for aerial agriculture mapping and surveying. Green-Red-Near IR data is used for applications where the Chlorophyll Vegetation Index (CVI) and other vegetation indices are preferred. TB550/660/850 filters, when mounted in converted consumer cameras, can help in achieving a more affordable, lightweight alternative to systems using three or more cameras or sensors.

Some of the formulas that are employed in these cases include:
Chlorophyll Vegetation Index
CVI = (NIR Red) / (Green ^ 2)
Normalized Green
NG = Green / (NIR + Red + Green)
Normalized Near Infrared
NNIR = NIR / (NIR + Red + Green)
Normalised Red
NR = Red / (NIR + Red + Green)
Triangular Vegetation Index
TVI =0.5
(120 (NIR – Green) – 200 (Red – Green))

All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.

Technical Specifications
