TB475_550_850-25.5 | TB475/550/850 Triple Bandpass Blue+Green+850nm NIR

Midwest Optical SystemsSKU: MID TB475_550_850-25.5
Lead Time: 15 Business Days

Price:
Sale price$327.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

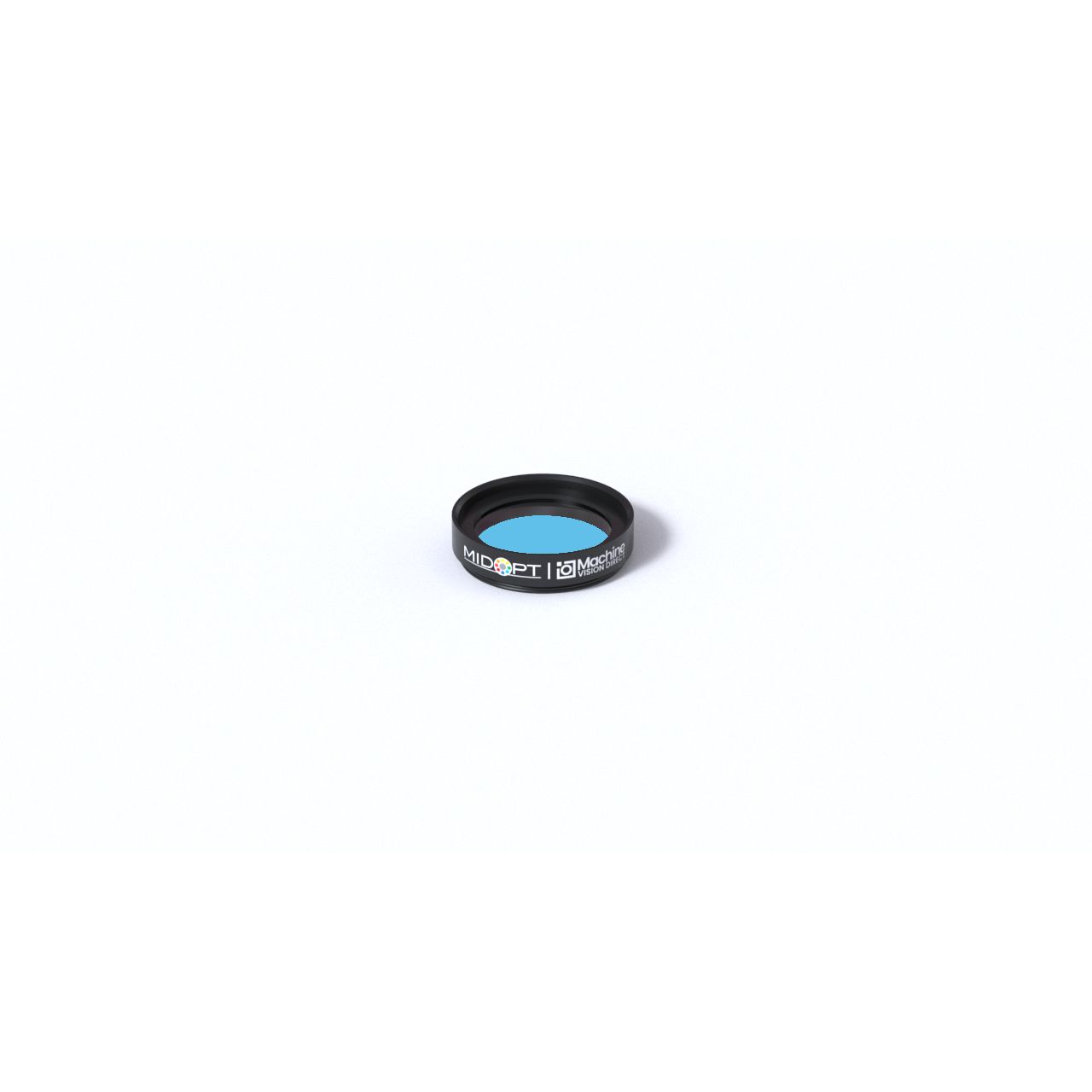

The MidOpt TB475_550_850-25.5 is a Triple Bandpass Blue+Green+850nm NIR Filter. When mounted in converted consumer cameras used in aerial surveying applications, can help provide a more affordable, lightweight alternative to systems employing three or more cameras or sensors. Blue-Green-Near IR Extended Normalized Difference Vegetation Index (ENDVI) data gathered for vegetation health monitoring can provide similar, but spectrally distinct, information compared to traditional NDVI data. Soil background, varying atmospheric conditions, and different vegetation types can all influence the reflection of visible light in somewhat different ways. ENDVI analysis may, at times, provide more accurate or reliable information about plant or crop health by leveraging information in the blue portion of the spectrum.

The formula used is:
ENDVI = [(NIR + Green) – (2 Blue)] / [(NIR + Green) + (2 Blue)]

All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.

Technical Specifications
