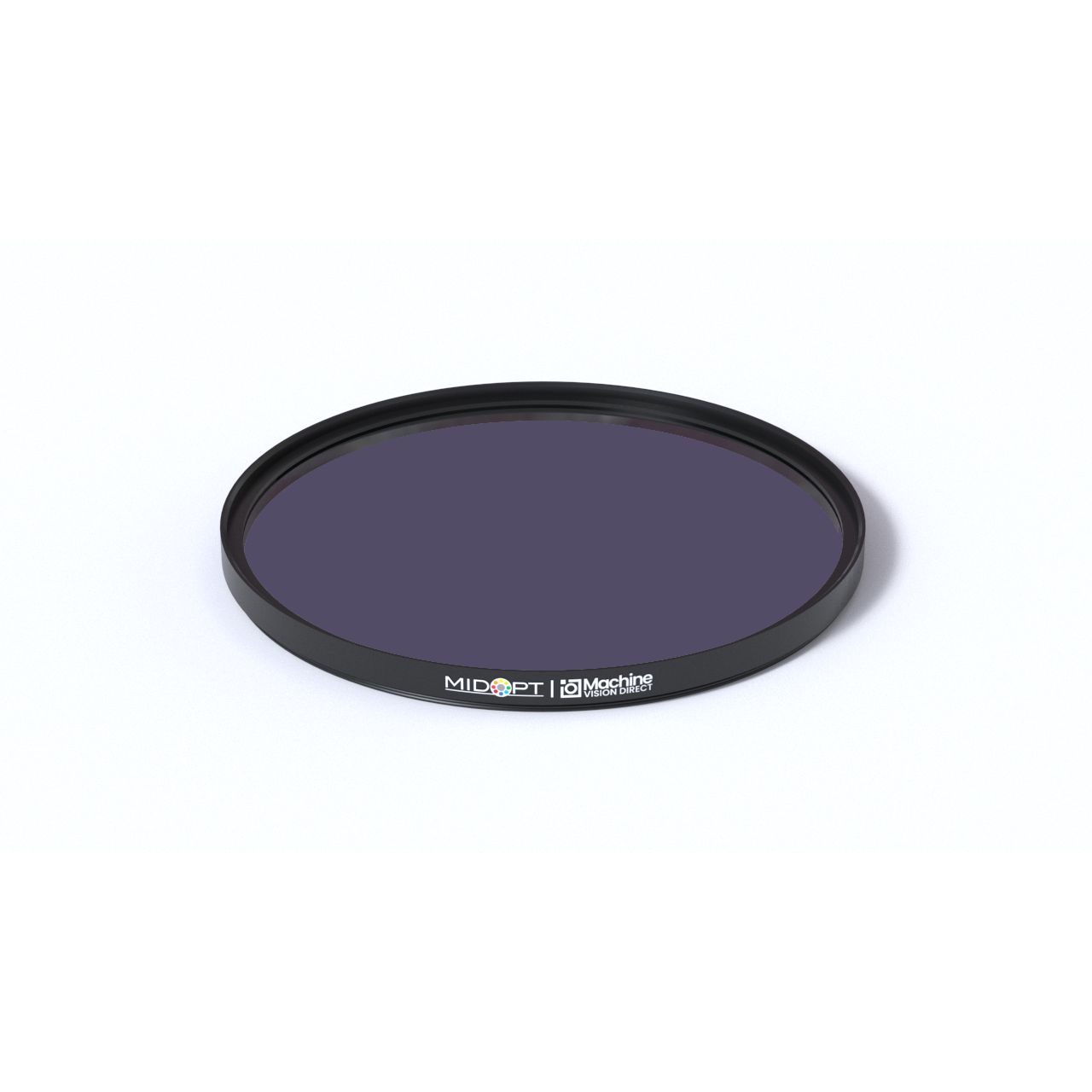

DB395_870-95 | DB395/870 Dual Bandpass Absorptive Visible + NIR

Midwest Optical SystemsSKU: MID DB395_870-95
Lead Time: 15 Business Days

Price:
Sale price$653.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

The MidOpt DB395_870-95 dual bandpass filter passes UV-Violet and infrared wavelengths, effectively blocking all green and red light. These filters have traditionally found use in NDVI-type imaging applications. When using a single camera modified for aerial agricultural surveillance, incorporation of these so-called “Superblue” or “Infrablue” filters allows reflected near-infrared light (745-970nm) to be captured in the camera sensor’s red channel and reflected violet light (375-425nm) to be captured in the sensor’s blue channel (the green channel is not used).

Even with an inexpensive consumer camera (that has had its IR-blocking filter removed), this easy separation makes it possible to post-process the red and blue channels for NDVI by performing the calculation: NDVI = (red – blue) / (red + blue). Healthy vegetation will absorb (not reflect) blue light and strongly reflect near-infrared light. While “Superblue” filters similar to DB395/870 have seen much use in recent years, for better wavelength separation and contrast, we strongly recommend our newer DB475/850 or DB660/850 dualband filters instead.

All MidOpt filters can also be purchased unmounted or in custom dimensions upon request from Machine Vision Direct.

Technical Specifications
