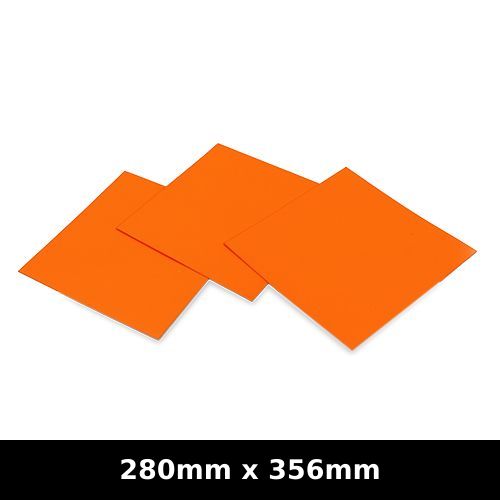

BF590-280x356 | Backlight fluoreSHEET, 280x356mm

Midwest Optical SystemsSKU: MID BF590-280x356
Lead Time: 15 Business Days

Price:
Sale price$816.00 USD

Shipping calculated at checkout

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

The MidOpt BF590-280x356 Backlight fluoreSHEET allows users to achieve a backlight effect using front illumination

Traditionally, backlights provide sharp contrast to outline a shape, edge, or opening, but applications with space constraints may make conventional backlight use infeasible. For these applications, MidOpt produces the BF590 backlight fluoreSHEET.

When the fluoreSHEET is illuminated from the front with a blue (approximately 470nm) LED light, it emits an orange fluorescence. A backlight effect can be created by using a MidOpt Orange Bandpass Filter (BP590) to capture the orange emission and block the blue LED excitation, giving the appearance of a bright white diffuse background in a monochrome image.

BF590 Features

  • Adhesive Backing

  • Repels water

  • Tear-resistant

  • Flexible

The BF590 can be cut to size, but is available in standard sizes of

11" x 17" - 280mm x 432mm - (Part No: BF590-R432x280)

11" x 14" - 280mm x 356mm - (Part No: BF590-R356x280)

8.5" x 11" - 216mm x 280mm - (Part No: BF590-R280x216)

Technical Specifications
