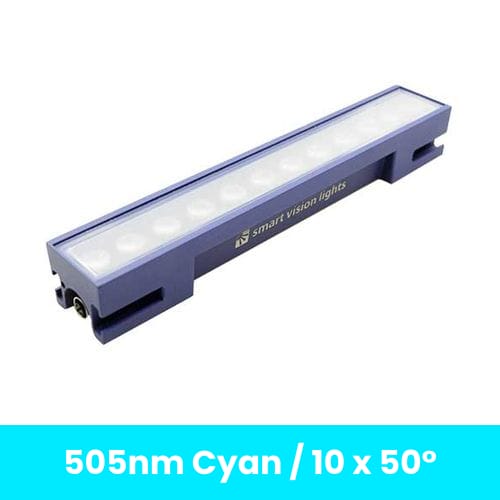

LXE300-505-L | LXE300 Light, 300mm, 505nm Cyan, 10 x 50 Degree Lens, Not Polarized

Smart Vision LightsSKU: SVL LXE300-505-L
Lead Time: 3 Business Days

Price:
Sale price$896.00 USD

Shipping calculated at checkout

Downloads

Accessories

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

The LXE300-505-L is part of Smart Vision Lights LXE series, which delivers up to 100,000 lux in a 300mm form factor. The LXE300 includes Smart Vision Lights advanced Multi-Drive driver, allowing users to operate the linear light in continuous operation or OverDrive strobe (high-pulse operation) mode. Users can also direct connect up to six LXE300 lights to create ultra-long linear lights at a fraction of the cost of traditional monolithic solutions without any loss in uniformity. The LXE300 can also be connected by daisy-chaining them together using a locking jumper cable. The LXE300 Linear Light has an IP Rating of IP65.

The LXE300-505-L can be dimmed using the IVP-C1 dimming accessory, or using the analog input on pin 5 (0-10VDC).

The LXE300 series can easily be mounted and positioned using the PB300-M5 Swivel Bracket, but can also be mounted using the 4 tapped holes on the rear of the light.

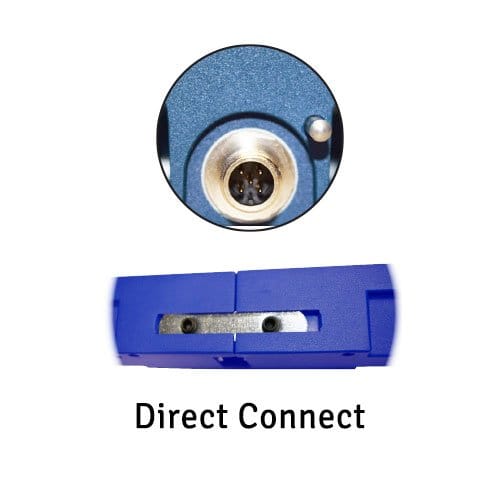

The LXE300 features a 5 Pole M12 A-Coded Male connection on the power input side, which pairs well with the 5PM12-5, 5PM12-10, and 5PM12-15 cables for power.

For new applications, Machine Vision Direct recommends the LSR300 series over the LXE300, unless an IP65 rating is required, in which case the LXE300 would be an excellent choice.

If a higher IP rating is required, Machine Vision Direct recommends the LZEW300-NS-SC (Nonstick Aluminum, Not Daisy Chainable), LZEW300-NS-DC (Nonstick Aluminum, Daisy Chainable), LZEW300-SS-SC (Stainless Steel, Not Daisy Chainable), or LZEW300-SS-DC (Stainless Steel, Daisy Chainable),

Technical Specifications
