Description

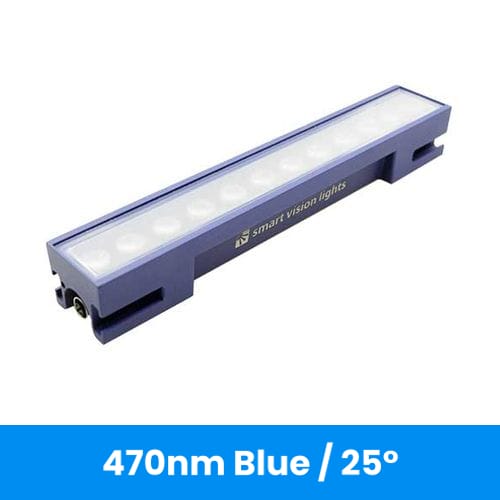

The LXE300-470-W-DC Bar light from Smart Vision Lights is part of SVL's LXE series, which is one of Smart Vision Lights modern direct connectable bar linear lights. This light can be purchased with different connection types, which allow for various implementation options. The standard variant of this light can be direct connected to create longer lengths, up to lengths of 1,800mm using 6 LXE300 modules. This IP65 machine vision light incorporates SVL's patented Multi-Drive Driver which allows for operation in both Constant-On or Overdrive Strobe operation modes in one convenient light. This model is 300mm long and is in the 470nm Blue color. The LXE300-470-W-DC features a lens beam angle of 25 Degree and is Not Polarized. For new applications, Machine Vision Direct recommends using the LSR (LSR) series over the LXE series, unless direct connect or daisy chain functionality is required. To Daisy Chain the LXE300 series, this LXE300-DC variant is required. If you would like to direct connect the light, then you will want the standard version (without -DC in the part number)
This light can be dimmed to an intensity from 10-100% using the analog input line or the IVP-C1 and features PNP and NPN Strobe Inputs. Further customizations can be performed upon request from Machine Vision Direct.
The light features a 5 Pin M12 Male Connector on the end of the light. We recomend our 5PM12 series of cables (5PM12-5, 5PM12-10, or 5PM12-15).
To physically direct connect multiple lights in series, a set of the LXJ-2DTN (2 pieces) is required to hold the lights together.
The LXE300-470-W-DC can be mounted using the PB300-M5 Swivel Mount Bracket Kit, or can be mounted using the tapped holes in the rear corners of the light.
The LXE300 is available in three different connector options:
Direct Connect – This is the default option which allows connecting lights together with no additional cables. Lights are directly connected together, with no space between the lights. Up to six LXE300 lights can be directly connected together.

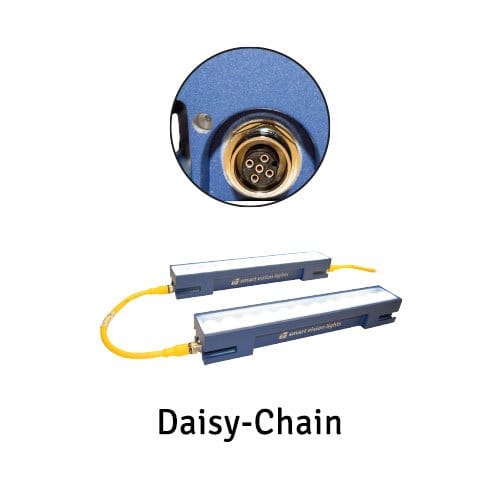

Daisy-Chain – The Daisy-Chain option allows for a locking 5PM-12 Jumper Cable to be used when connecting LXE300 lights together. Lights are able to be spaced apart from each other. Up to six LXE300 lights can be Daisy-Chained together.
Plug – If multiple units are not going to be used, a plug termination can be ordered.
Technical Specifications
