LM150-470-N16 | LM150 Light, 150mm, 470nm Blue, 16 Degree Lens, Not Polarized

Smart Vision LightsSKU: SVL LM150-470-N16
Lead Time: 5 Business Days

Price:
Sale price$641.00 USD

Shipping calculated at checkout

Downloads

Accessories

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

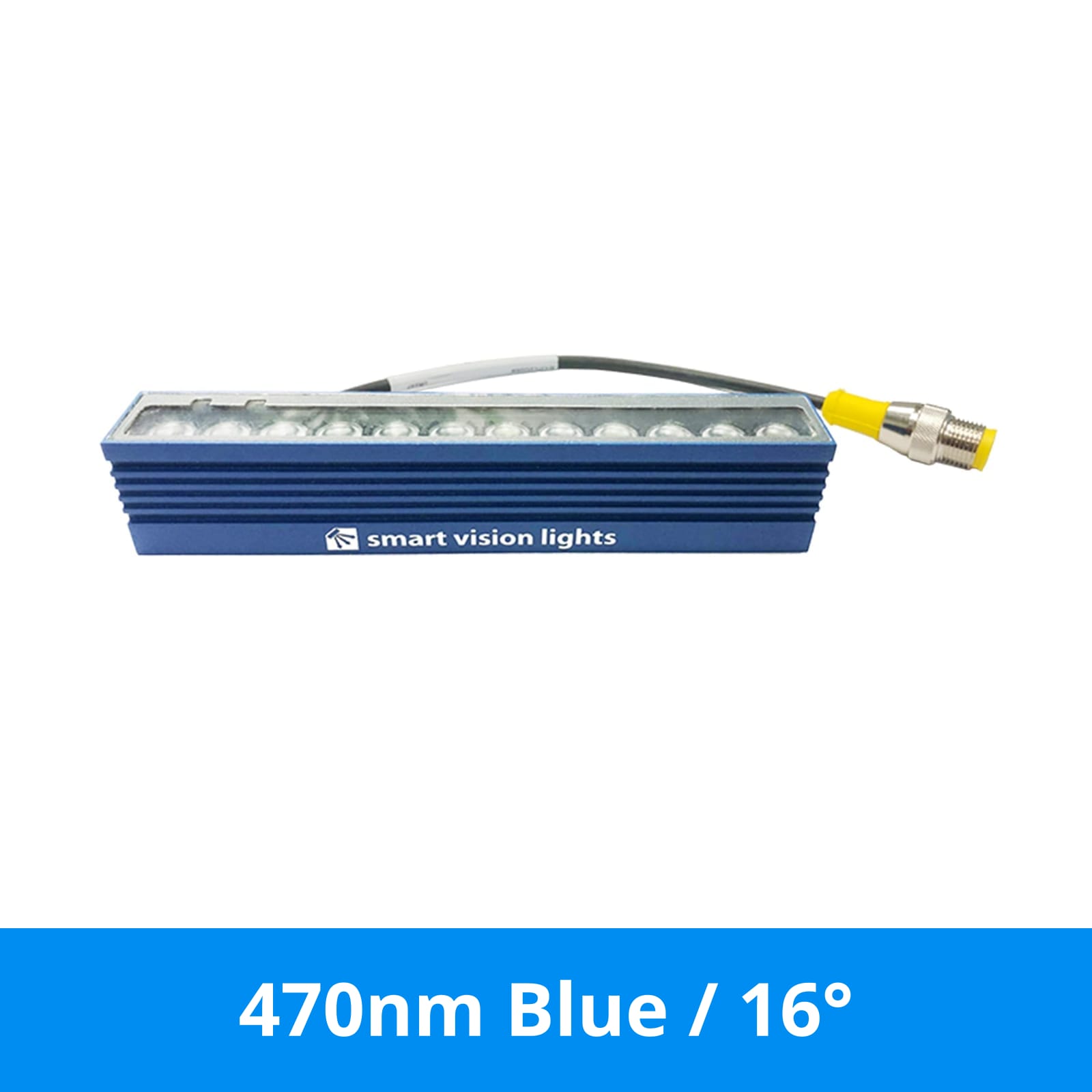

The LM150-470-N16 compact linear light features SVL's integrated Multi-Drive constant-current driver that operates in continuous operation or in OverDrive strobe mode depending on the wiring method. This IP65 light can be mounted via a rear T-slot channel and it's included mounting hardware, or can be paired with a BKT0026 Tilt Bracket. The LM150 offers over-current protection and PNP and NPN strobe trigger inputs. With a compact housing that is only 141 mm long and contains 12 high brightness LED's, the LM150 puts out unprecedented levels of light in one of the industry’s smallest footprints. The LM150-470-N16 is in the 470nm Blue color, features a lens beam angle of 16 Degree and is Not Polarized. The LM150 series is available in White, 470nm Blue, 530nm Green, 625nm Red, 850nm IR as standard variants. Further customizations can be performed upon request from Machine Vision Direct.

The LM150 is the brightest and largest light in the Mini Linear Series from Smart Vision Lights, which is comprised of the LM45 series, the LM75 series, and the LM150 series

The LM150 can be dimmed using the IVP-C1 dimming accessory, or with the analog input on Pin 5 (Gray Wire, 0-10VDC)

The light features a 5 Pin M12 Male Connector on a short pigtail that exits from the side of the light. We recomend our 5PM12 series of cables (5PM12-5, 5PM12-10, or 5PM12-15).

Technical Specifications
