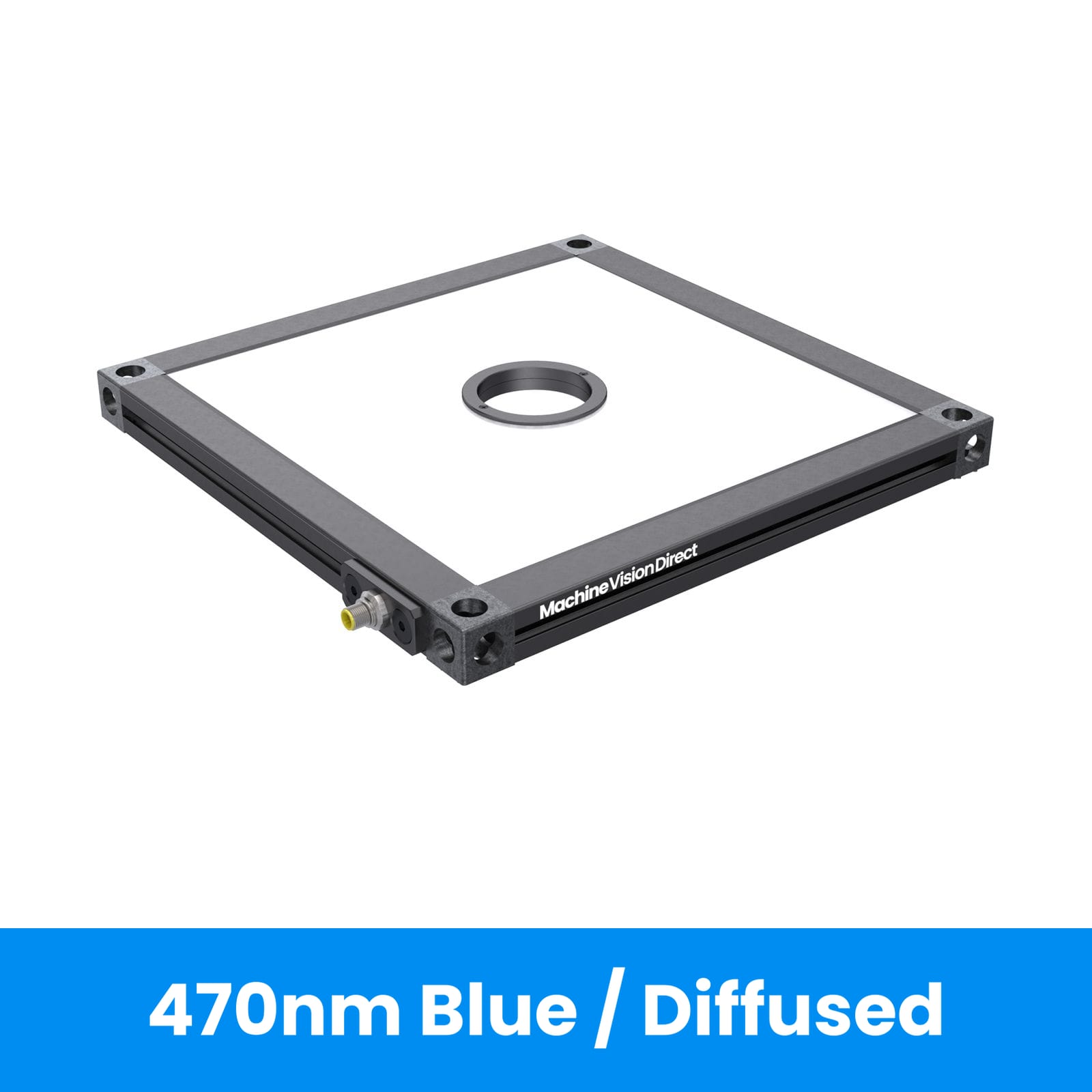

LLPX-H65-306x306-470 | LLPX-H Diffuse Light Panel, 306mm x 306mm, 65mm Hole, 470nm Blue

Smart Vision LightsSKU: SVL LLPX-H65-306x306-470
Lead Time: 3 Business Days

Price:
Sale price$1,360.00 USD

Shipping calculated at checkout

Downloads

Accessories

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

The LLPX-H65-306x306-470 light panel from Smart Vision Lights is designed for increased output compared to other dome lights. It features an optically clear internal light dispersion grid and a matte white backing plate to maximize light output. This light also features SVL's MultiDrive driver for constant on or overcurrent strobe operation. The LLPX-H65-306x306-470 is 306mm x 306mm with a 65mm camera aperture in the center, and is in the 470nm Blue color. The LLPX-H series is available in White, 470nm Blue, 530nm Green, 625nm Red, and 850nm IR as standard variants. Further customizations can be performed upon request from Machine Vision Direct.

Machine Vision Direct and Smart Vision Lights can customize LLPX-H lights to the size you need — up to 4800 x 1180 mm. The Hole size, location, and quantity of holes can all be customized upon request.

The light features a 5 Pin M12 Male Connector on the end of the light. We recommend our 5PM12 series of cables (5PM12-5, 5PM12-10, or 5PM12-15). Standard M12 cables may not be able to handle the current that these lights require

Technical Specifications
