LL232-550 MicroBrite Line Light, 550 mm

Advanced IlluminationSKU: LL232-55045524
Lead Time: 2 Weeks

Color: Royal Blue (455nm)
Driver: 24 Volt
Price:
Sale price$1,945.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

MicroBrite Line Lights - LL Series

LL232-550 Specifications:

Brand Advanced Illumination
Series LL232
Wavelength VARIES
Color VARIES
Driver 24
Ingress Protection Not Rated
Length 550 mm
Weight 1577g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

Part of the MicroBrite„¢ family of high performance, compact machine vision lights.

This line light series utilizes a fresnel lens for a compact form factor.

Provides an intensity level of 189kLux (working distance of 75mm)

Expandable in 50mm increments up to 750mm

General Specs

Electrical Specifications

0.10A Per 50mm

Normal Operating Temperature

0 - 60°C

Weight Varies by Size; LL232-150 unit is 86.2g (3.04oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 660, 730, WHI
Compliance IP Rating
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description

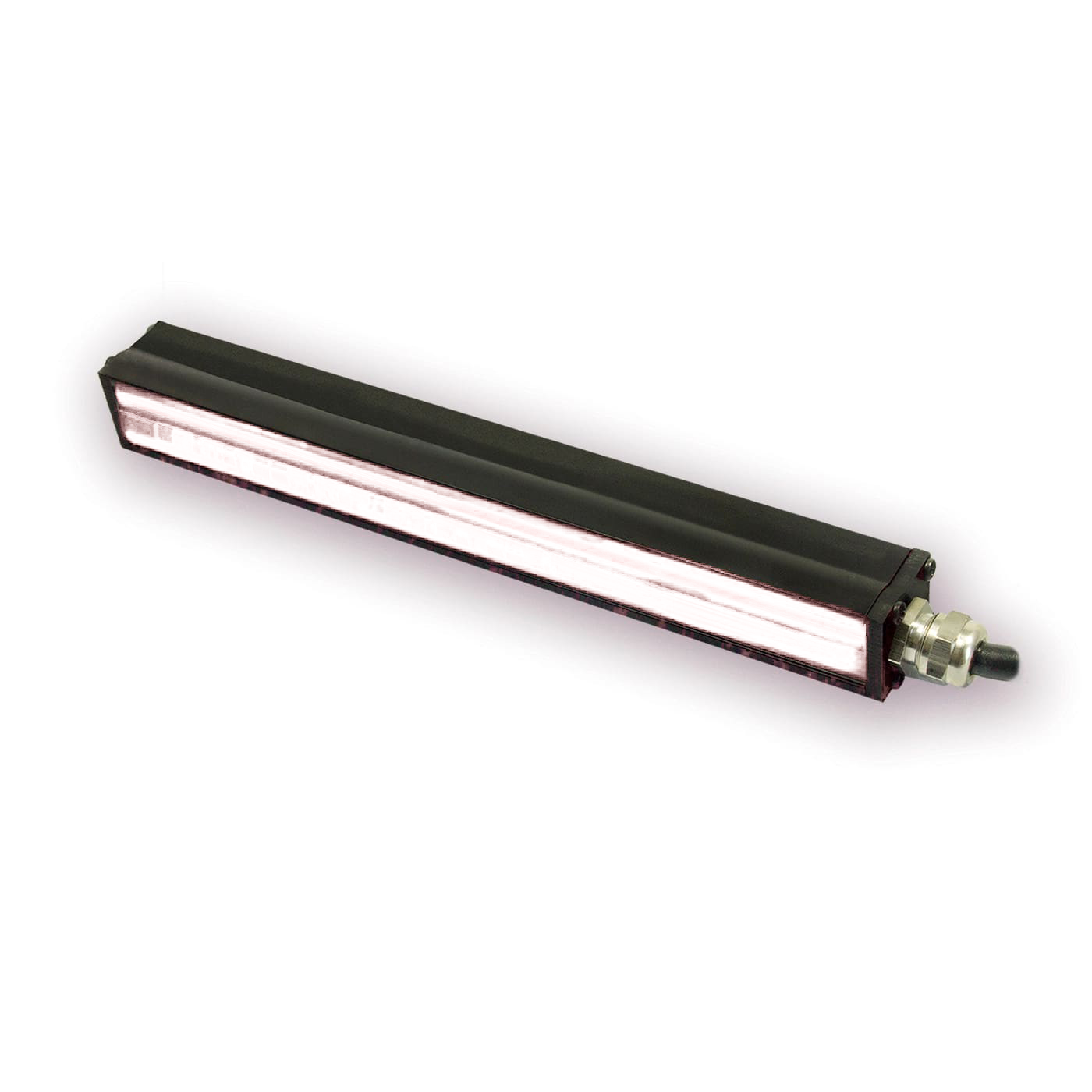

WHITE
Advanced Illumination White Lights
WHITE

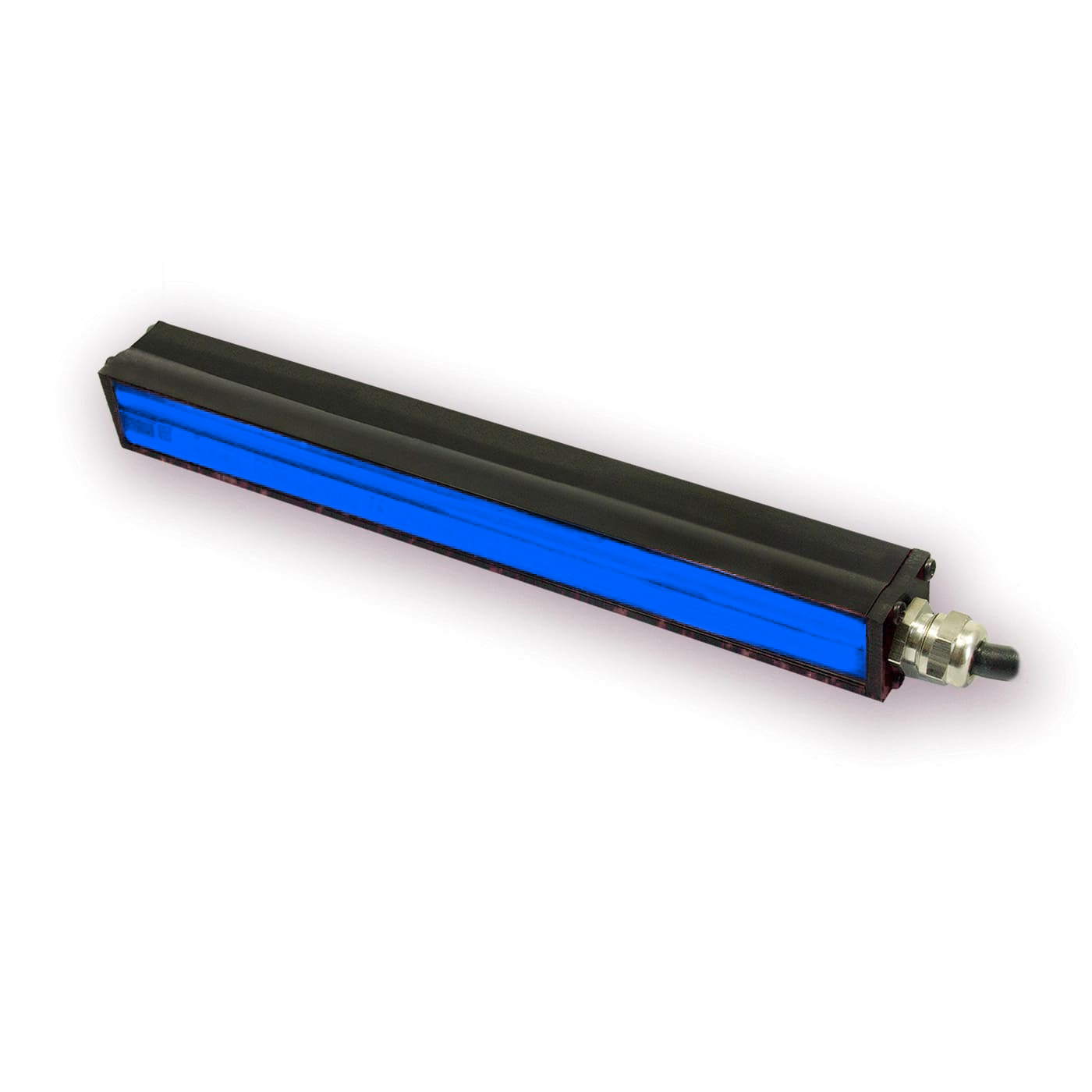

455
455nm Royal Blue
660
Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

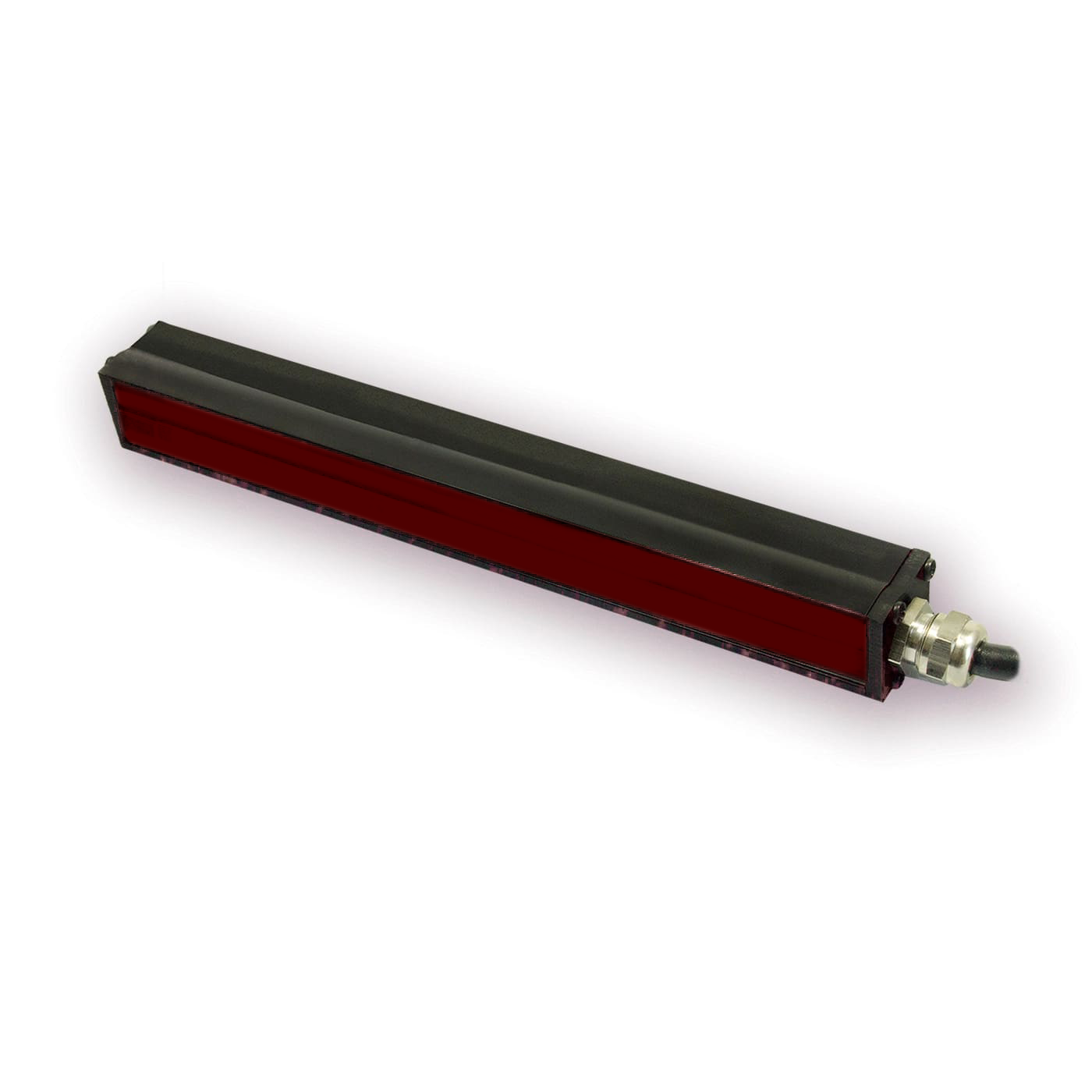

940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 LL232 MicroBrite Line Lights Mechanical Specs | Advanced Illumination



Optical Specs

 LL232 MicroBrite Line Lights Mechanical Specs | Advanced Illumination


Electrical Specs

 LL232 MicroBrite Line Lights Electrical Specs | Advanced Illumination

Control Specs

 LL232 MicroBrite Line Lights Control Specs | Advanced Illumination



Part No Key

 LL232 MicroBrite Line Lights Part No Key | Advanced Illumination

Advanced Illumination LL232-550 Downloads:

Advanced Illumination LL232-550 Datasheet | Machine Vision Direct
Advanced Illumination LL232-550 CAD PDF | Machine Vision Direct
Advanced Illumination LL232-550 CAD DXF | Machine Vision Direct
Advanced Illumination LL232-550 CAD STEP MODEL | Machine Vision Direct
