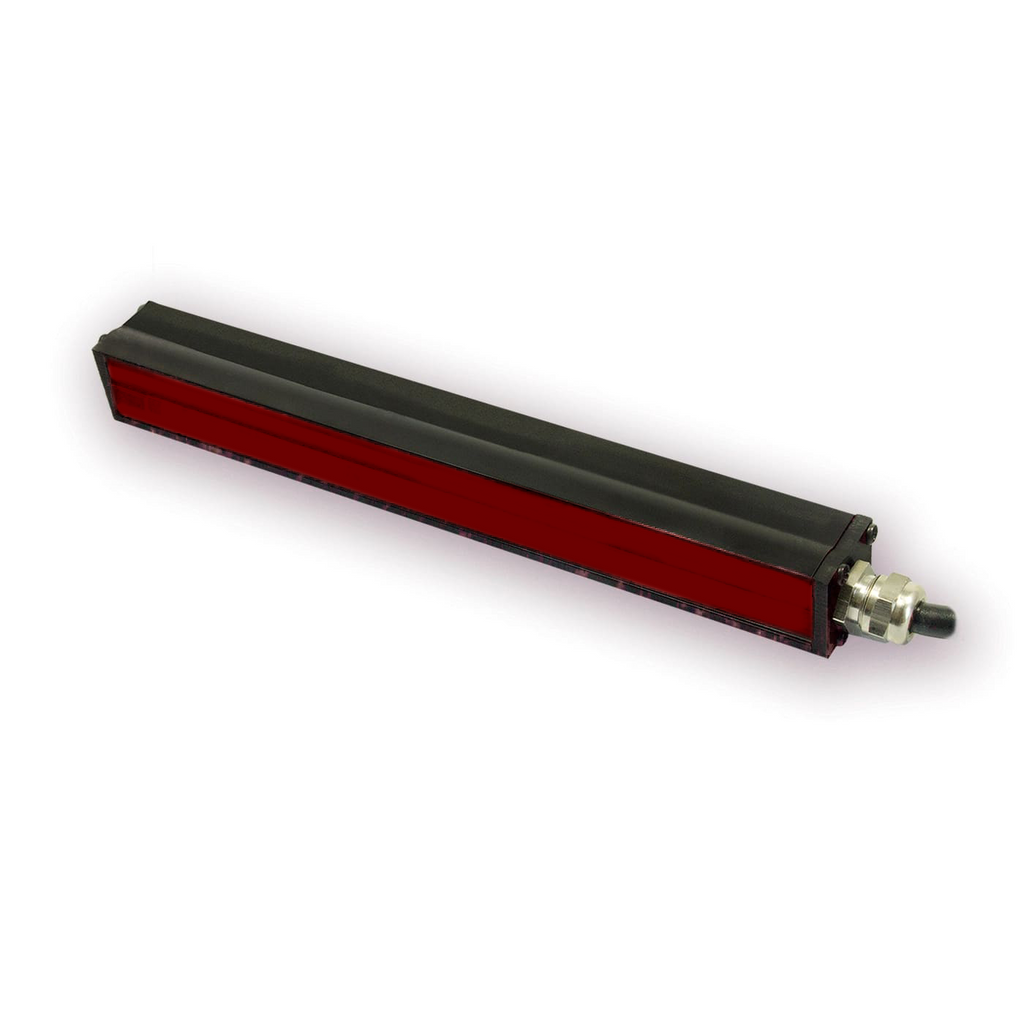

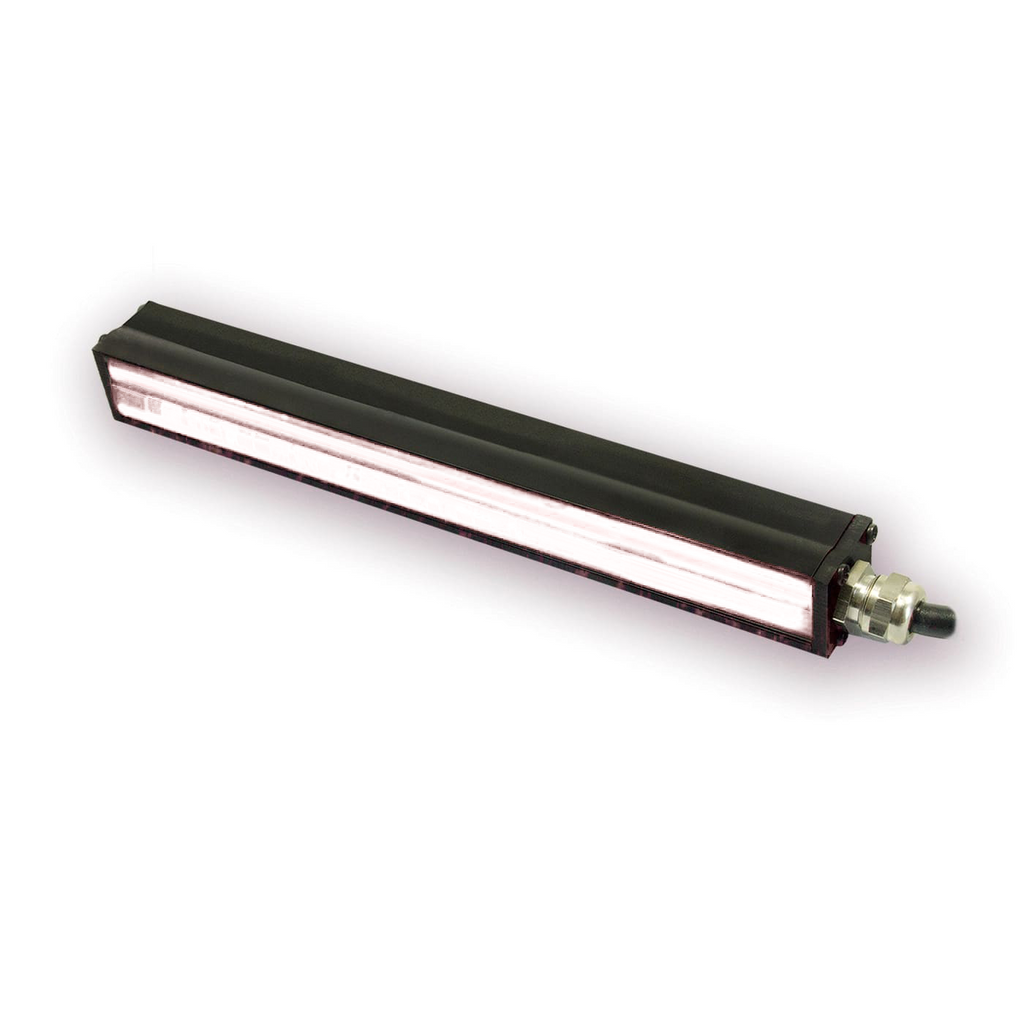

MicroBrite Line Lights - LL Series
|Ingress Protection||Not Rated|
|Can Be Strobed||No|
|Can Be Overdrive Strobed||No|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Not Dimmable|
|Connection||2M Flying Lead|
Part of the MicroBrite„¢ family of high performance, compact machine vision lights.
This line light series utilizes a fresnel lens for a compact form factor.
Provides an intensity level of 189kLux (working distance of 75mm)
Expandable in 50mm increments up to 750mm
0.10A Per 50mm
|Normal Operating Temperature||
0 - 60°C
|Weight||Varies by Size; LL232-150 unit is 86.2g (3.04oz)|
|Standard Cable Information||2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.|
|Photobiological Risk Factor||
Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 660, 730, WHI
|Lumen Maintenance||L70 = 50,000 Hours|
||455nm Royal Blue|
||730nm Infra-Red (IR)|
||850nm Infra-Red (IR)|
||940nm Infra-Red (IR)|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination LL232-300 Downloads:
