LL230-0750 Ultra High Intensity Line Light, 0750 mm

Advanced IlluminationSKU: LL230D-0750455M12
Lead Time: 2 Weeks

Color: Royal Blue (455nm)
Driver: M12
Lens Position: D
Price:
Sale price$6,672.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Ultra High Intensity Line Lights - LL Series

LL230-0750 Specifications:

Brand Advanced Illumination
Series LL230
Wavelength VARIES
Color VARIES
Driver M12
Ingress Protection Not Rated
Length 0750 mm
Lens Focus D
Weight 5980g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

This ultra high intensity line light series is built to handle the most extreme line scan lighting requirements.

Provides an intensity level of 2,100 klx (working distance of 75 mm).

Pre-engineered for expandability in 150 mm (6�) increments up to 2400 mm (94.5�).

Available in multiple wavelengths.

In the event of abnormally high ambient temperatures, the device automatically shuts down when the housing reaches 60°C and resumes operation at 56°C.

Note: Requires third party power supplies “ refer to spec sheet.

General Specs

Electrical Specifications Please see Electrical Specs
Normal Operating Temperature

0 - 60°C

Weight 300mm model - 2082.0g (73.4oz) (4.59lbs)
Standard Cable Information No cable included. Please see page 5.
Photobiological Risk Factor Group 3 (High-Risk) Applicable Wavelengths: 455, 530, 625, WHI
Compliance CE, RoHS, IEC 62471
IP Rating Not Rated
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description

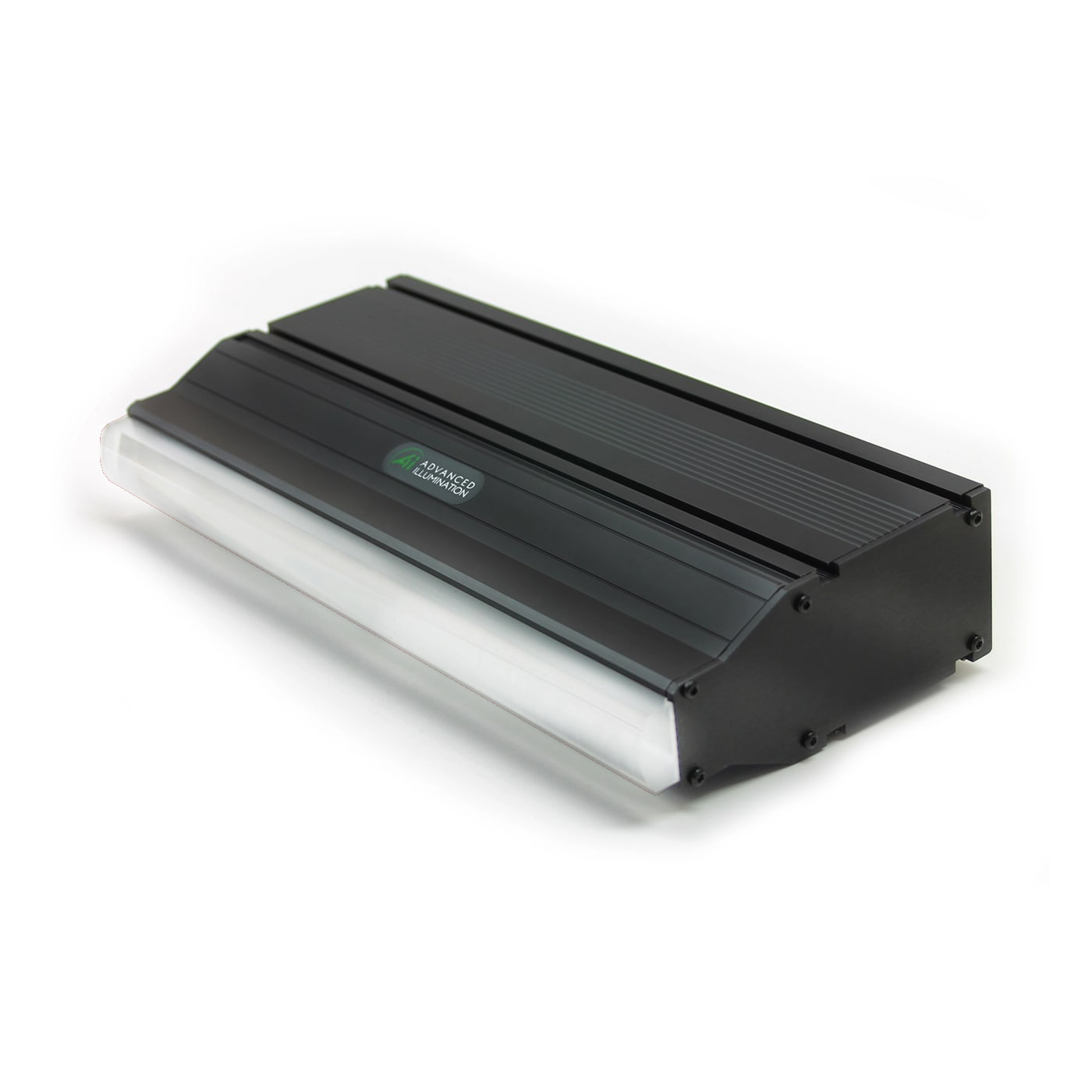

WHITE
Advanced Illumination White Lights
WHITE
455

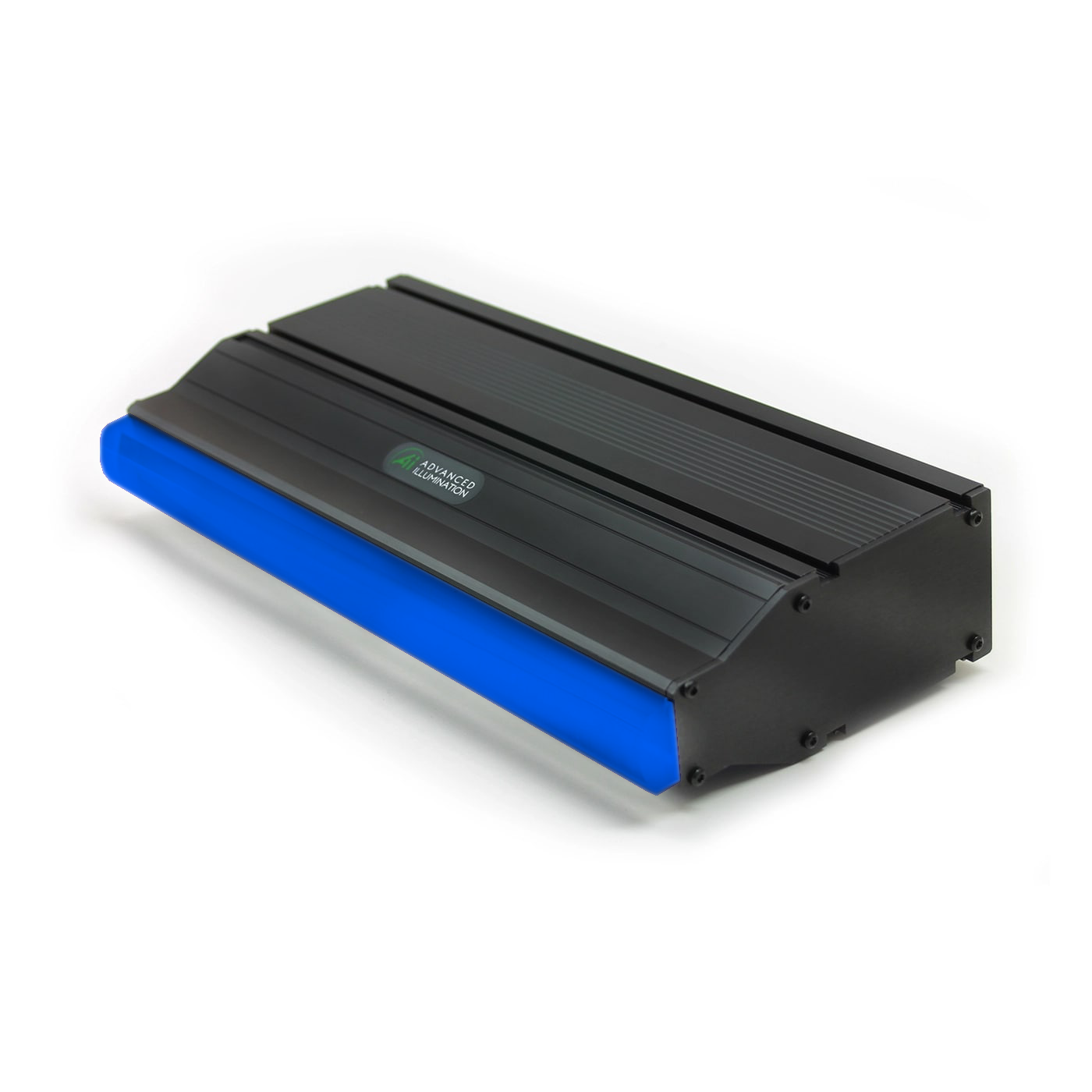

455nm Royal Blue
530
Advanced Illumination 530nm Green Light

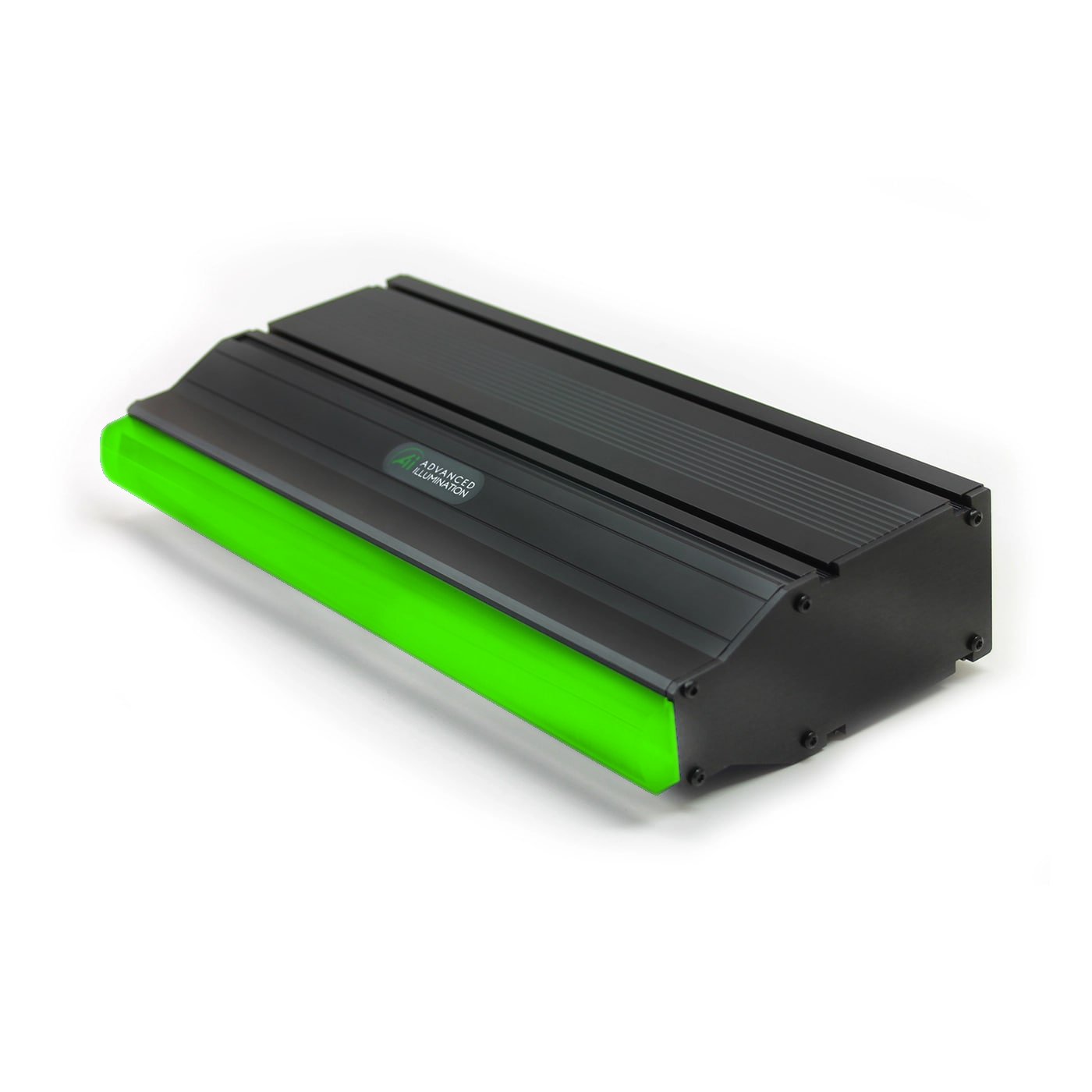

530nm Green
625
Advanced Illumination 625nm Red Orange Light

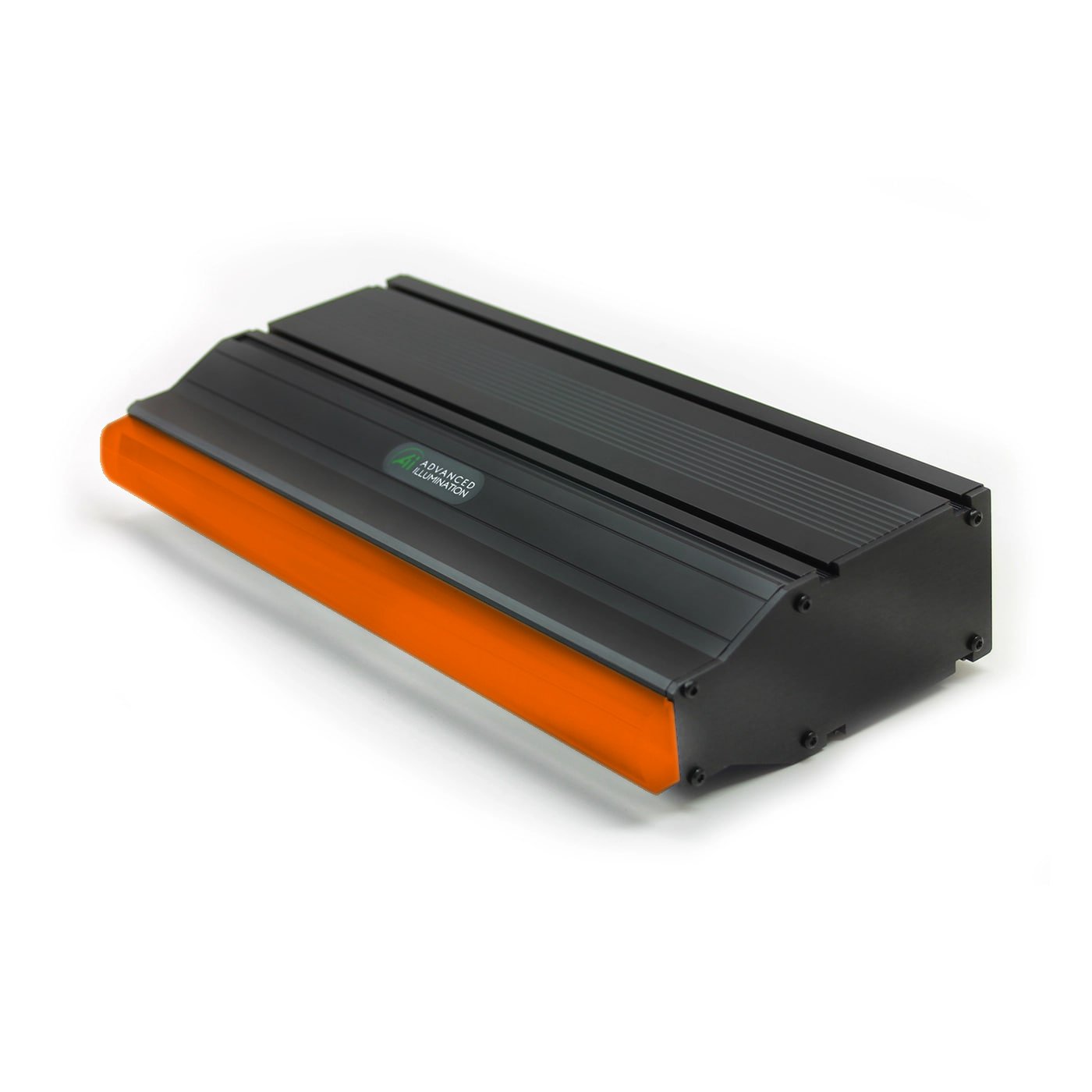

625nm Red Orange

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 LL230 Ultra High Intensity Line Lights Mechanical Specs | Advanced Illumination



Optical Specs

 LL230 Ultra High Intensity Line Lights Optical Specs | Advanced Illumination
LL230 Ultra High Intensity Line Lights Optical Specs | Advanced Illumination
LL230 Ultra High Intensity Line Lights Optical Specs | Advanced Illumination


Electrical Specs

 LL230 Ultra High Intensity Line Lights Electrical Specs | Advanced Illumination


Part No Key

 LL230 Ultra High Intensity Line Lights Part No Key | Advanced Illumination

Advanced Illumination LL230-0750 Downloads:

Advanced Illumination LL230-0750 Datasheet | Machine Vision Direct
Advanced Illumination LL230-0750 CAD PDF | Machine Vision Direct
Advanced Illumination LL230-0750 CAD DXF | Machine Vision Direct
Advanced Illumination LL230-0750 CAD STEP MODEL | Machine Vision Direct
