Ultra High Intensity Line Lights - LL Series
|Ingress Protection||Not Rated|
|Can Be Strobed||No|
|Can Be Overdrive Strobed||No|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Not Dimmable|
|Connection||2M Flying Lead|
This ultra high intensity line light series is built to handle the most extreme line scan lighting requirements.
Provides an intensity level of 2,100 klx (working distance of 75 mm).
Pre-engineered for expandability in 150 mm (6�) increments up to 2400 mm (94.5�).

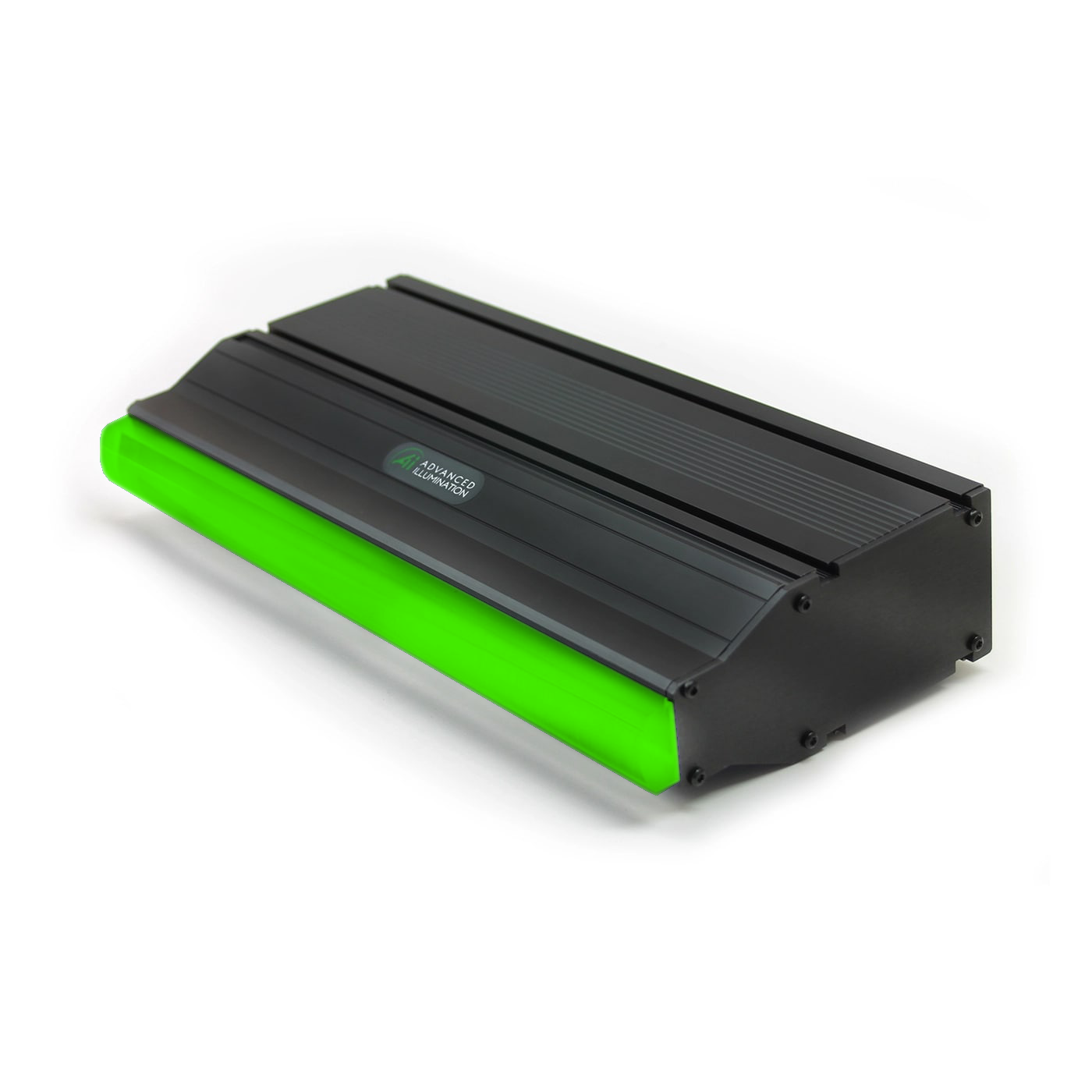

Available in multiple wavelengths.
In the event of abnormally high ambient temperatures, the device automatically shuts down when the housing reaches 60°C and resumes operation at 56°C.
Note: Requires third party power supplies “ refer to spec sheet.
|Electrical Specifications||Please see Electrical Specs|
|Normal Operating Temperature||
0 - 60°C
|Weight||300mm model - 2082.0g (73.4oz) (4.59lbs)|
|Standard Cable Information||No cable included. Please see page 5.|

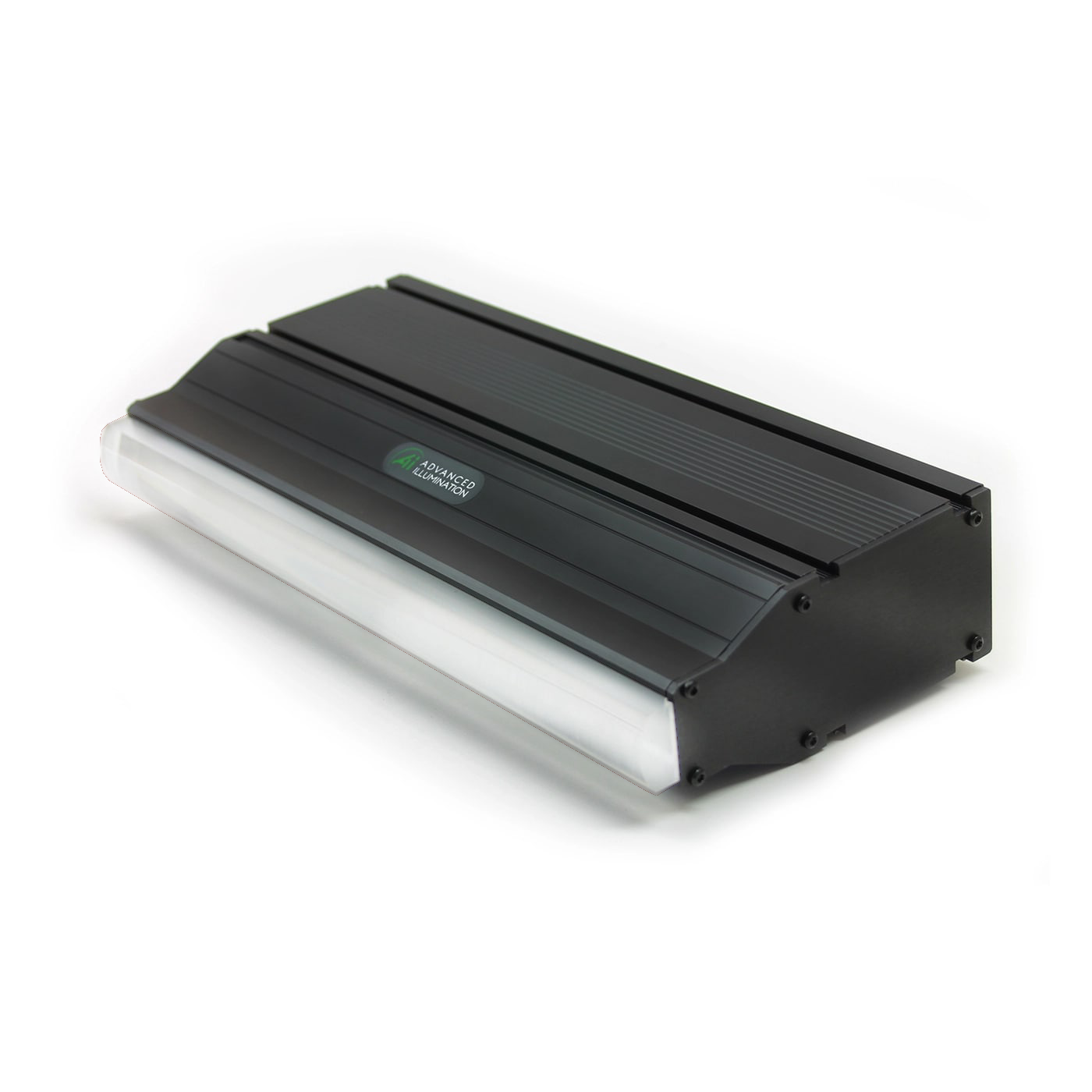

|Photobiological Risk Factor||Group 3 (High-Risk) Applicable Wavelengths: 455, 530, 625, WHI|
|Compliance||CE, RoHS, IEC 62471|
|IP Rating||Not Rated|
|Lumen Maintenance||L70 = 50,000 Hours|

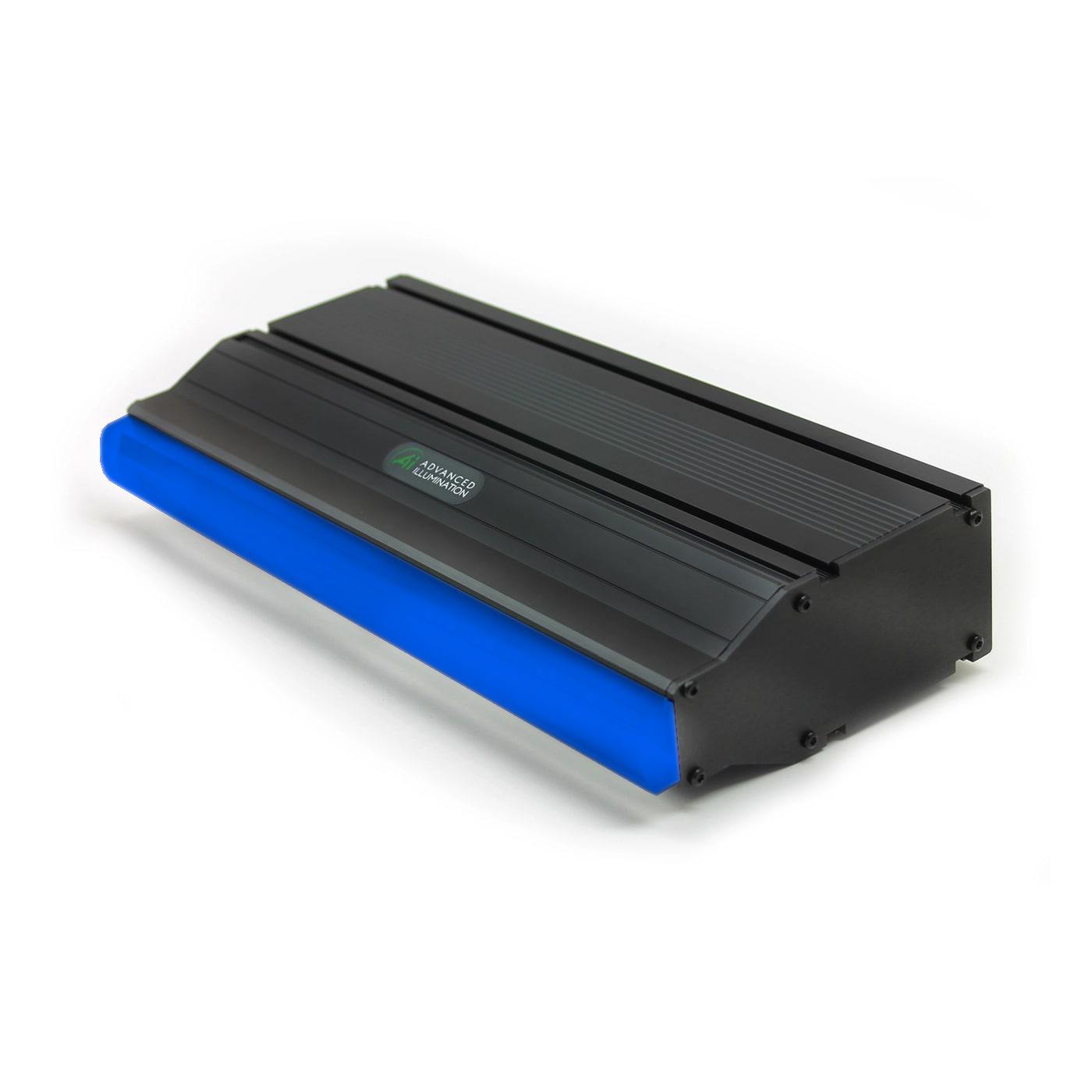

||455nm Royal Blue|

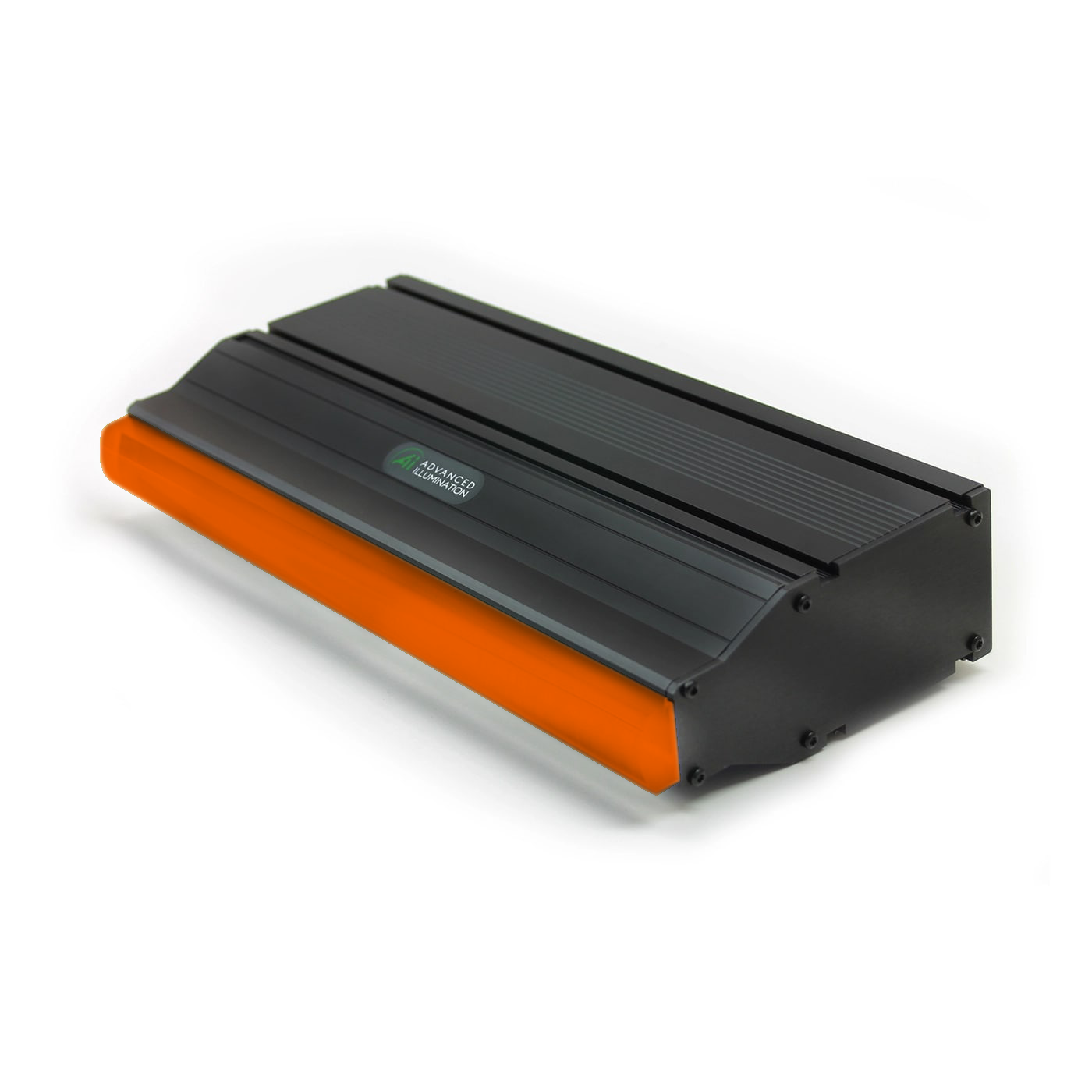

||625nm Red Orange|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination LL230-0300 Downloads:
