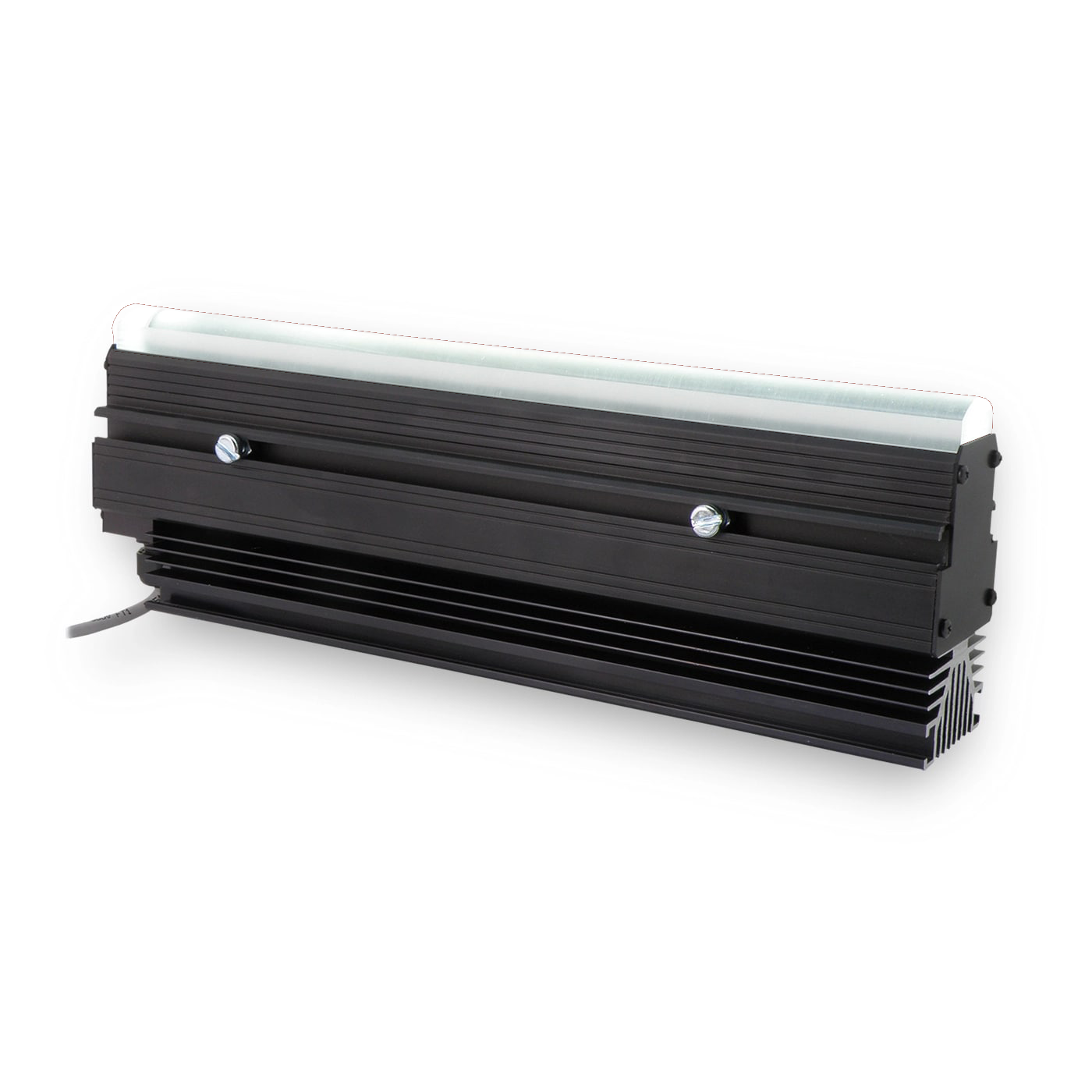

LL167-42 High Intensity White Line Light, 42 in

Advanced IlluminationSKU: LL167D-42WHI24
Lead Time: 2 Weeks

Color: White
Driver: 24 Volt
Lens Position: D
Price:
Sale price$6,198.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

High Intensity White Line Lights - LL Series

LL167-42 Specifications:

Brand Advanced Illumination
Series LL167
Wavelength WHI
Color VARIES
Driver 24
Ingress Protection IP50
Length 42 in
Lens Focus D
Weight 5042g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

The LL167 Series provides a focused line of illumination in a passively cooled design.

Only available in White (for color illumination in a similar package refer to our LL137 Series).

Provides a high intensity level of 472kLux (working distance of 75mm).

Pre-engineered for expandability in 6� (152mm) increments up to 96� (2.44m).

Available intensity control provides illuminance adjustability for every 6³ increment via a 0 “ 10v input

General Specs

Electrical Specifications 0.76A per 6 inches
Normal Operating Temperature

0 - 60°C

Weight Per 12" - 1592g (56.16oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor

Group 1 (Low-Risk) Applicable Wavelengths: WHI

Compliance CE, RoHS, IEC 62471
IP Rating Unsealed - IP50
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 LL167 High Intensity White Line Lights Mechanical Specs | Advanced Illumination



Optical Specs

 LL167 High Intensity White Line Lights Optical Specs | Advanced Illumination
LL167 High Intensity White Line Lights Optical Specs | Advanced Illumination


Electrical Specs

 LL167 High Intensity White Line Lights Electrical Specs | Advanced Illumination

Control Specs

 LL167 High Intensity White Line Lights Control Specs | Advanced Illumination



Part No Key

 LL167 High Intensity White Line Lights Part No Key | Advanced Illumination

Advanced Illumination LL167-42 Downloads:

Advanced Illumination LL167-42 Datasheet | Machine Vision Direct
Advanced Illumination LL167-42 CAD PDF | Machine Vision Direct
Advanced Illumination LL167-42 CAD DXF | Machine Vision Direct
Advanced Illumination LL167-42 CAD STEP MODEL | Machine Vision Direct
