Description

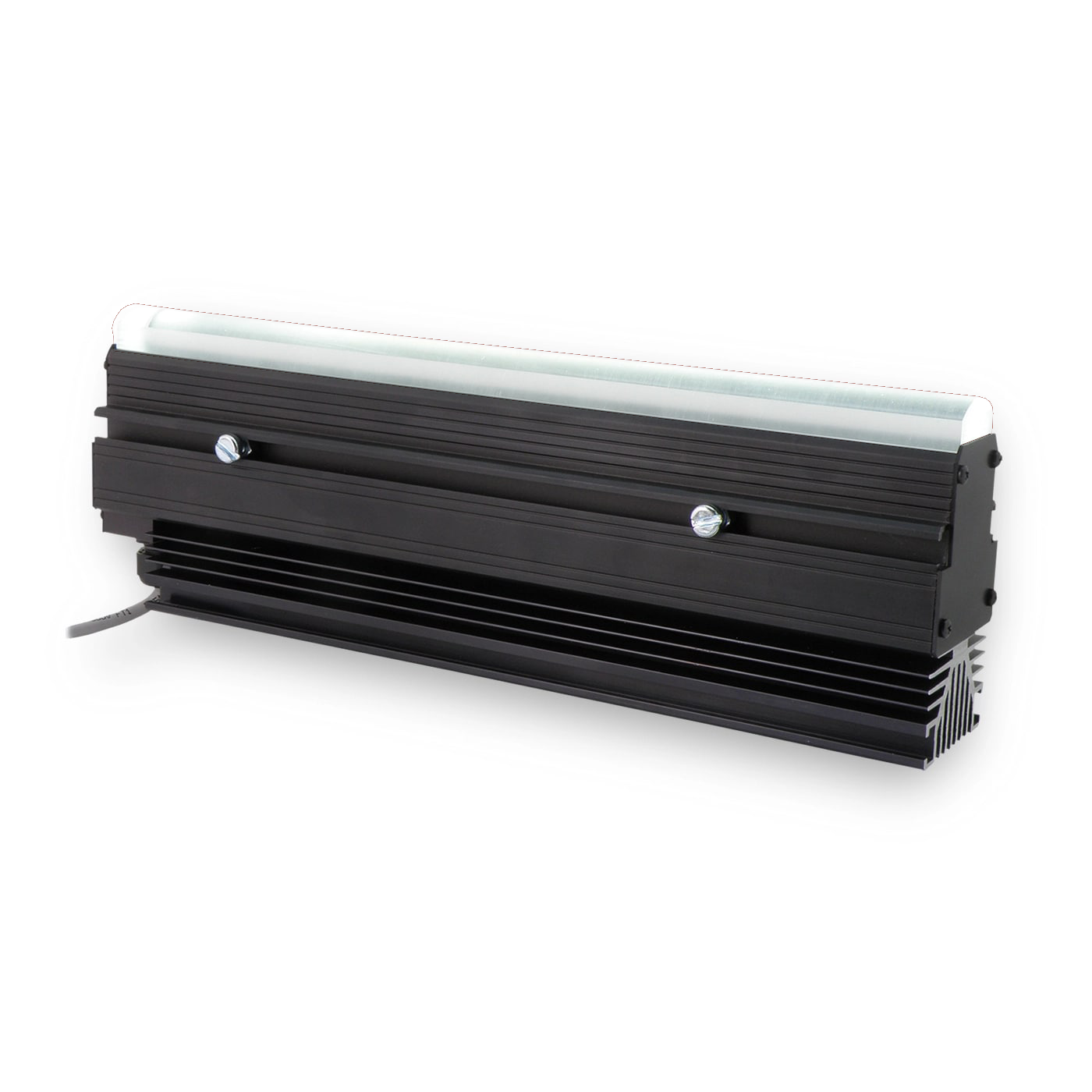

High Intensity White Line Lights - LL Series
LL167-30 Specifications:
Brand | Advanced Illumination |
Series | LL167 |
Wavelength | WHI |
Color | VARIES |
Driver | 24 |
Ingress Protection | IP50 |
Length | 30 in |
Lens Focus | D |
Weight | 3692g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
The LL167 Series provides a focused line of illumination in a passively cooled design.
Only available in White (for color illumination in a similar package refer to our LL137 Series).
Provides a high intensity level of 472kLux (working distance of 75mm).
Pre-engineered for expandability in 6� (152mm) increments up to 96� (2.44m).
Available intensity control provides illuminance adjustability for every 6³ increment via a 0 “ 10v input
General Specs
Electrical Specifications | 0.76A per 6 inches |
Normal Operating Temperature |
0 - 60°C |
Weight | Per 12" - 1592g (56.16oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Group 1 (Low-Risk) Applicable Wavelengths: WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | Unsealed - IP50 |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() |
Optical Specs
![]() |
![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
