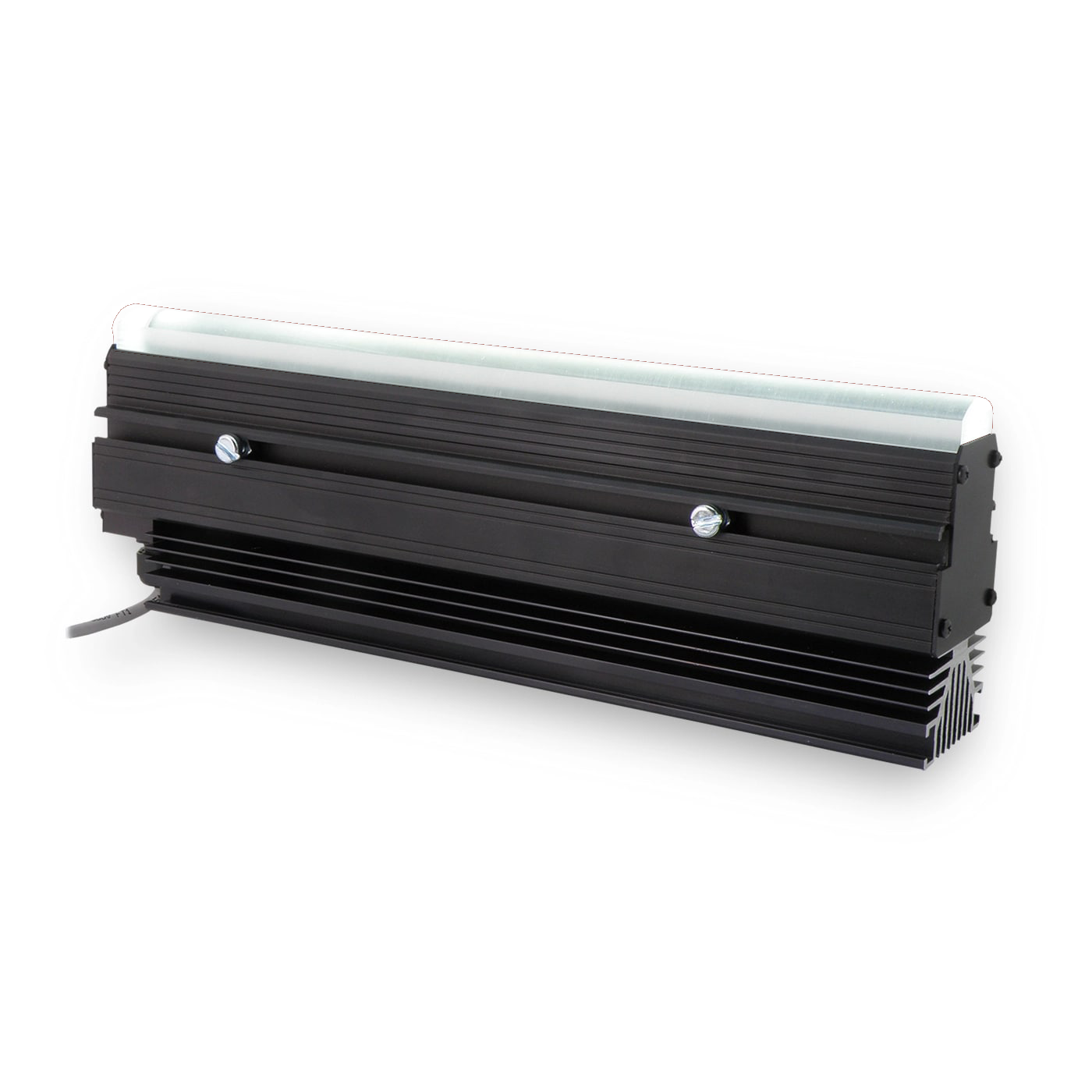

High Intensity White Line Lights - LL Series
|Can Be Strobed||No|
|Can Be Overdrive Strobed||No|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Not Dimmable|
|Connection||2M Flying Lead|
The LL167 Series provides a focused line of illumination in a passively cooled design.
Only available in White (for color illumination in a similar package refer to our LL137 Series).
Provides a high intensity level of 472kLux (working distance of 75mm).
Pre-engineered for expandability in 6� (152mm) increments up to 96� (2.44m).
Available intensity control provides illuminance adjustability for every 6³ increment via a 0 “ 10v input
|Electrical Specifications||0.76A per 6 inches|
|Normal Operating Temperature||
0 - 60°C
|Weight||Per 12" - 1592g (56.16oz)|
|Standard Cable Information||2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.|
|Photobiological Risk Factor||
Group 1 (Low-Risk) Applicable Wavelengths: WHI
|Compliance||CE, RoHS, IEC 62471|
|IP Rating||Unsealed - IP50|
|Lumen Maintenance||L70 = 50,000 Hours|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination LL167-12 Downloads:
