Classic Line Lights - DL Series
|Can Be Strobed||Yes|
|Can Be Overdrive Strobed||Yes|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Dimmable|
|Connection||2M Flying Lead|

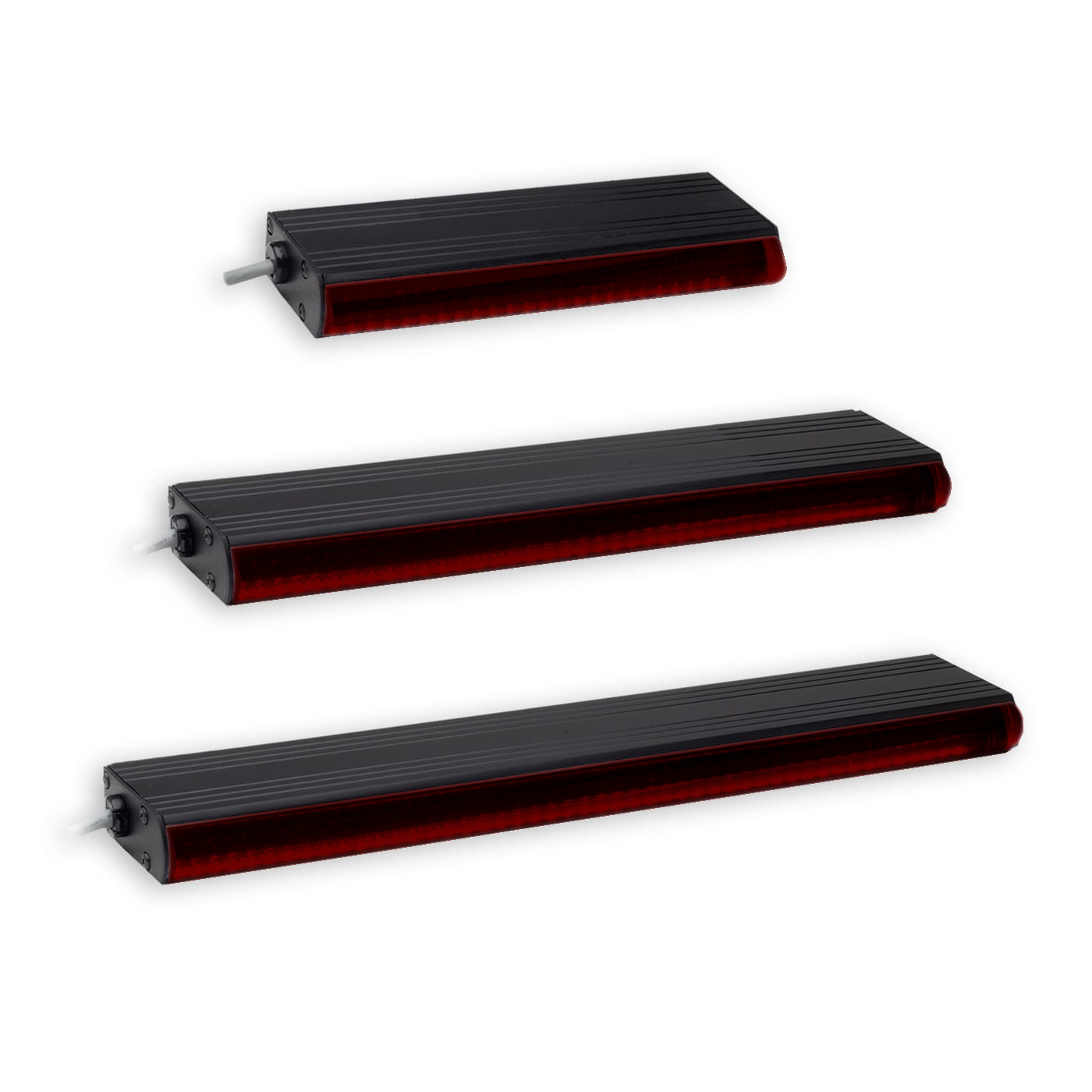

Our classic LL163 Line Lights are suitable for low intensity, low speed line scan applications.
These line lights are well established and have proven reliability.
Provides a intensity level of 24kLux (working distance of 25mm).
Available in 7 wavelengths including 395nm (UV) and 880nm (IR).
Pre-engineered for expandability in 1.5� (38.1mm) increments up to 81� (2.06m).
LL163 derivatives include LL2912 (3�), LL3024 (6�) and LL3148 (12�) (which represent legacy part numbers)
|Electrical Specifications||0.03A per 1.5"|
|Normal Operating Temperature||
0 - 60°C
|Weight||Per 3" - 226.8g (8.0oz)|
|Standard Cable Information||2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.|
|Photobiological Risk Factor||
Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 625, 660, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 395
|Compliance||CE, RoHS, IEC 62471|
|Lumen Maintenance||L70 = 50,000 Hours|
||395nm Ultra-Violet (UV)|
||625nm Red Orange|
||880nm Infra-Red (IR)|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination LL163E006-880I3S Downloads:
