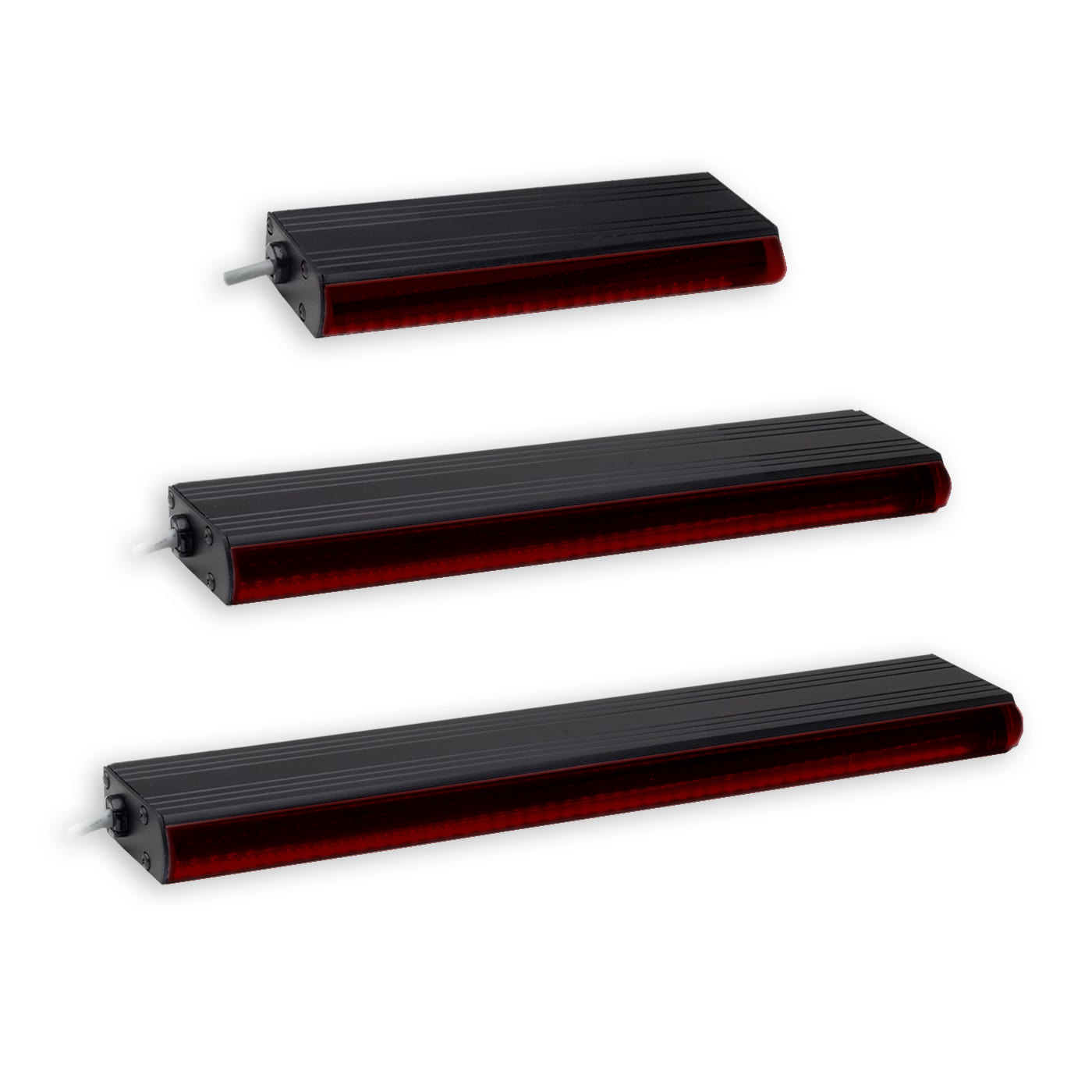

LL163D042-880I3S Classic Line Light, 880nm Infra-Red (IR), 042 in, ICS 3S (I3S) Driver

Advanced IlluminationSKU: LL163D042-880I3S
Lead time: 2 Weeks

Price:
Sale price$1,350.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Description

Classic Line Lights - DL Series

LL163D042-880I3S Specifications:

Brand Advanced Illumination
Series LL163
Wavelength 880
Color Infra-Red (IR)
Driver I3S
Ingress Protection IP50
Length 042 in
Lens Focus D
Weight 263g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

Our classic LL163 Line Lights are suitable for low intensity, low speed line scan applications.

These line lights are well established and have proven reliability.

Provides a intensity level of 24kLux (working distance of 25mm).

Available in 7 wavelengths including 395nm (UV) and 880nm (IR).

Pre-engineered for expandability in 1.5� (38.1mm) increments up to 81� (2.06m).

LL163 derivatives include LL2912 (3�), LL3024 (6�) and LL3148 (12�) (which represent legacy part numbers)

General Specs

Electrical Specifications 0.03A per 1.5"
Normal Operating Temperature

0 - 60°C

Weight Per 3" - 226.8g (8.0oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 625, 660, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 395
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
470
Advanced Illumination 470nm Blue Light
470nm Blue
520
Advanced Illumination 520nm Green Light
520nm Green
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
880
Advanced Illumination 880nm Infra-Red (IR) Light
880nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 LL163 Classic Line Lights Mechanical Specs | Advanced Illumination



 Optical Specs

 LL163 Classic Line Lights Optical Specs | Advanced Illumination
LL163 Classic Line Lights Optical Specs | Advanced Illumination


Electrical Specs

 LL163 Classic Line Lights Electrical Specs | Advanced Illumination



Control Specs

 LL163 Classic Line Lights Control Specs | Advanced Illumination



Part No Key

 LL163 Classic Line Lights Part No Key | Advanced Illumination


Advanced Illumination LL163D042-880I3S Downloads:

Advanced Illumination LL163D042-880I3S Datasheet | Machine Vision Direct
Advanced Illumination LL163D042-880I3S CAD PDF | Machine Vision Direct
Advanced Illumination LL163D042-880I3S CAD DXF | Machine Vision Direct
Advanced Illumination LL163D042-880I3S CAD STEP MODEL | Machine Vision Direct
