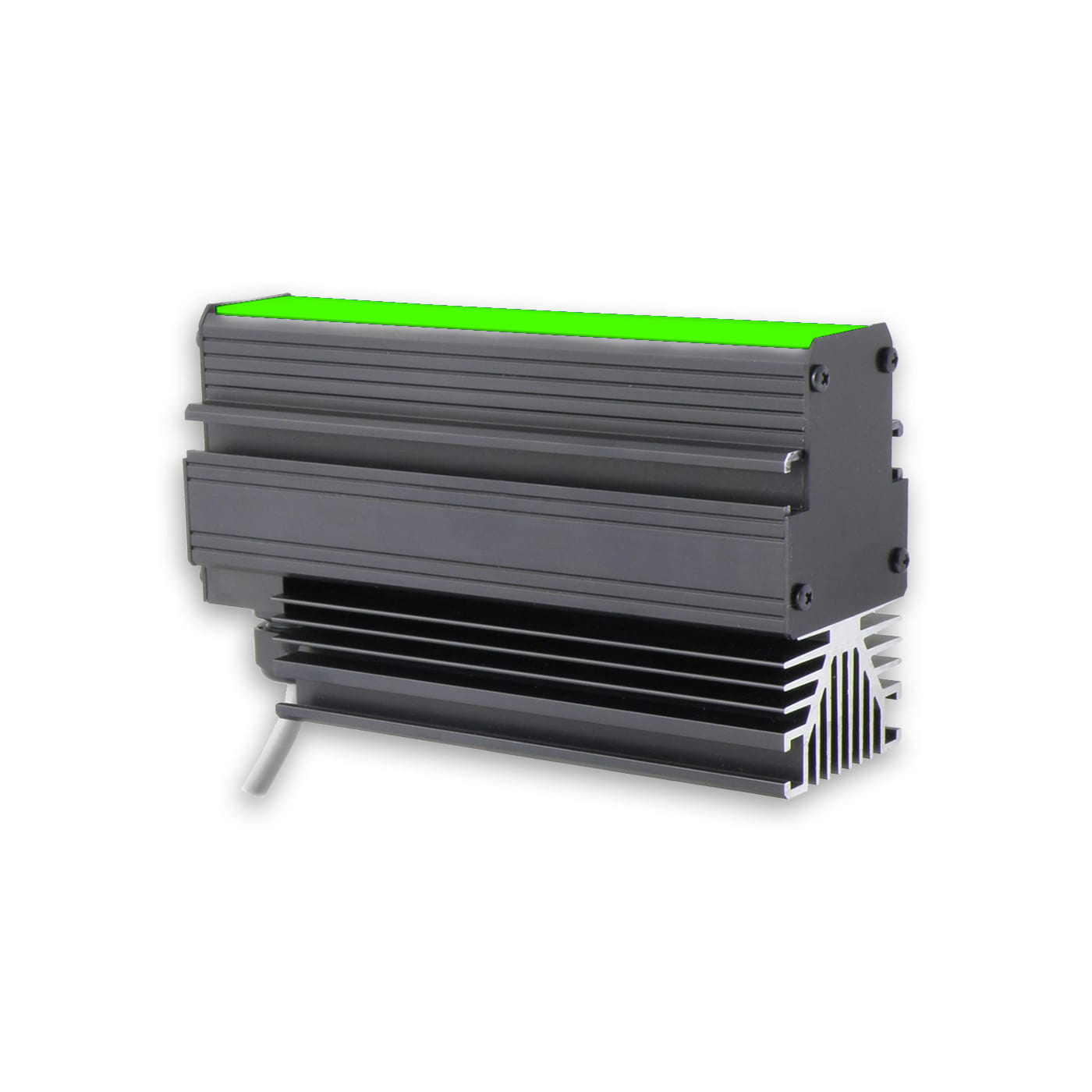

LL15842-53024 Oblique Line Light, 530nm Green, 42 in, 24 Volt Driver

Advanced IlluminationSKU: LL15842-53024
Lead Time: 2 Weeks

Price:
Sale price$6,160.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Oblique Line Lights - LL Series

LL15842-53024 Specifications:

Brand Advanced Illumination
Series LL158
Wavelength 530
Color Green
Driver 24
Ingress Protection IP50
Length 42 in
Weight 4648g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

The LL158 Series produces an oblique (30°) line of illumination for line scan applications in a passively cooled design.

When oriented across a moving web or conveyor line, unlike standard line lights, this linear light™s unique geometry highlights engraved or raised lines that run parallel to the material travel.

Provides an intensity level of 53kLux (working distance of 75mm).

Pre-engineered for expandability in 6� (152mm) increments up to 90� (2.28m).

Available intensity control provides illuminance adjustability for every 6³ increment via a 0 “ 10v input.

General Specs

Electrical Specifications 0.76 A per 6"
Normal Operating Temperature

0 - 60°C

Weight 1211.1g (42.72oz) Per 12"
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated jacket, foil shield with drain.
Photobiological Risk Factor Group 1 (Low Risk) Applicable Wavelengths: 470, 530, 625, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
470
Advanced Illumination 470nm Blue Light
470nm Blue
530
Advanced Illumination 530nm Green Light
530nm Green
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 LL158 Oblique Line Lights Mechanical Specs | Advanced Illumination



 Optical Specs

 LL158 Oblique Line Lights Optical Specs | Advanced Illumination
LL158 Oblique Line Lights Optical Specs | Advanced Illumination


Electrical Specs

 LL158 Oblique Line Lights Electrical Specs | Advanced Illumination


Control Specs

 LL158 Oblique Line Lights Control Specs | Advanced Illumination



Part No Key

 LL158 Oblique Line Lights Part No Key | Advanced Illumination

Advanced Illumination LL15842-53024 Downloads:

Advanced Illumination LL15842-53024 Datasheet | Machine Vision Direct
Advanced Illumination LL15842-53024 CAD PDF | Machine Vision Direct
Advanced Illumination LL15842-53024 CAD DXF | Machine Vision Direct
Advanced Illumination LL15842-53024 CAD STEP MODEL | Machine Vision Direct
