Oblique Line Lights - LL Series
|Can Be Strobed||No|
|Can Be Overdrive Strobed||No|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Not Dimmable|
|Connection||2M Flying Lead|

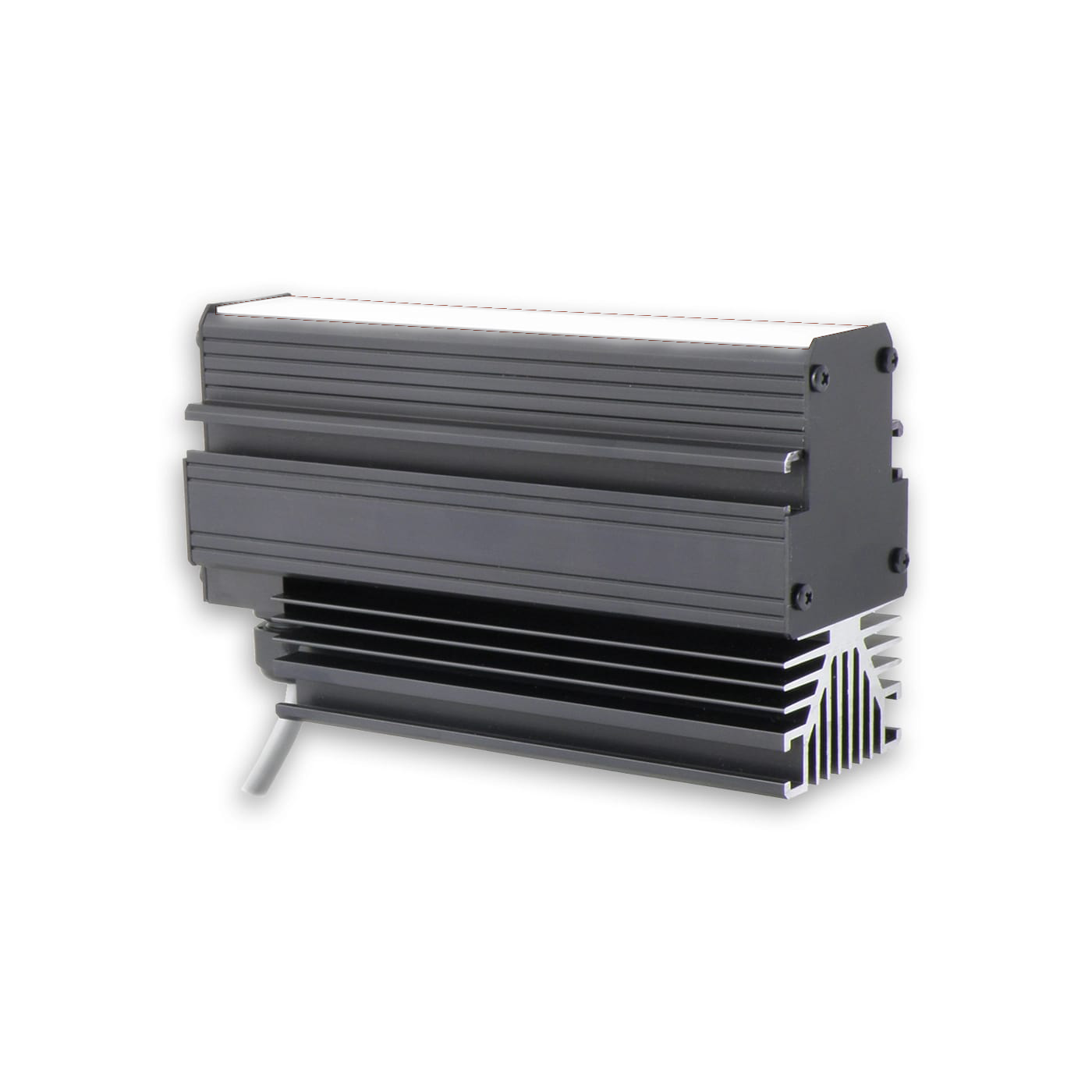

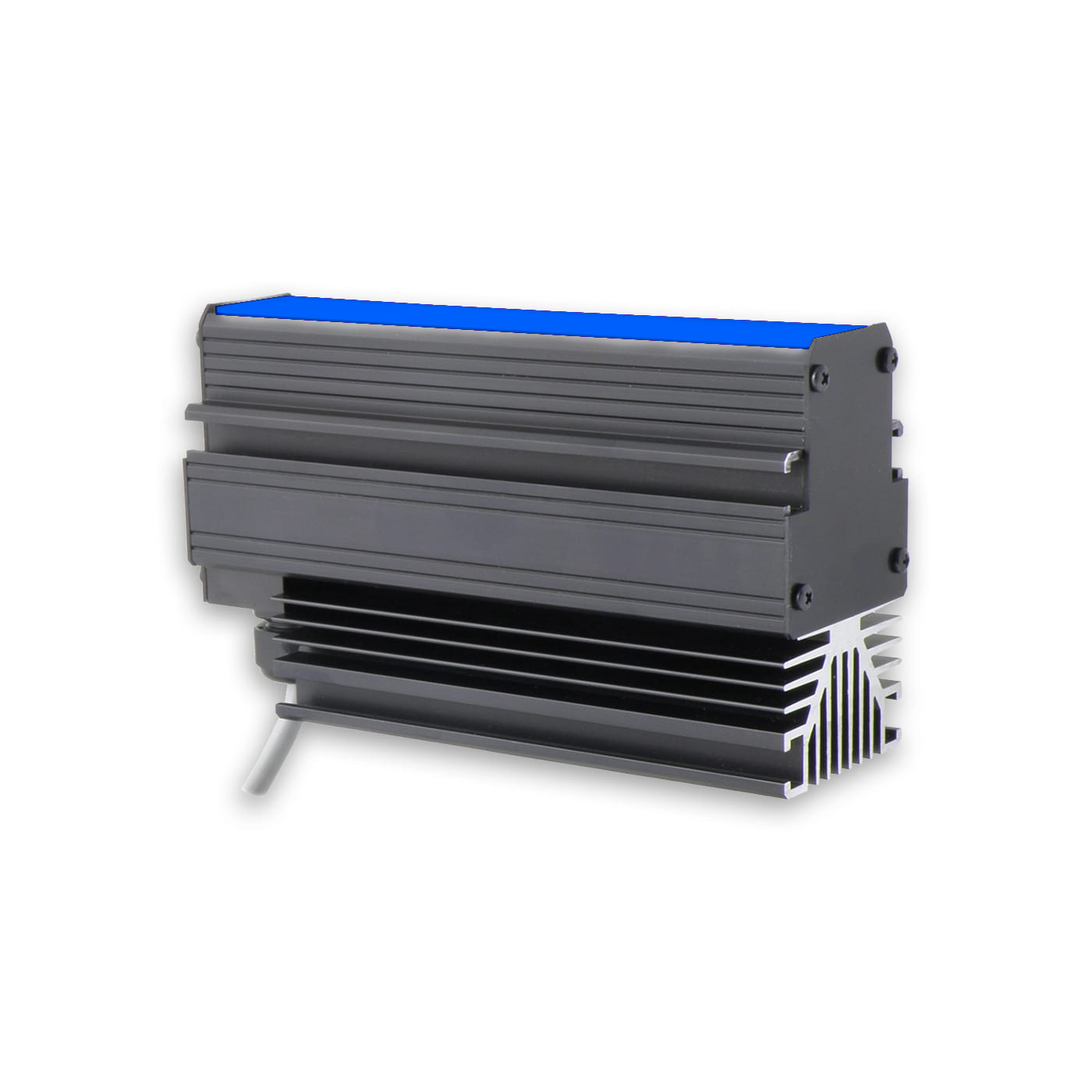

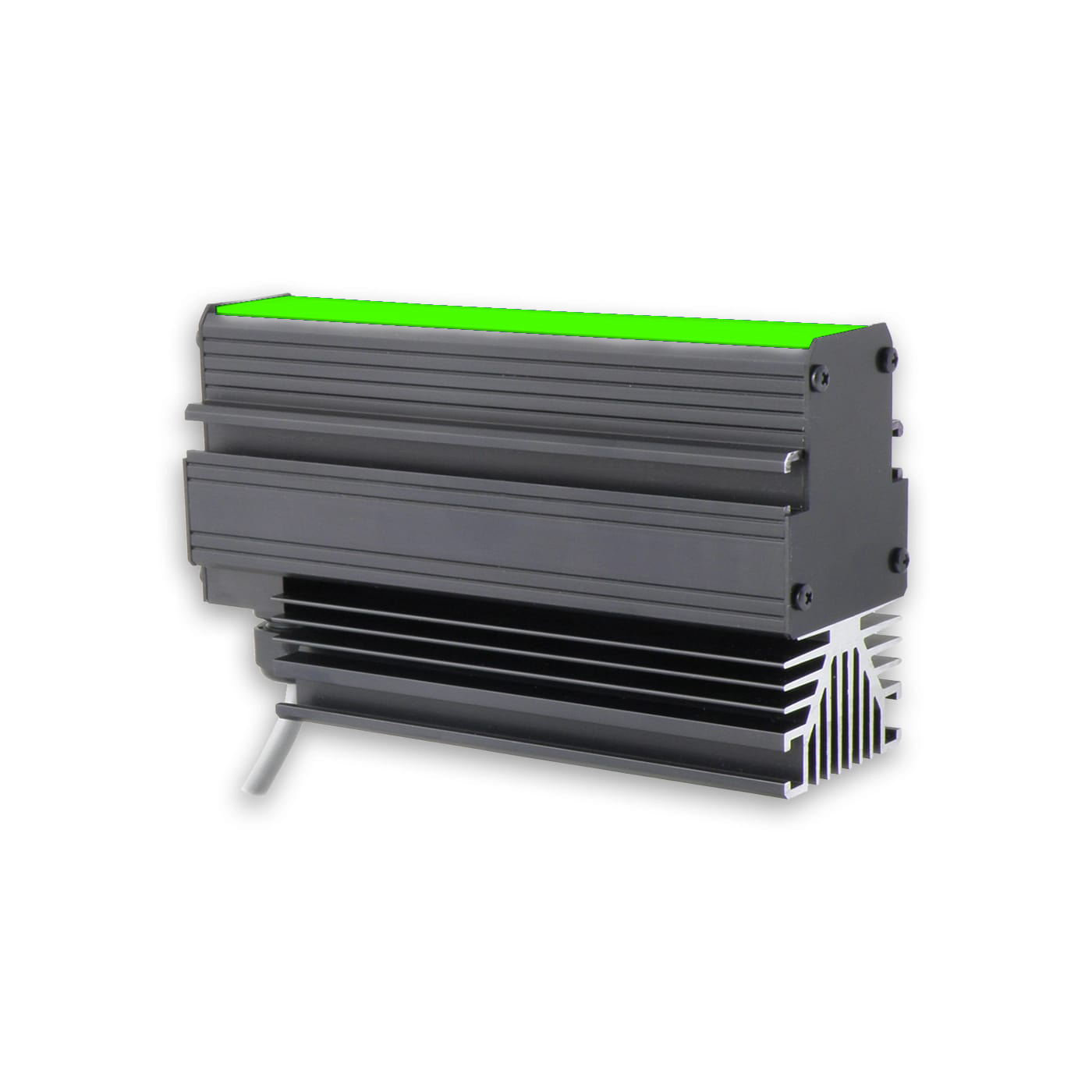

The LL158 Series produces an oblique (30°) line of illumination for line scan applications in a passively cooled design.
When oriented across a moving web or conveyor line, unlike standard line lights, this linear light™s unique geometry highlights engraved or raised lines that run parallel to the material travel.
Provides an intensity level of 53kLux (working distance of 75mm).
Pre-engineered for expandability in 6� (152mm) increments up to 90� (2.28m).
Available intensity control provides illuminance adjustability for every 6³ increment via a 0 “ 10v input.
|Electrical Specifications||0.76 A per 6"|
|Normal Operating Temperature||
0 - 60°C
|Weight||1211.1g (42.72oz) Per 12"|
|Standard Cable Information||2 m long -0/+150 mm (80" -0/+6") - 105°C rated jacket, foil shield with drain.|
|Photobiological Risk Factor||Group 1 (Low Risk) Applicable Wavelengths: 470, 530, 625, WHI|
|Compliance||CE, RoHS, IEC 62471|
|Lumen Maintenance||L70 = 50,000 Hours|
||625nm Red Orange|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination LL15818 Downloads:
