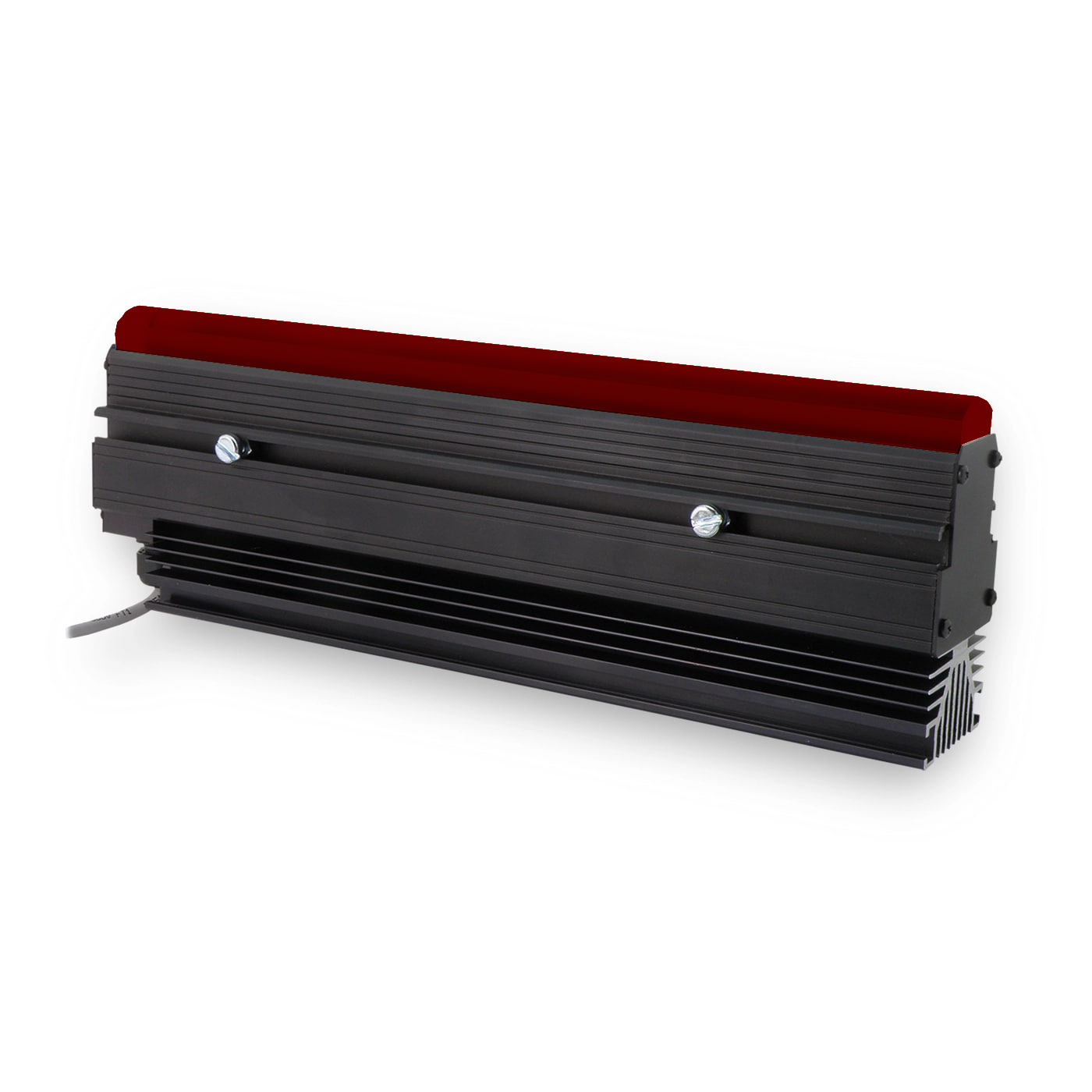

LL137F-4885024 Medium Intensity Line Light, 850nm Infra-Red (IR), 48 in, 24 Volt Driver

Advanced IlluminationSKU: LL137F-4885024
Lead Time: 2 Weeks

Price:
Sale price$7,116.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Medium Intensity Line Lights - LL Series

LL137F-4885024 Specifications:

Brand Advanced Illumination
Series LL137
Wavelength 850
Color Infra-Red (IR)
Driver 24
Ingress Protection IP50
Length 48 in
Lens Focus F
Weight 5713g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

The LL137 Series provides a focused line of illumination in a passively cooled design.

Provides a medium intensity level of 280kLux (working distance of 75mm)

Pre-engineered for expandability in 6� (152mm) increments up to 96� (2.44m).

Available intensity control provides illuminance adjustability for every 6³ increment via a 0 “ 10v input

Note: If only looking for white illumination, our LL167 Series provides a 74% brighter beam in a similar package.

General Specs

Electrical Specifications 0.75A per 6 inches
Normal Operating Temperature

0 - 60°C

Weight Per 12" - 1592.1g (56.16oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850
Group 1 (Low-Risk) Applicable Wavelengths: 455, 530, 625, WHI, RGB
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue
530
Advanced Illumination 530nm Green Light
530nm Green
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 LL137 Medium Intensity Line Lights Mechanical Specs | Advanced Illumination



Optical Specs

 LL137 Medium Intensity Line Lights Optical Specs | Advanced IlluminationLL137 Medium Intensity Line Lights Optical Specs | Advanced Illumination


Electrical Specs

 LL137 Medium Intensity Line Lights Electrical Specs | Advanced Illumination

Control Specs

 LL137 Medium Intensity Line Lights Control Specs | Advanced Illumination



Part No Key

 LL137 Medium Intensity Line Lights Part No Key | Advanced Illumination

Advanced Illumination LL137F-4885024 Downloads:

Advanced Illumination LL137F-4885024 Datasheet | Machine Vision Direct
Advanced Illumination LL137F-4885024 CAD PDF | Machine Vision Direct
Advanced Illumination LL137F-4885024 CAD DXF | Machine Vision Direct
Advanced Illumination LL137F-4885024 CAD STEP MODEL | Machine Vision Direct
