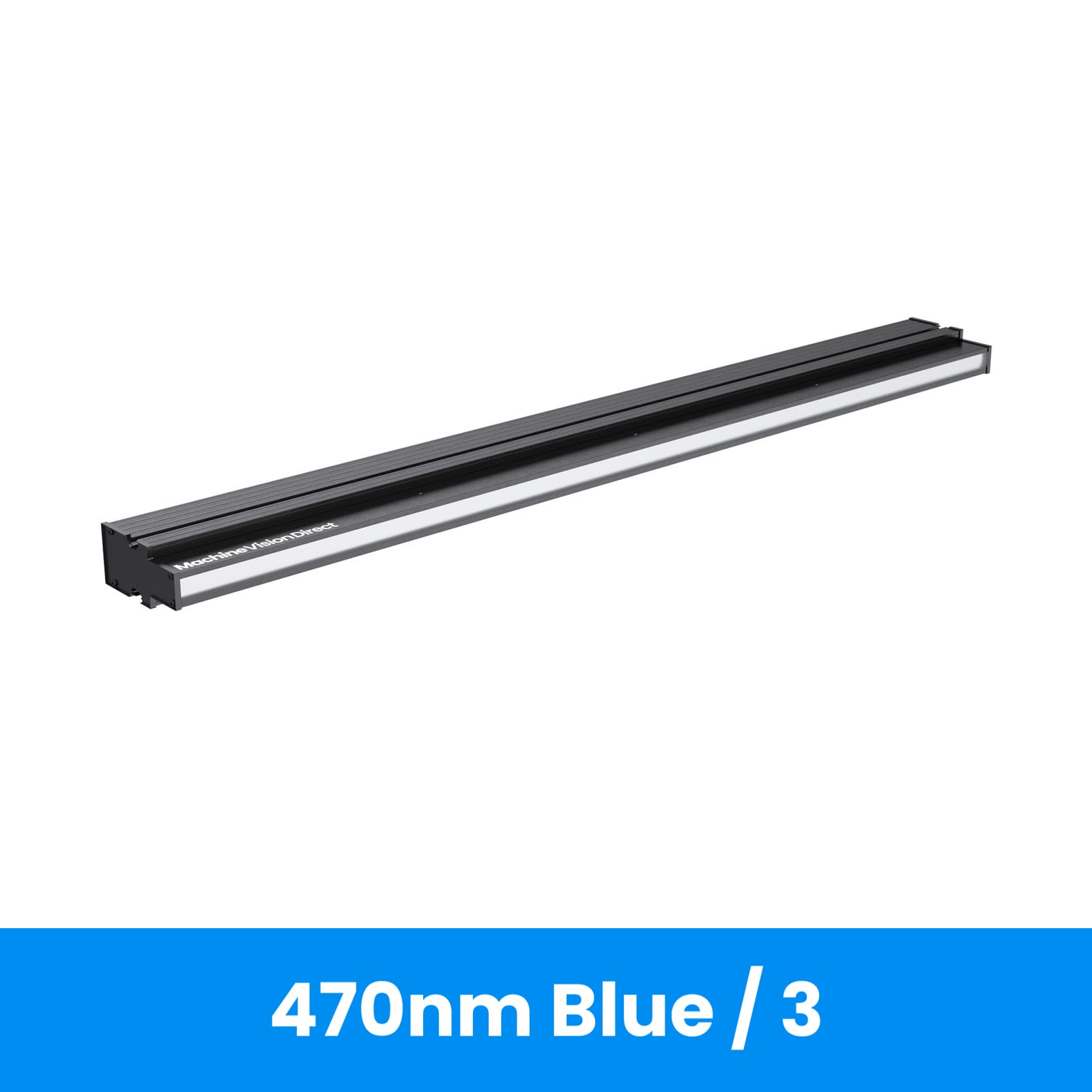

LCHPX1200-470-3 | LCHPX1200 Line Scan Light, 1200mm, 470nm Blue, Lens Position 3

Smart Vision LightsSKU: SVL LCHPX1200-470-3
Lead Time: 3 Business Days

Price:
Sale price$4,635.00 USD

Shipping calculated at checkout

Downloads

Accessories

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

The LCHPX1200-470-3 line scan light from Smart Vision Lights is part of SVL's LCHPX series of low-cost, high-powered line scan lights capable of intense output without the need for fans. This model is 1200mm long and has its lens factory installed in position 3 and is in the 470nm Blue color. The LCHPX series is available in White, 365 UV, 470nm Blue, 625nm Red, and 850nm IR as standard variants. Further customizations can be performed upon request from Machine Vision Direct.

The light features a 5 Pin M12 Male Connector on the end of the light. We recomend our 5PM12 series of cables (5PM12-5, 5PM12-10, or 5PM12-15). Standard M12 cables may not be able to handle the current that these lights require.

LCHPX Lens Option

Type

Recommended Working Distance

Beam Width

1

Converging

35 mm

2.5 mm

2

Converging

50 mm

3.0 mm

3

Collimated

100 mm +

4.5 mm

4

Collimated

100 mm +

8.0 mm

Technical Specifications
