Kowa LM8JCM-V 8 mm 2/3″ f/1.4 - f/16 C-Mount Fixed Focal Length Lens

Save $133.00
KowaSKU: LM8JCM-V
Lead Time: Not Specified

Price:
Sale price$245.00 USD Regular price$378.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective originally as of 05/30/25. Updated 06/04/25, 6/24/25. Pricing is subject to change and may fluctuate.

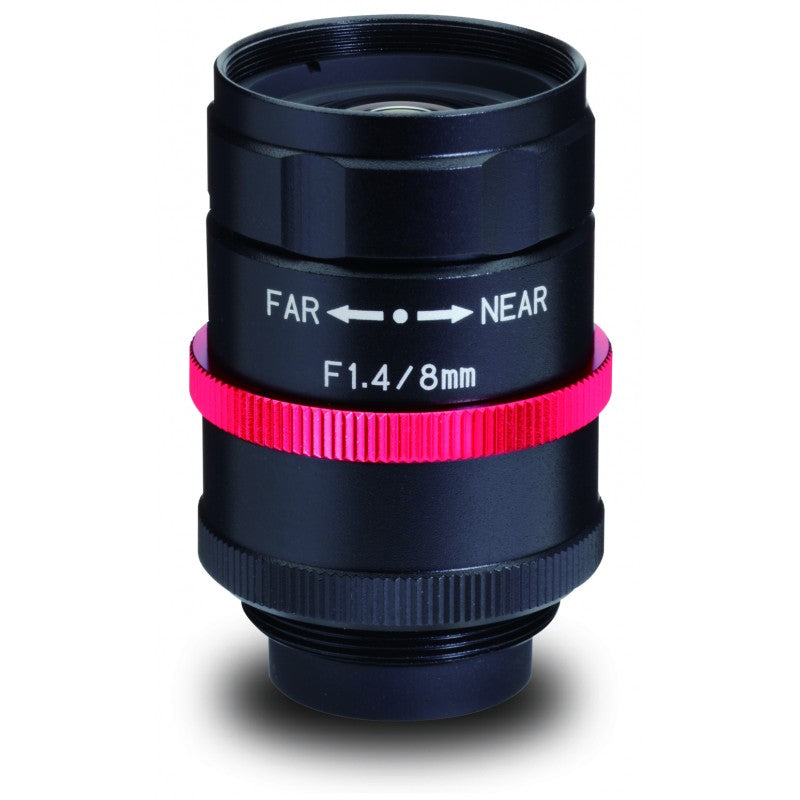

Kowa LM8JCM-V

The Kowa JCM-V series is made for use in high-vibration and high-shock environments. With a design based on Kowa's standard 2/3″ JCM lenses, this new ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance.

LM8JCM-V Technical Specifications:

Product Line / Series JCM-V
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 8 mm
ƒ/N ƒ/1.4 - ƒ/16
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 2
Resolution (Pixel Size) 4.5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 100
Weight 88 Grams
Mount C-Mount
Filter Thread M27-0.5
Minimum Object Distance 100 mm
Front Diameter 17.5 mm
Rear Effective Diameter 15.6 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.1 m - ∞
Back Focal Length 9.74 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 33 × 33 × 41.6 mm
Shooting Range at MOD 120.3(H)×90.0(V)
TV Distortion (%) −0.6
Angle of View @ 1/1.8″ 47.4° × 36.3°
Angle of View @ 1/2″ 42.6° × 32.5°
Angle of View @ 2/3″ 56.5° × 43.9°
