Description

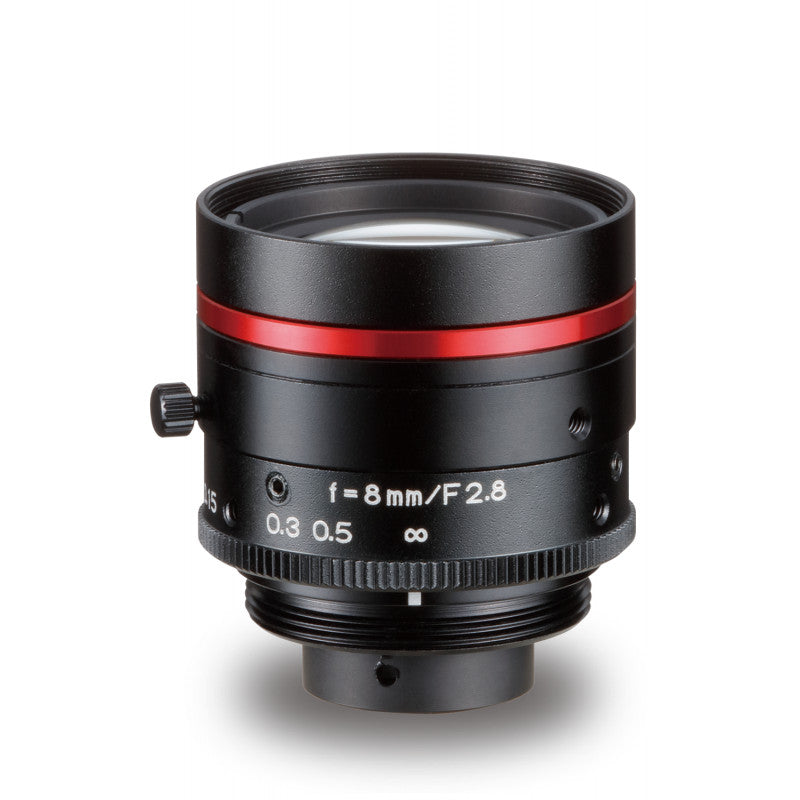

Kowa LM8JC5MC
Kowa's JC5M2 lens series is perfect for high-end applications that require 5-megapixel cameras. With a fast ƒ-stop, locking screws, and a compact design, these lenses provide a good value between price and performance. The JC5M2 lenses are compact, lightweight, and have a fast ƒ-stop of ƒ1.4.
LM8JC5MC Technical Specifications:
Product Line / Series | JC5MC |
Lens Type | Fixed Focal Length |
IP Rating | Not Specified |
Focal Length | 8 mm |
ƒ/N | ƒ/2.8 - ƒ/16 |
Image Circle Diameter | 11 mm |
Image Size Dimensions | 8.8 mm x 6.6 mm |
Imager Format | 2/3″ |
Light Spectrum | Visible |
Resolution (MP) | 5 |
Resolution (Pixel Size) | 3.45 μm |
Resolution (Line Pairs per mm @ Center) | 160 |
Resolution (Line Pairs per mm @ Corner) | 125 |
Weight | 55 Grams |
Mount | C-Mount |
Filter Thread | M30.5-0.5 |
Minimum Object Distance | 150 mm |
Magnification | 0.05× |
Minimum Object Distance with 1mm Ring | 35 mm |
Magnification with 1mm Ring | 0.18× |
Front Diameter | 21.5 mm |
Rear Effective Diameter | 11.9 mm |
Focus Control | Manual |
Iris Control | Manual |
Focus Range | 0.15 m - ∞ |
Back Focal Length | 10.8 mm in air |
Operating Temperature Range | -10 to +50 °C |
Storage Temperature Range | -20 to +60 °C |
Dimensions | 32 × 32 × 27 mm |
Shooting Range at MOD | 178.0(H)×132.0(V) |
TV Distortion (%) | -0.85 |
Angle of View @ 1/1.8″ | 48.1° × 36.7° |
Angle of View @ 1/2″ | 43.1° × 32.8° |
Angle of View @ 2/3″ | 57.6° × 44.4° |
