Description

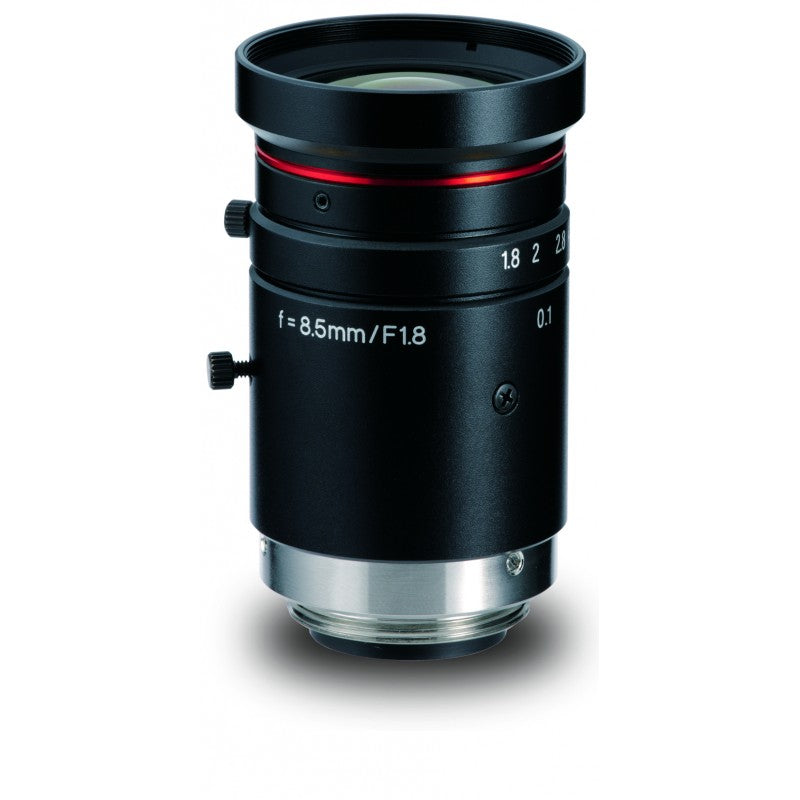

Kowa LM8JC10M
The 2/3″ 10 megapixel JC10M lens series provides 200lp/mm resolution and low distortion to maximize performance for high-end applications. Incorporating Kowa's broadband coating and floating mechanism design, the JC10M lens series dramatically reduces chromatic aberration at any distance and maintains a high transmission from visible to NIR.
LM8JC10M Technical Specifications:
Product Line / Series | JC10M |
Lens Type | Fixed Focal Length |
IP Rating | Not Specified |
Focal Length | 8.5 mm |
ƒ/N | ƒ/1.8 - ƒ/22 |
Image Circle Diameter | 11 mm |
Image Size Dimensions | 8.8 mm x 6.6 mm |
Imager Format | 2/3″ |
Light Spectrum | Visible |
Resolution (MP) | 10 |
Resolution (Pixel Size) | 2.5 μm |
Resolution (Line Pairs per mm @ Center) | 200 |
Resolution (Line Pairs per mm @ Corner) | 160 |
Weight | 115 Grams |
Mount | C-Mount |
Filter Thread | M34-0.5 |
Minimum Object Distance | 100 mm |
Magnification | 0.07× |
Minimum Object Distance with 1mm Ring | 20 mm |
Magnification with 1mm Ring | 0.2× |
Front Diameter | 26.7 mm |
Rear Effective Diameter | 13.1 mm |
Focus Control | Manual |
Iris Control | Manual |
Focus Range | 0.1 m - ∞ |
Back Focal Length | 12.1 mm in air |
Operating Temperature Range | -10 to +50 °C |
Storage Temperature Range | -20 to +60 °C |
Dimensions | 36 × 36 × 56 mm |
Shooting Range at MOD | 133.2(H)×99.6(V) |
TV Distortion (%) | 0.31 |
Angle of View @ 1/1.8″ | 45.3° × 34.8° |
Angle of View @ 1/2″ | 40.8° × 31.2° |
Angle of View @ 2/3″ | 54.0° × 41.9° |
