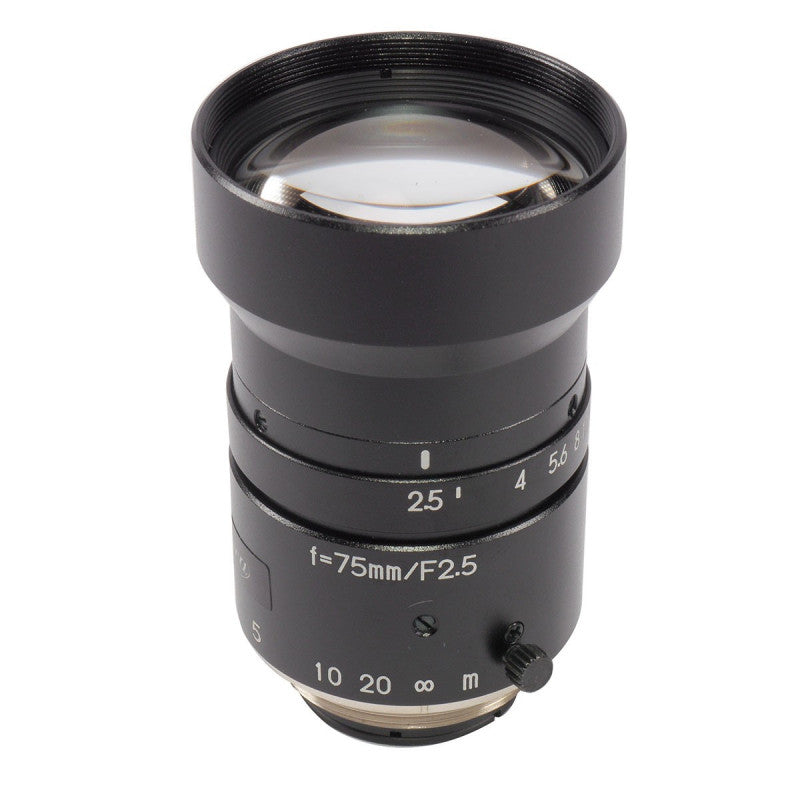

Kowa LM75JC1MS 75 mm 2/3″ f/2.5 - f/22 C-Mount Fixed Focal Length Lens

Save $73.00
KowaSKU: LM75JC1MS
Lead Time: Not Specified

Price:
Sale price$195.00 USD Regular price$268.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 05/30/25, 06/04/25, 6/24/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Kowa LM75JC1MS

Kowa's JC5MC series lenses are ultra-compact 2/3″ 5-megapixel lenses for C-Mount. These are small, lightweight, robust, and vibration-resistant.

LM75JC1MS Technical Specifications:

Product Line / Series JCM
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 75 mm
ƒ/N ƒ/2.5 - ƒ/22
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 2
Resolution (Pixel Size) 5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 80
Weight 105 Grams
Mount C-Mount
Filter Thread M34-0.5
Minimum Object Distance 1200 mm
Magnification 0.07×
Minimum Object Distance with 1mm Ring 1010 mm
Minimum Object Distance with 5mm Ring 630 mm
Minimum Object Distance with 10mm Ring 440 mm
Minimum Object Distance with 20mm Ring 285 mm
Magnification with 1mm Ring 0.08×
Magnification with 5mm Ring 0.13×
Magnification with 10mm Ring 0.2×
Magnification with 20mm Ring 0.34×
Front Diameter 30.2 mm
Rear Effective Diameter 12.4 mm
Focus Control Manual
Iris Control Manual
Focus Range 1.2 m - ∞
Back Focal Length 18 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 36 × 36 × 51 mm
Shooting Range at MOD 132.6(H)×99.6(V)
TV Distortion (%) −0.1
Angle of View @ 1/1.8″ 5.5° × 4.1°
Angle of View @ 1/2″ 4.9° × 3.7°
Angle of View @ 2/3″ 6.7° × 5.0°
