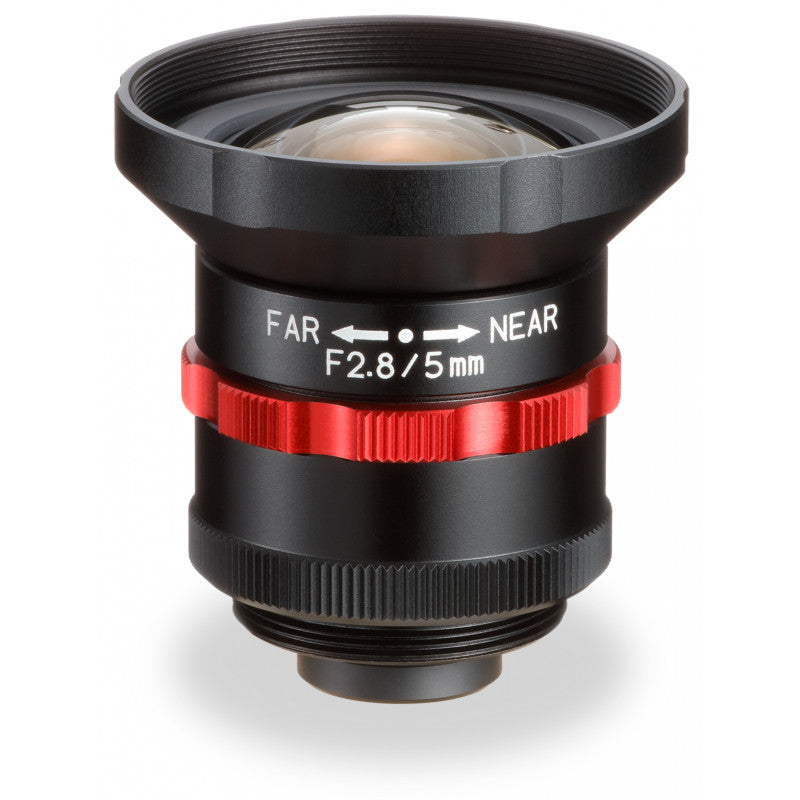

Kowa LM5JCM-WP 5 mm 2/3″ f/2.8 - f/8 C-Mount Fixed Focal Length Lens

Save $285.00
KowaSKU: LM5JCM-WP
Lead Time: Not Specified

Price:
Sale price$753.00 USD Regular price$1,038.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. Updated 05/30/25, 06/04/25, 6/24/25, and 10/23/25. Pricing is subject to change and may fluctuate.

Kowa LM5JCM-WP

The JCM-WP series utilizes Kowa's latest technology to protect against extreme environments ranging from high vibration/shock to damp/wet conditions. With optical specs based on Kowa's standard 2/3″ JCM series lenses, these ruggedized waterproof megapixel lenses are ideal for applications that require increased durability and superior optical performance.

LM5JCM-WP Technical Specifications:

Product Line / Series JCM-WP
Lens Type Fixed Focal Length
IP Rating IP67
Focal Length 5 mm
ƒ/N ƒ/2.8 - ƒ/8
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 2
Resolution (Pixel Size) 4.5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 100
Weight 75 Grams
Mount C-Mount
Filter Thread M40.5-0.5
Minimum Object Distance 100 mm
Front Diameter 28 mm
Rear Effective Diameter 10 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.1 m - ∞
Back Focal Length 10.2 mm in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Dimensions 43 × 43 × 38.3 mm
Shooting Range at MOD 200.8(H)×150.8(V)
TV Distortion (%) 0.5
Angle of View @ 1/1.8″ 71.7° × 57.1°
Angle of View @ 1/2″ 65.2° × 51.3°
Angle of View @ 2/3″ 82.4° × 66.9°
